Rev. 0.00
3-49
STAR Line Mode Command Specifications
,
This command prints bit images with only the data count determined by n1.
The amount of data that can be printed in one line is limited to the total dot count. Data that exceeds
the total dot count or the right margin is ignored.
See each printer’s product specifications manual for details regarding the total dot count.
After printing the bit image, the printer automatically returns to the character mode.

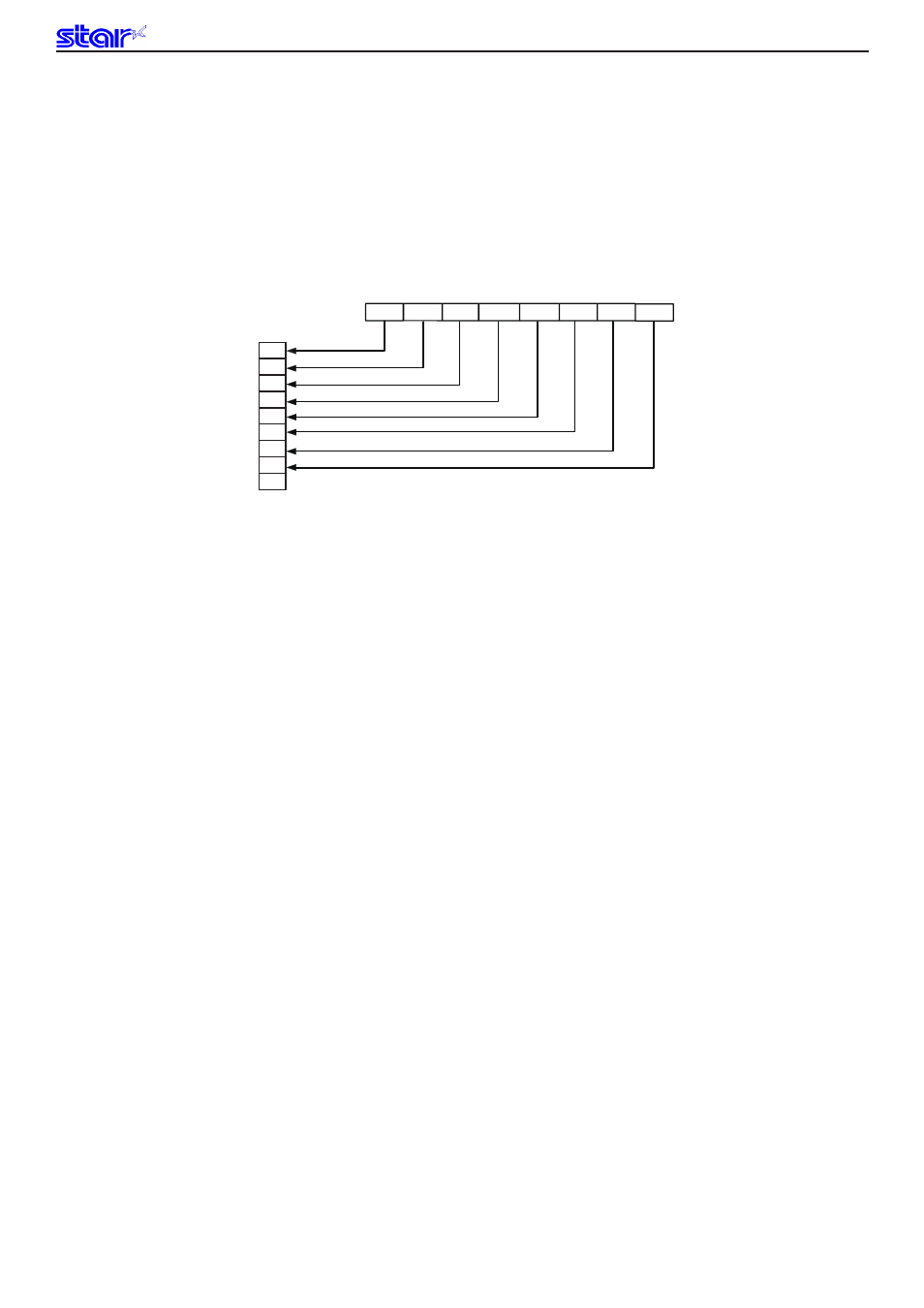

The following drawing shows the relationship of the print head needle wires and the data.
1 ●
2 ●
3 ●
4 ●
5
●
6 ●
7 ●
8 ●
9 ●
b8 b7 b6 b5 b4 b3 b2 b1
Pin No
(Not Used)
Upper Lower
