Rev. 0.00
3-118
STAR LIne Mode Command Specifications
3-7) Mark Command Details
This command is specialized to mark sheet printing for lotteries. This command can print lines.

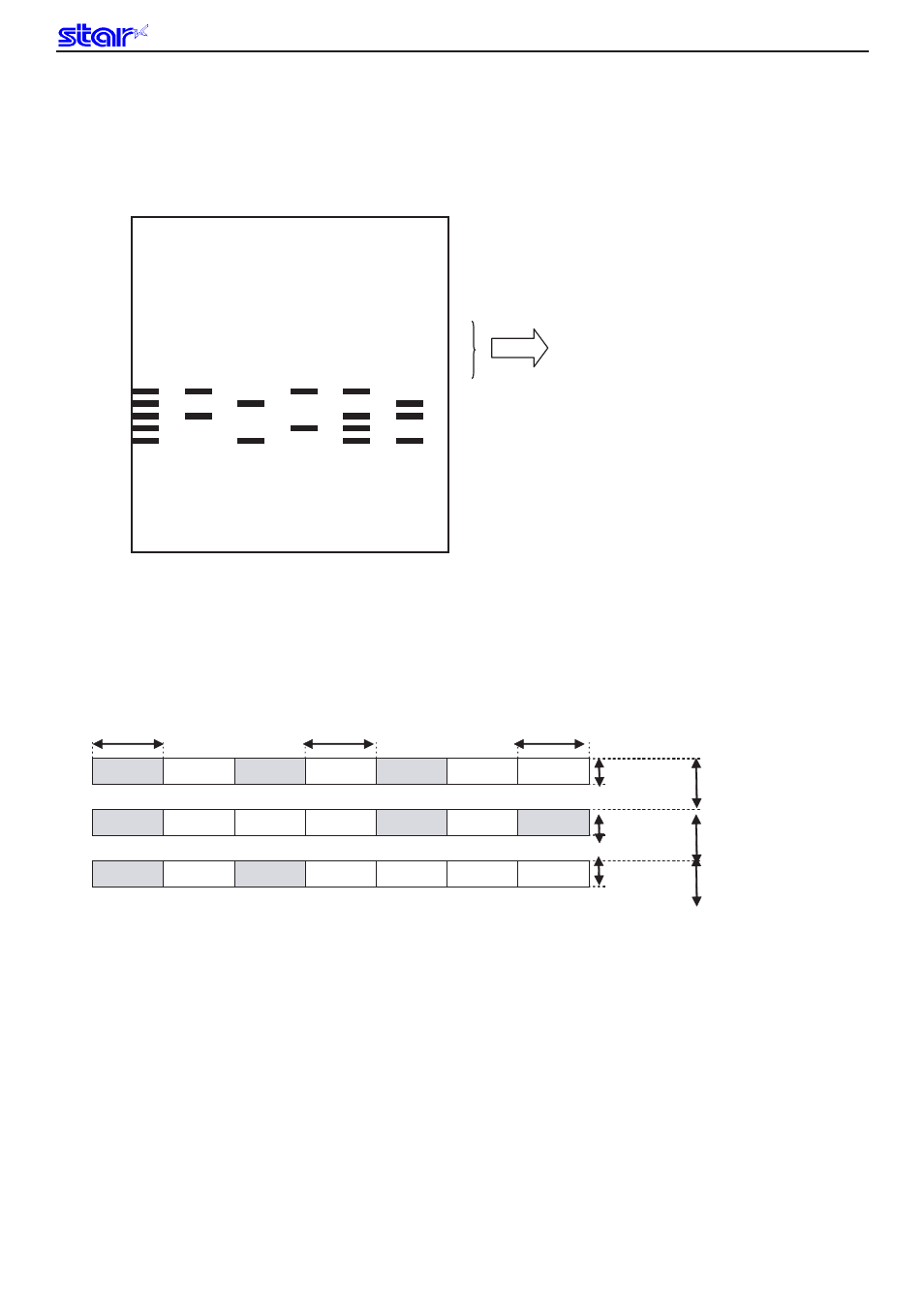

Print Sample
Command Transmission Example
• Mark Format
Mark Height h = 10 dots; Mark Line Feed Amount V = 20 dots
Mark number 0: Mark Color c = White; Mark Horizontal Width w = 16 dots
Mark number 1: Mark Color c = Black; Mark Horizontal Width w = 40 dots
Mark number 2: Mark Color c = White; Mark Horizontal Width w = 40 dots
• Transmission Example
(1) Mark Height; Line Feed Amount Setting
* 1 h v (h = “010”, v = “020”)
(2) Color of Each Mark Number, Horizontal Width Setting
* 2 m c w (Mark Number 0 Setting: m = “0”, c = “0”, w = “016”)
* 2 m c w (Mark Number 0 Setting: m = “1”, c = “1”, w = “040”)
* 2 m c w (Mark Number 0 Setting: m = “2”, c = “0”, w = “040”)
(3) Register mark format specified by (1) and (2) in advance to the non-volatile memory.
(It is possible to print a mark without registering in the non-volatile memory.)
* W
(4) Mark Printing
* 0 n m1 m2 m3 m4 m5 m6 m7
(n = “007”, m1 = “1”, m2 = “0”, m3 = “1”, m4 = “0”, m5 = “1”, m6 = “0”, m7 = “2”)
* 0 n m1 m2 m3 m4 m5 m6 m7
(n = “007”, m1 = “1”, m2 = “0”, m3 = “2”, m4 = “0”, m5 = “1”, m6 = “0”, m7 = “1”)
* 0 n m1 m2 m3 m4 m5 m6 m7
(n = “007”, m1 = “1”, m2 = “0”, m3 = “1”, m4 = “0”, m5 = “2”, m6 = “0”, m7 = “2”)
L O T T E R Y 1 0
01 05 32 85 86 50 70 77 08
50 21 42 46 40 12 02 06 78
2003/04/08 STAR Micronics co., ltd .
No. 0304081254896
Mark Printing
Mark 1
Hor. W
Mark 0
Hor. W
Mark 2
Hor. W
Mark 1 Mark 0 Mark 1 Mark 0 Mark 1 Mark 0 Mark 2 Mark height h Mark LF amount v
Mark 1 Mark 0 Mark 2 Mark 0 Mark 1 Mark 0 Mark 1
Mark height h
Mark LF amount v
Mark 1 Mark 0 Mark 1 Mark 0 Mark 2 Mark 0 Mark 2 Mark height h Mark LF amount v
