STAR LIne Mode Command Specifications

3-3-8) Bit Image Graphics

ESC K n1 n2 d1 … dk

[Name] Standard density bit image
[Code]

ASCII

ESC

Hexadecimal

1B 4B

Decimal

[Defined Area]

Thermal

: 1 ≤ {(n1 + n2 x 256) x 3} ≤ printable region

k = (n1 + n2 x 256)
0 ≤ d ≤ 255

Slip

1 ≤ (n1 + n2 x 256) ≤ printable region (total dot count)
k = (n1 + n2 x 256)
0 ≤ d ≤ 255

Validation

1 ≤ (n1 + n2 x 256) ≤ printable region (total dot count)
k = (n1 + n2 x 256)
0 ≤ d ≤ 255

[Initial Value]

Thermal

: -

Slip

: -

Validation

: -

[Function]

Prints bit images using 3 dots wide and 3 dots high per 1 dot of input data.

The following shows the details of data processing with this command.

• When {(n1 + n2 x 256) x 3} exceeds the printable region, only the data in the printing region is

printed.

• When {(n1 + n2 x 256) x 3} exceeds the currently set printable region, only the data in the printing

region is printed.

At this time, all data for the print region is discarded.

• If the current position already exceeds the print region, this command discards all data.

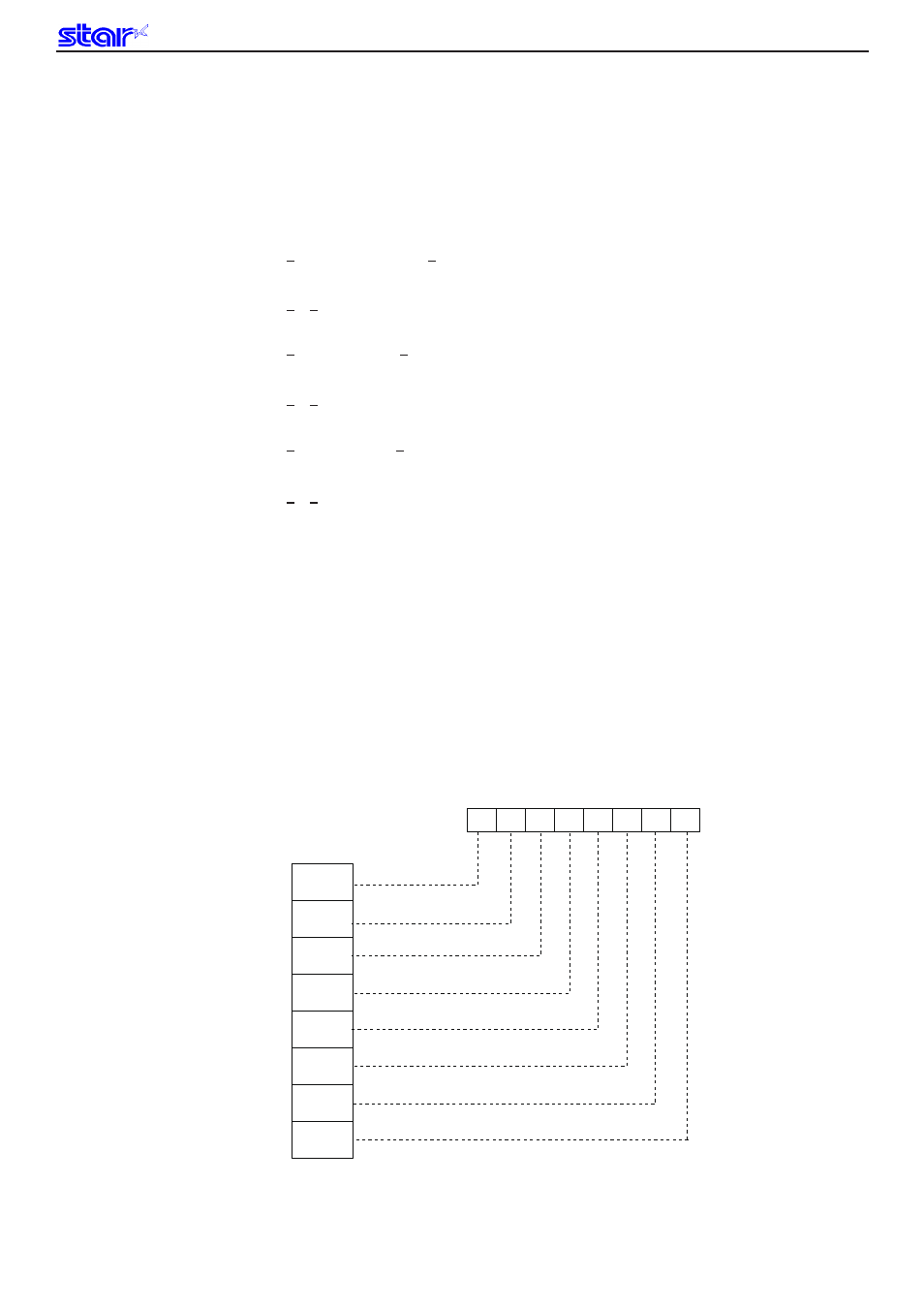

b7 b6 b5 b4

b1 b0

䊶䊶䊶
