2) Simple Auto Logo Function
Preset the simple Auto Logo function, and execute the following operations with the printing cut command under the
existing system as a trigger.
(1) Simple Auto Logo function starts up using the existing system cut command as a trigger.
(2) Center alignment command process
(3) Execute printing of logo 2.
(4) Paper is fed to cutting position, then a partial cut is executed.
(5) Execute printing of logo 1.
(6) Recover position alignment command to setting to before execution of simple Auto Logo
With the simple Auto Logo function the logo number of the logo to print is predetermined.
㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㩷
㩷 㪤 㪘 㪚 㪛 㪦 㪥 㪘 㪣 㪛 㪪 㩷
㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㪁 㩷
㪈㪅㪚㪟㪜㪜㪪㪙㪬㪞㪜㪩㩷㩷㩷㩷㩷㩷㩷㩷㩻㪉㪅㪇㪇㩷
㪉㪅㪚㪦㪢㪜㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩻㪈㪅㪇㪇㩷
㩷
㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㪄㩷
㪫㪦㪫㪘㪣㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩻㪊㪅㪇㪇㩷
********************
MCDONALD’S
********************
1. CHEESEBURGER $2.00
2.COKE $1.00
-----------------------------------
TOTAL $3.00㩷
********************
MCDONALD’S
********************
1.CHEESEBURGER $2.00
2.COKE $1.00
-----------------------------------
TOTAL $3.00㩷
㩷 㩷 㩷 㩷 㩷 Header
Logo1㩷
Logo1㩷
Current System Print Data
Current System
Print Data
Header 㩷
********************
MCDONALD’S 㩷

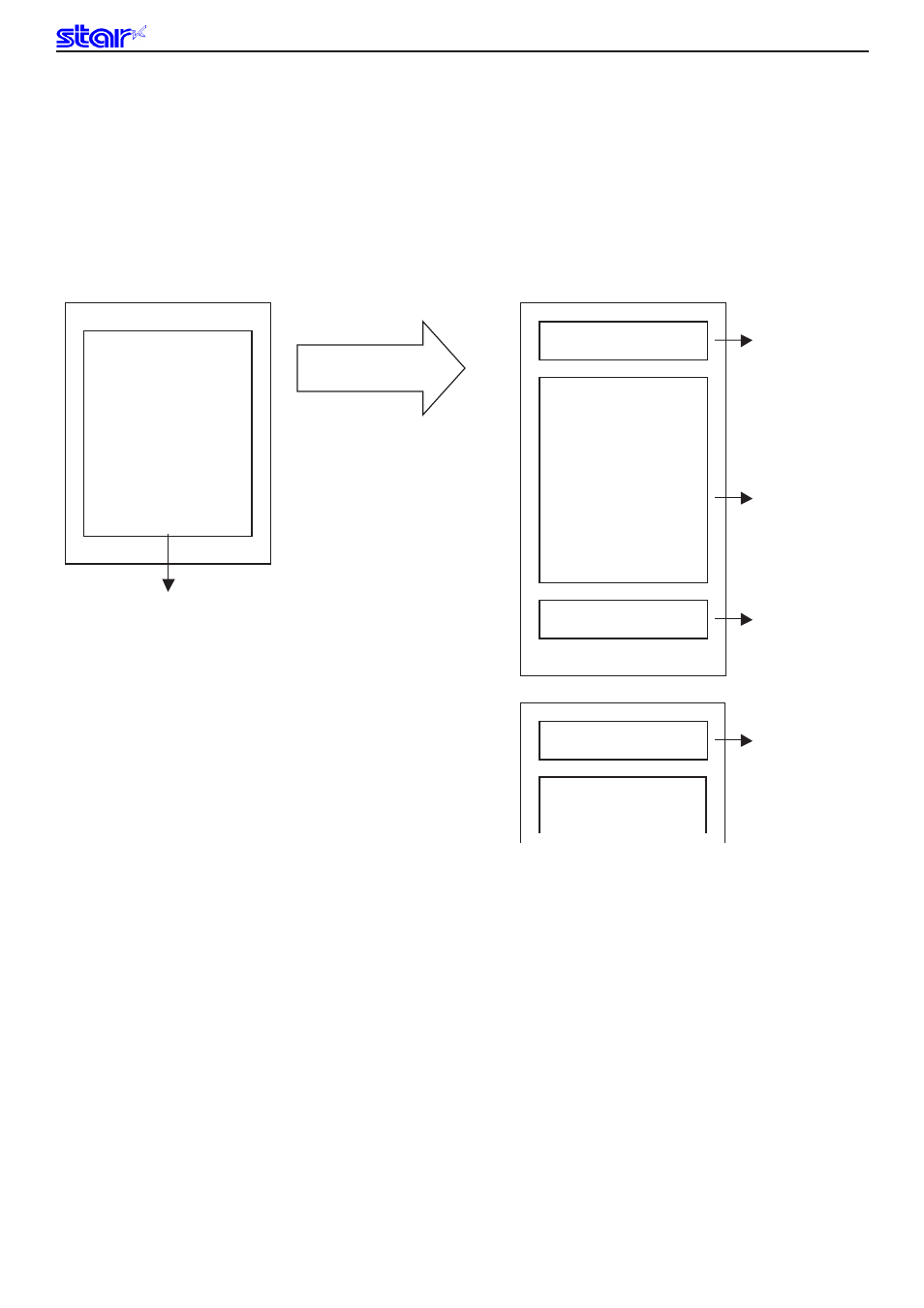

4. Paper is fed to cutting position and
partially cut
5. Logo1 is printed.
6. Returns to position alignment
Footer 㩷 Logo2㩷
1. AutoLogo triggered by cut command
2. Center alignment
3. Logo2 is printed
