6.5 Replacing Parts
353

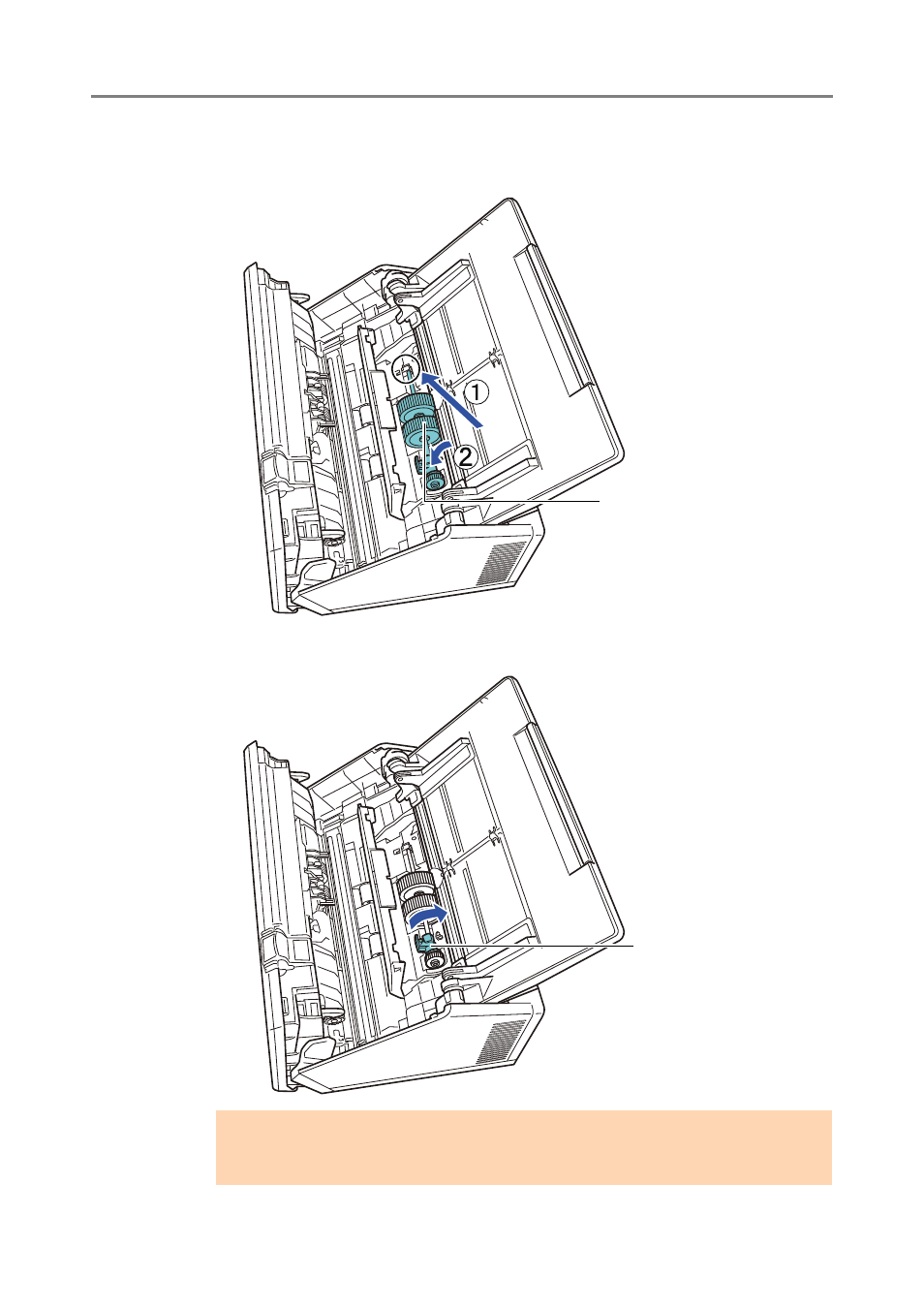

4. Install a new pick roller on the scanner.
Insert the left end of the shaft into the slot of the scanner, and lower the other
end gradually.
5. Rotate the lock release tab on the shaft in the direction of the arrow.
ATTENTION
Make sure that the pick roller is installed properly. Otherwise, paper jams or other
feeding errors may occur.
Pick roller
Lock release tab
