HEIDENHAIN TNC 410 ISO Programming - Manual (Page 440)

414 12 MOD Functions
1
2
.15 En
te
r the A
x
is T
ra
v
erse
Limit
s
, D
a
tu
m Di
sp
la
y
12.15 Enter the Axis Traverse Limits,
Datum Display
Function
The AXIS LIMIT MOD function allows you to set limits to axis traverse
within the machine's actual working envelope.
Possible application: Protecting an indexing fixture against tool
collision.

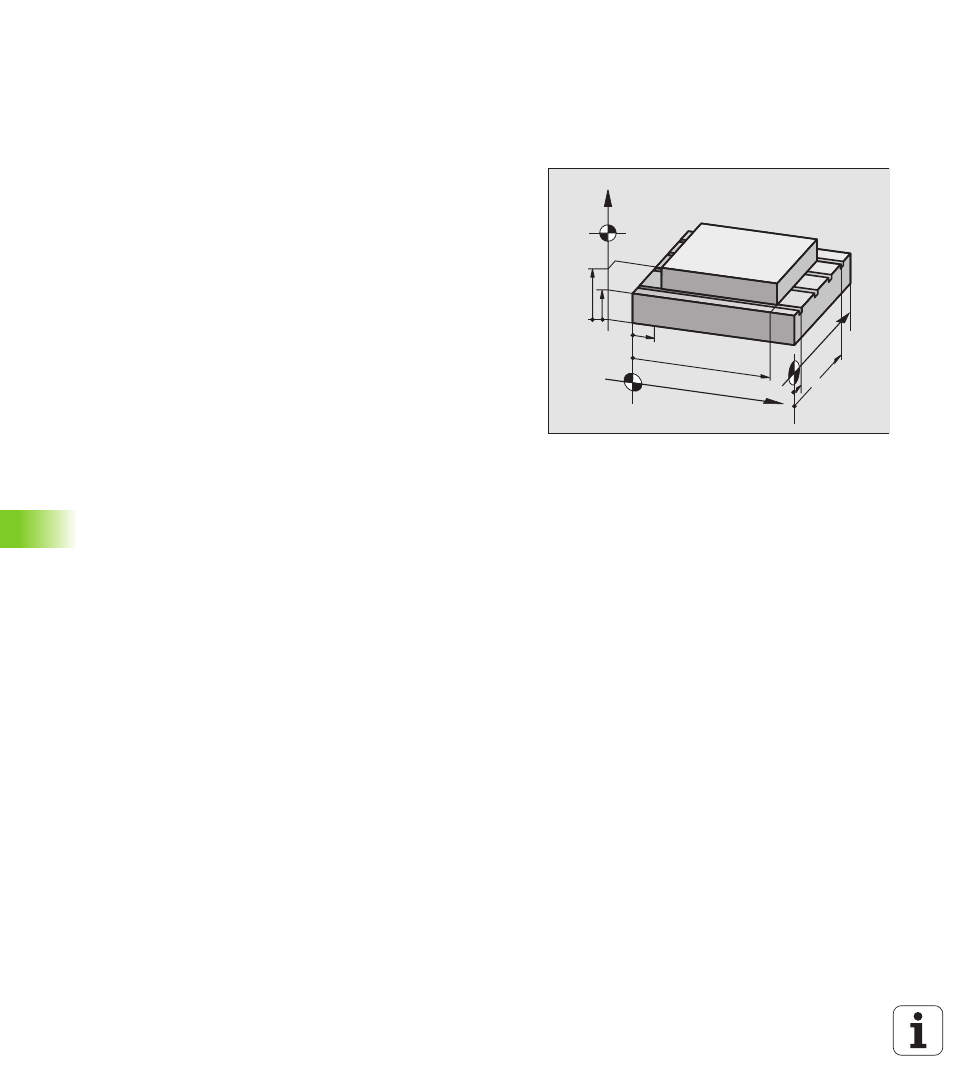

The maximum range of traverse of the machine tool is defined by
software limit switches. This range can be additionally limited through
the TRAVERSE RANGE MOD function. With this function, you can
enter the maximum and minimum traverse positions for each axis,
referenced to the machine datum. If several traverse ranges are
possible on your machine, you can set the limits for each range
separately using the soft keys TRAVERSE RANGE (1) to TRAVERSE
RANGE (3).
Working without additional traverse limits
To allow a machine axis to use its full range of traverse, enter the
maximum traverse of the TNC (+/- 99999 mm) as the TRAVERSE
RANGE.
Z
Y
X
Z
min
Z
max
X
min Y
max
Y
min X
max
