104 5 Programming: Tools
5.2 T
o
ol D
a
ta
Editing tool tables
The tool table that is active during execution of the
part program is designated as TOOL.T. You can only
edit TOOL.T in one of the machine operating
modes. Other tool tables that are used for archiving
or test runs are given different file names with the
extension .T.
To open the tool table TOOL.T:
U U U U Select any machine operating mode.
U U U U To select the tool table, press the
TOOL TABLE soft key.
U U U U Set the EDIT soft key to ON.
To open any other tool table:
U U U U Select the Programming and Editing mode of
operation.
U U U U Call the file manager.
U U U U To select the file type, press the
SELECT TYPE soft key.
U U U U To show type .T files, press the
SHOW .T soft key.
U U U U Select a file or enter a new file
name. Conclude your entry with the
ENT key or the SELECT soft key.

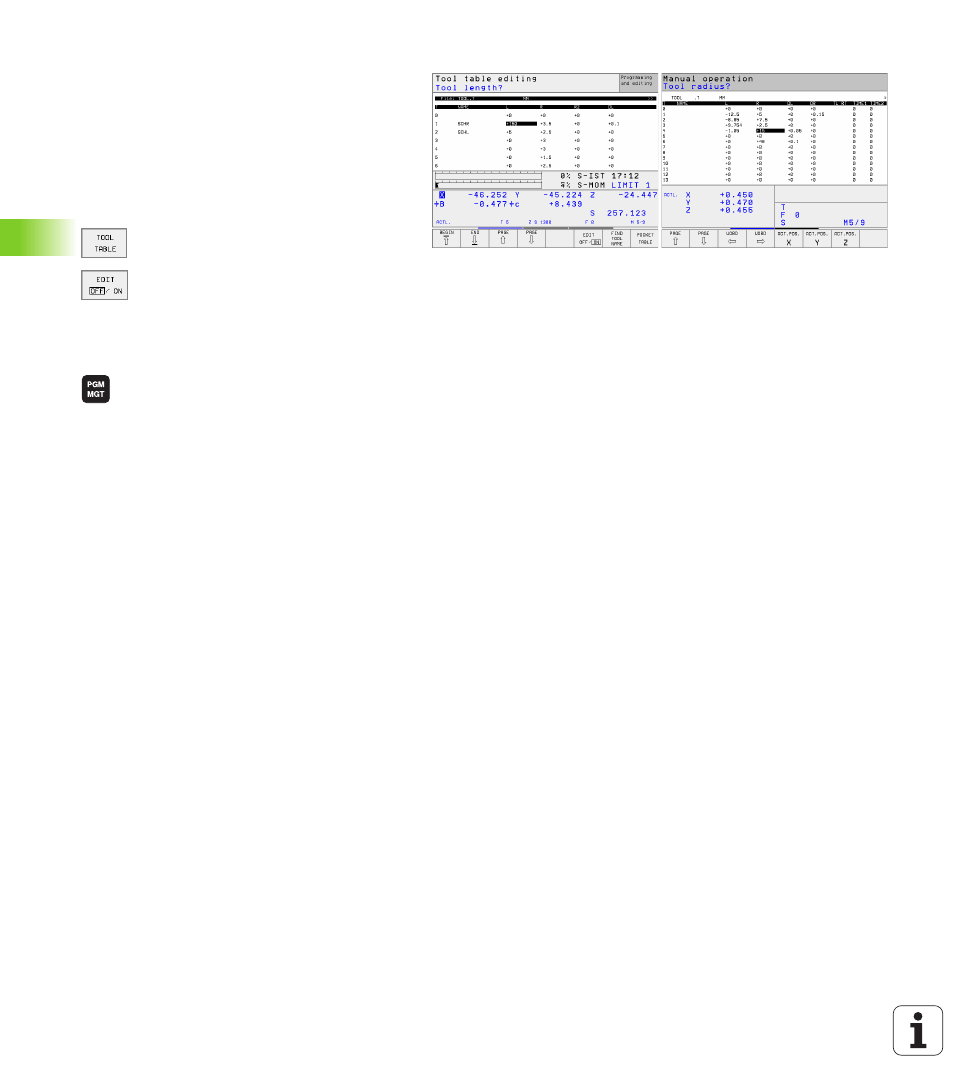

When you have opened the tool table, you can edit
the tool data by moving the cursor to the desired
position in the table with the arrow keys or the soft
keys. You can overwrite the stored values, or enter
new values at any position. The available editing
functions are illustrated in the table below.
If the TNC cannot show all positions in the tool table
in one screen page, the highlight bar at the top of the
table will display the symbol “>>” or “<<”.
