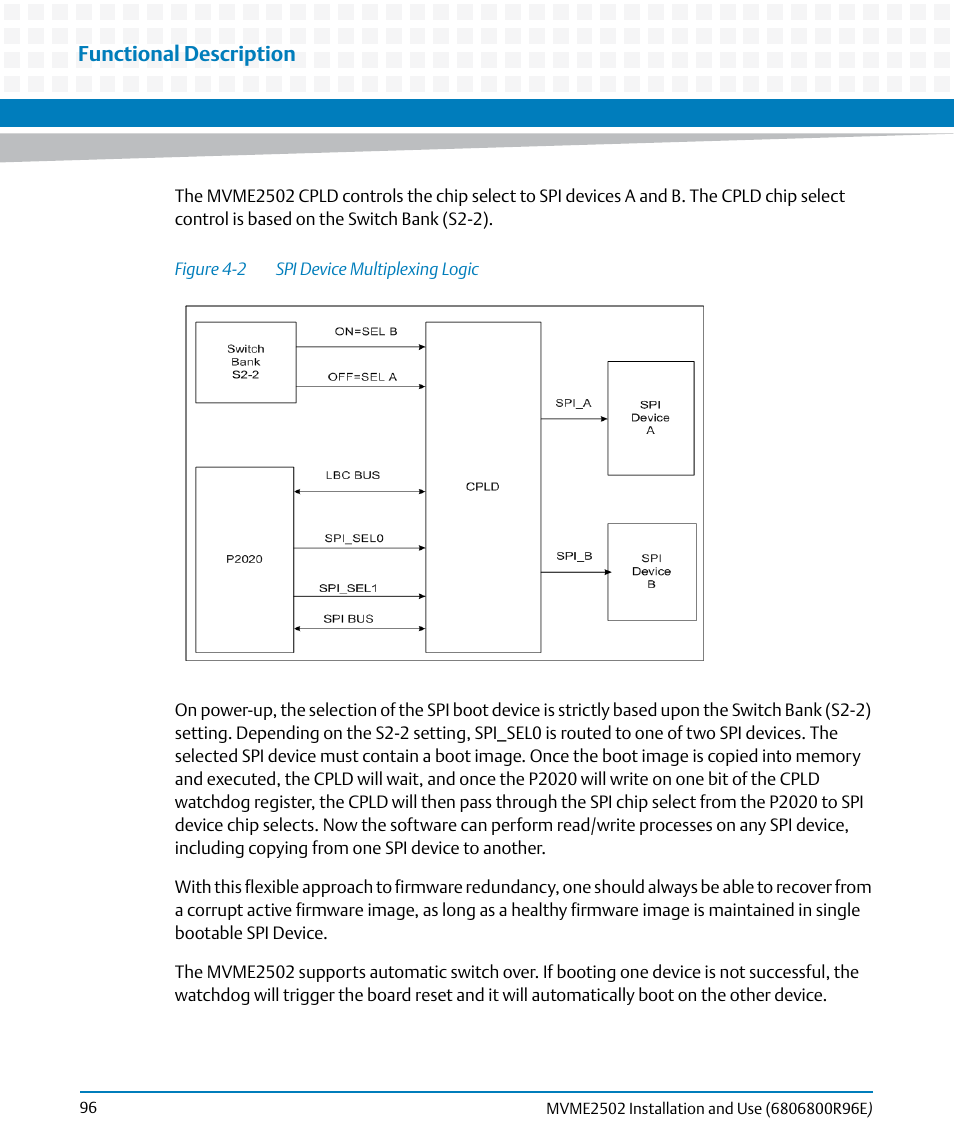

Figure 4-2, Spi device multiplexing logic, Functional description – Artesyn MVME2502 Installation and Use (April 2015) User Manual

Page 96

Figure 4-2, Spi device multiplexing logic, Functional description | Artesyn MVME2502 Installation and Use (April 2015) User Manual | Page 96 / 166

Figure 4-2, Spi device multiplexing logic, Functional description | Artesyn MVME2502 Installation and Use (April 2015) User Manual | Page 96 / 166
