High Resolution Mode
The encoder high resolution mode can be used for fine tuning luminaire parameters.
To turn on high resolution mode:
Step 1. At front panel, select desired encoder function (Preset, Color, Beam, etc.) by pressing its button.
Step 2. Double-click [Slow] button to latch high resolution mode on (LED will flash when enabled).
Step 3. Turn encoders to fine tune luminaire parameters.
Step 4. Double-click [Slow] button again to turn high resolution mode off.
To use high resolution "quick adjust" mode:
Step 1. At front panel, select desired encoder function (Preset, Color, Beam, etc.) by pressing its button.
Step 2. Press and hold down [Slow] button, while at the same time turning encoders. Adjustments to parameters
will be high resolution as long as [Slow] button is held.
This mode is also useful when controlling media server attributes.

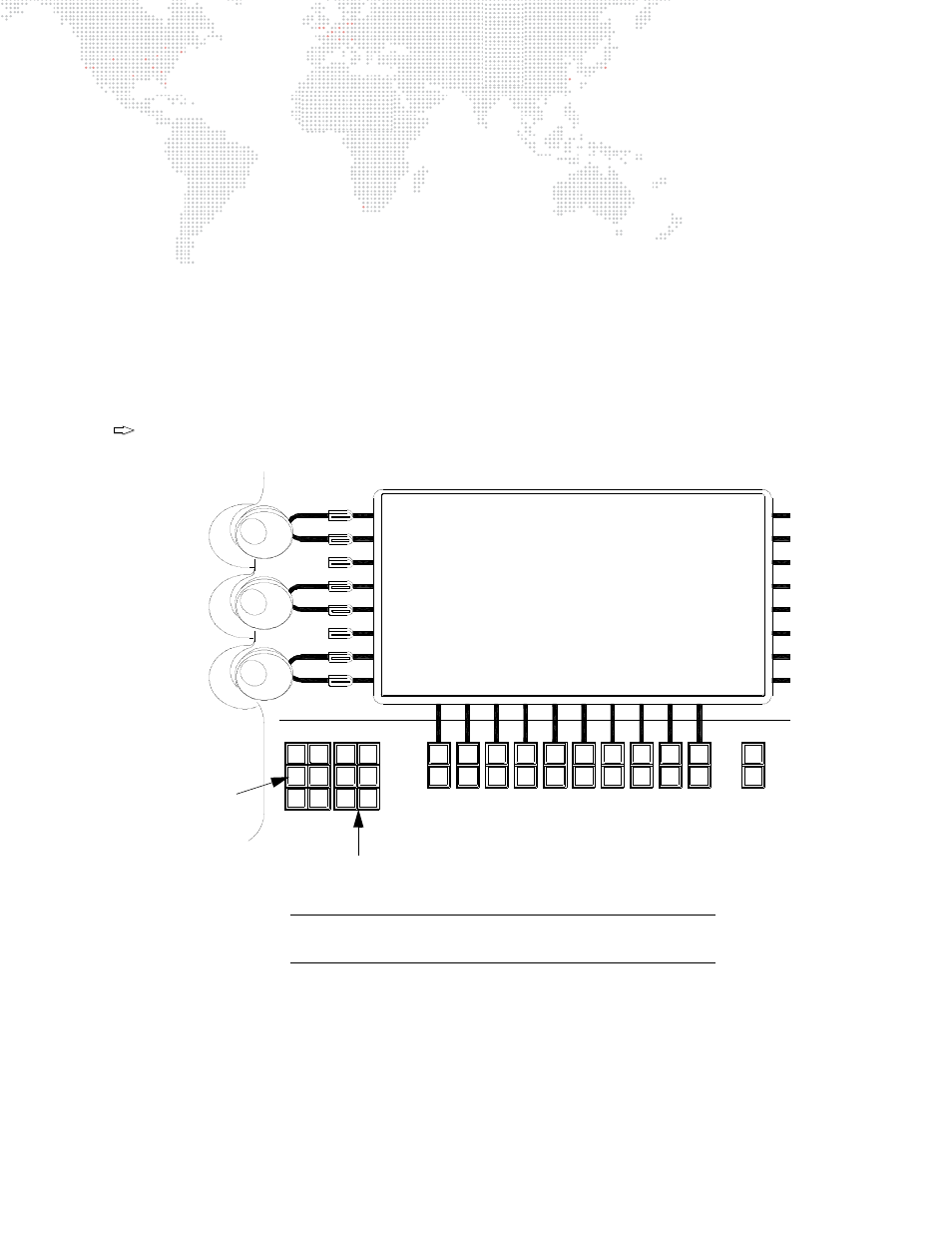

Figure 3-5: Slow Button
Tip
1 2 4 3 5 8 6 7 9 10
11 12 14 13 15 18 16 17 19 20
Fan Effect Frame Image
Slow 3D Beam
Shift Grid Dynam Color
Bank
Func
Slow
Button
Function Buttons
(Image, Beam, Color, etc.)
Note: The V676 console is shown in this example, however,
these buttons are found on all Vx76 console front panels.
