VX76 SOFTWARE USER MANUAL 41
Plan View Layouts
The Plan View can be displayed in either a 2D or 3D layout, or custom layouts may be created.
2D/3D Layouts
The Plan View includes two pre-configured layouts which will display the fixtures according to either 2D or 3D data.
(The 2D Layout is the default.)
To change layout:
Step 1. At Plan View, press

Layout

.
Step 2. At layout selection menu, select new layout. (If custom layouts have been created, these will be included in
the list.)
Custom Layouts
Custom layouts can be added to the Plan View beyond the included 2D and 3D layouts.
Guidelines:
+ Each custom layout can have its own settings.
+ Fixtures may be hidden from custom layouts as desired.
+ When creating a new layout, the console starts with the current default 2D Layout. This means that if the 2D
Layout has been changed, then it will be reflected at the starting point of the new custom layout.
+ If a new fixture is patched on a custom layout, the fixture will be hidden on any other custom layout that has
hidden fixtures. In other words, it will only be visible on the layout in which it is patched and on any custom
layouts that do not hide any fixtures.
+ Manipulating layouts places the console in Patch Edit mode.

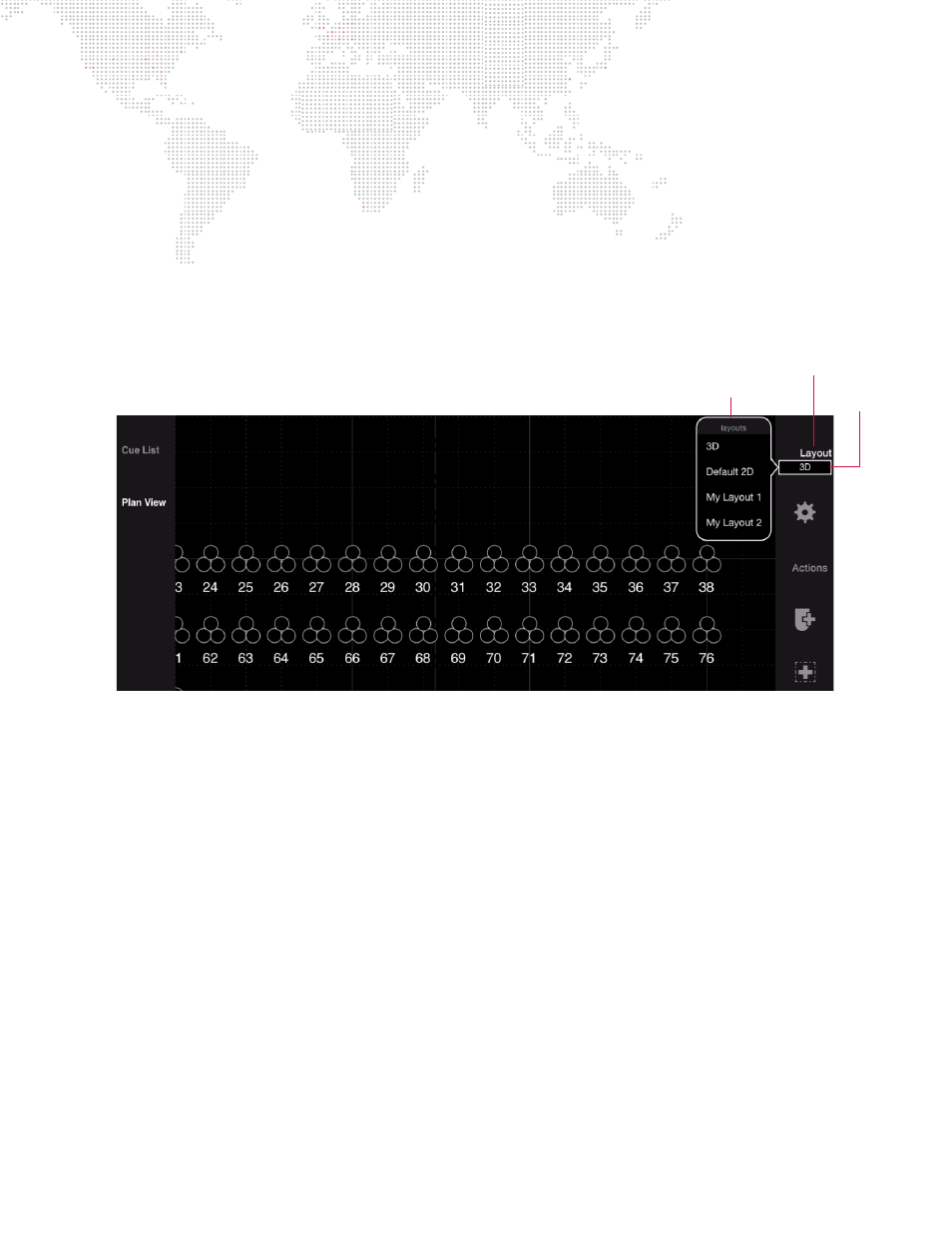

Layout Button
Layout Selection Menu Current
Layout
