VX76 SOFTWARE USER MANUAL 229

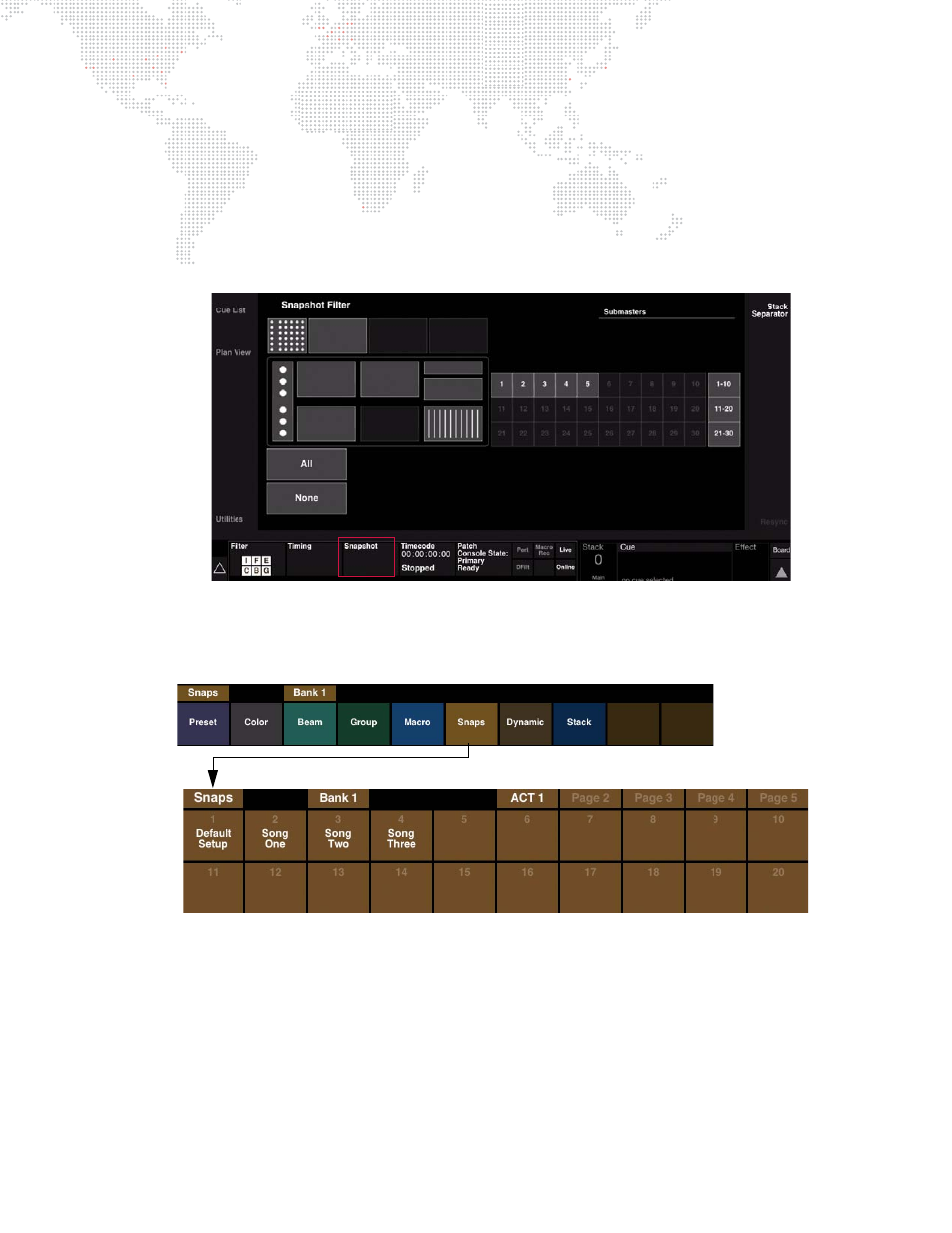

Storing Snapshots
Snapshots are stored in the Snapshots palette banks and can be accessed on any of the palettes just as Presets,
Colors, Beams, Groups, Macros, and Effects or from the keypad. For instructions on using the palettes, refer to the
"Palettes" chapter on page 103 .
Store a snapshot using the palette:
Step 1. Configure console as required.
Step 2. At central touchscreen, press

Snapshot

button. Snapshot Filter will open.
Step 3. At Snapshot Filter, select console areas to be snapshot. (They will be highlighted in gray.)
Step 4. At palettes, select

Snaps

.
Step 5. Press and hold [Store] while pressing

Snapshot Palette Button

. Snap shot will be stored in the palette.
Snapshot Palette Buttons
