Patch Fixtures in Plan View
An Add Fixture icon is available in the Plan View while patch is enabled. This feature provides an alternate method for
patching fixtures that sets the 2D and/or 3D location when the fixture is placed.
To patch a fixture using the Add Fixture icon:
Step
1. Make sure patch is enabled. (Refer to
"Enabling/Disabling Patch Editing"
Step
2. Press Add Fixture icon. (It will highlight.)
Step
3. Touch within the Plan View area to place fixture (at the touched location). The placement icon will remain to
show the position of the next fixture patched from the command line.
Shortcut:
Pressing and holding [Option] while placing the fixture will patch another fixture of the same type with the next
channel number and DMX address.
Edit Fixture From Plan View
With Patch enabled, double-click a fixture to bring up the edit dialog.

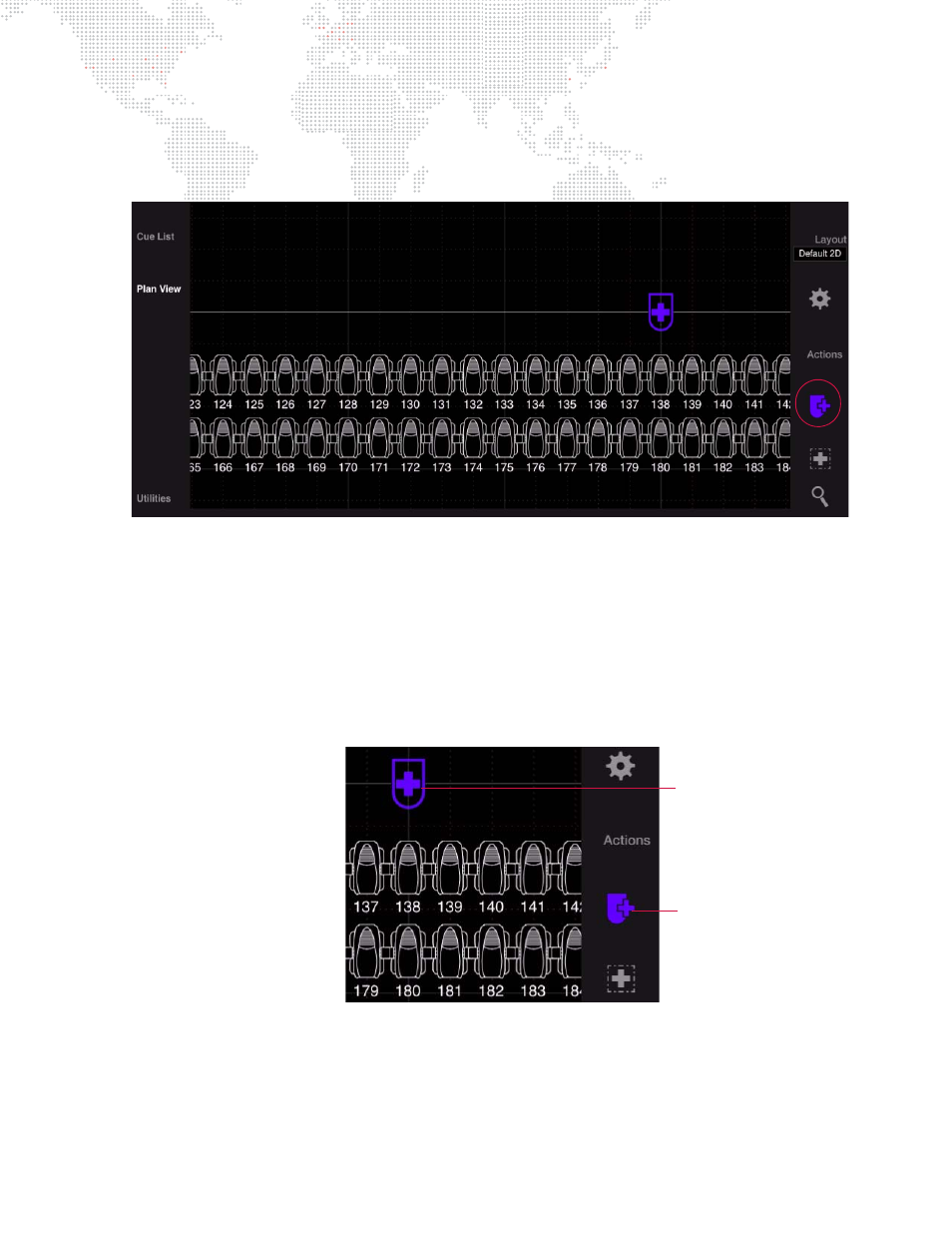

"Add Fixture" Icon
Placement Icon
