Recall a Beam:
Step 1. Select required channels (only selected channels that have data stored in that Beam will be affected).
Step 2. Press [Beam] [n] [Enter] (where n is the discrete Beam number).

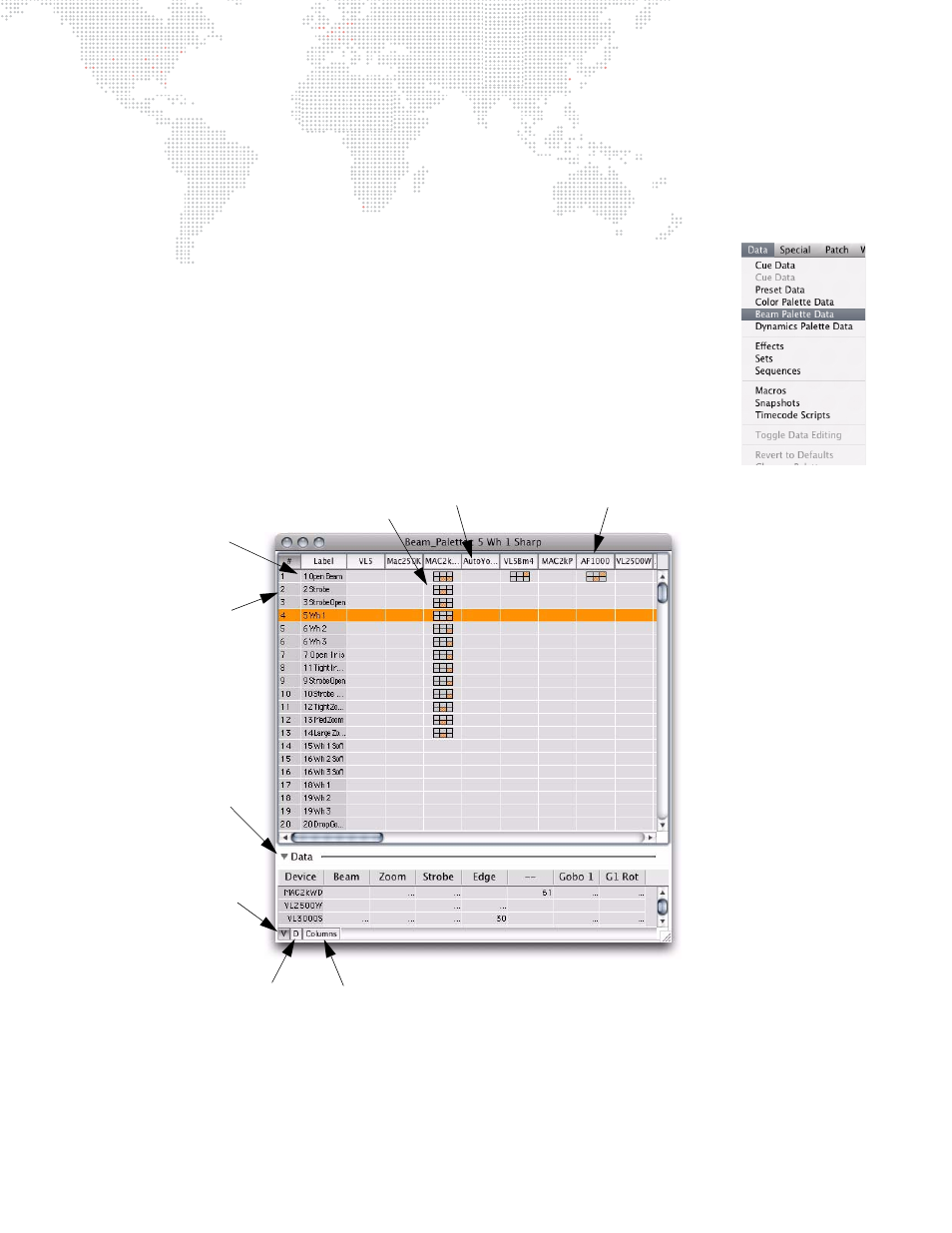

Beam Palette Data Window
Beam data can be viewed in the Beam Palette Data window.
The top portion of the window shows the current Beams, along with all associated filters which
have been stored into its palette. By selecting a single Beam and clicking on the Data drop-down
window button, all of its parameter data can be viewed.
The Value (V) button will display the numeric value which has been stored into each parameter.
The Dynamic (D) will display any associated dynamic state information. The V and D toggle
buttons allow you to display one or both types of information in the window.
Open Beam Palette Data window:
+ At Data menu, palette Beam Palette Data.
* Refer to "Parameter Columns Window" on page 82.
Opens Parameter Columns window *
which is used to choose which
columns appear in window.
Value -
Displays value that
for the parameters when
Dynamic -
Displays dynamic state
information when selected.
Data Drop-Down Window -
Displays data for selected
Beam.
Beam Number
Label
Associated Filters
Applicable Luminaire Types
luminaire is reporting
selected.
Luminaire Name Box -
Select to initiate the copy
function (see next page)
