VX76 SOFTWARE USER MANUAL
129
It is possible to copy data from luminaire type to luminaire type using the Beam Palette Data window. During the copy
process, data will be appropriately mapped to the new luminaire type. Copy and Paste of palette data allows either
Paste Merge or Paste All actions.
+
Merge copies data only where existing data does not exist in the destination and will not over-write existing data.
+
Replace All clears out all of the existing destination data and replaces it with the source data.
To perform a Paste Merge or Paste All action:
Step
1. At top of column, select name box of source luminaire (for example, VL5).
Step
2. At Mac keyboard, press
WIN
+
C
(to copy).
Step
3. At top of column, selected name box of destination luminaire (for example, VL5Arc).
Step
4. Press
WIN
+
P
(to paste).
Step

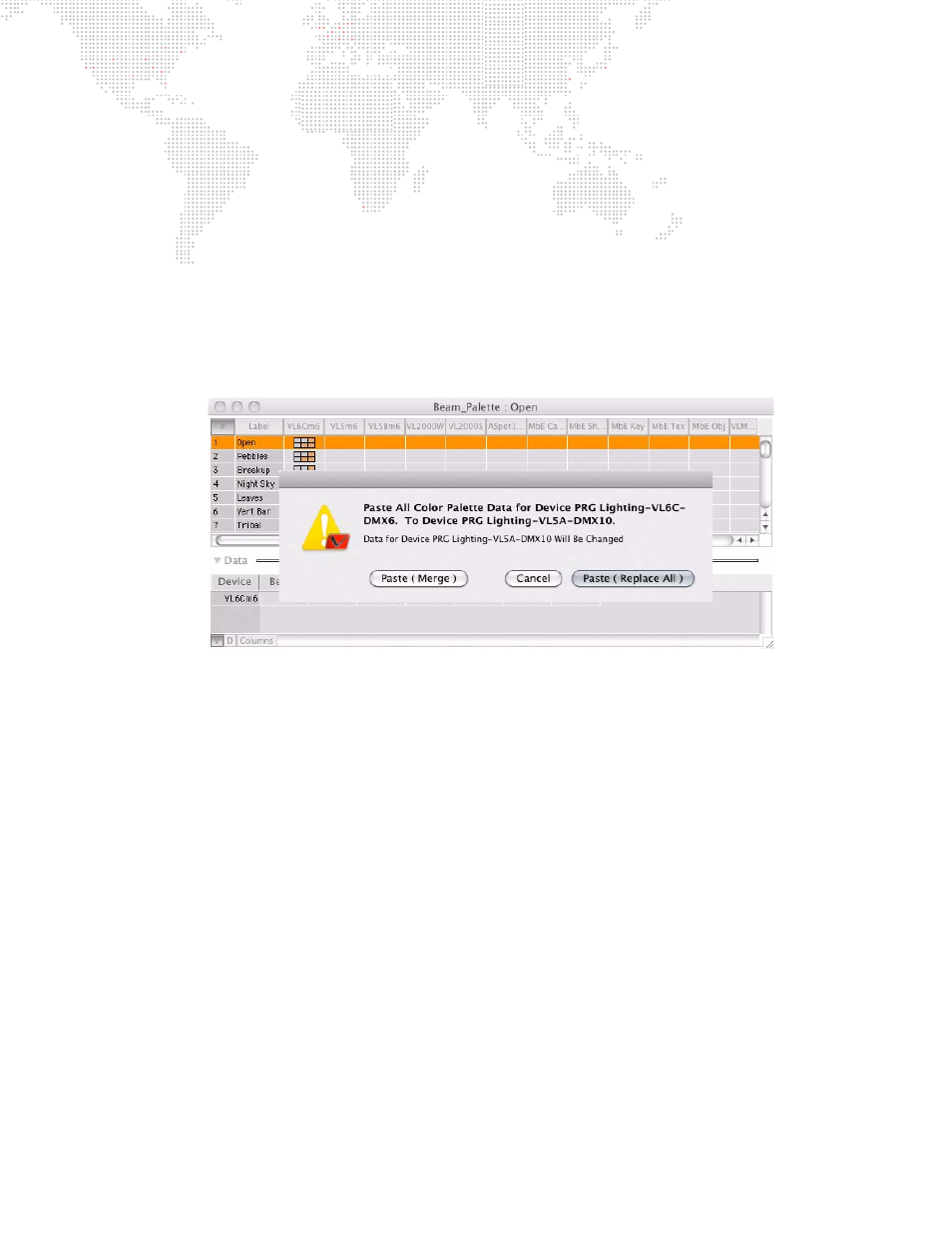

5. At confirmation dialogue, press Paste (Merge) or Paste (Replace All).
