230 VX76 SOFTWARE USER MANUAL
Store a snapshot using keypad:
Step 1. Configure console as required.
Step 2. At central touchscreen, press

Snapshot


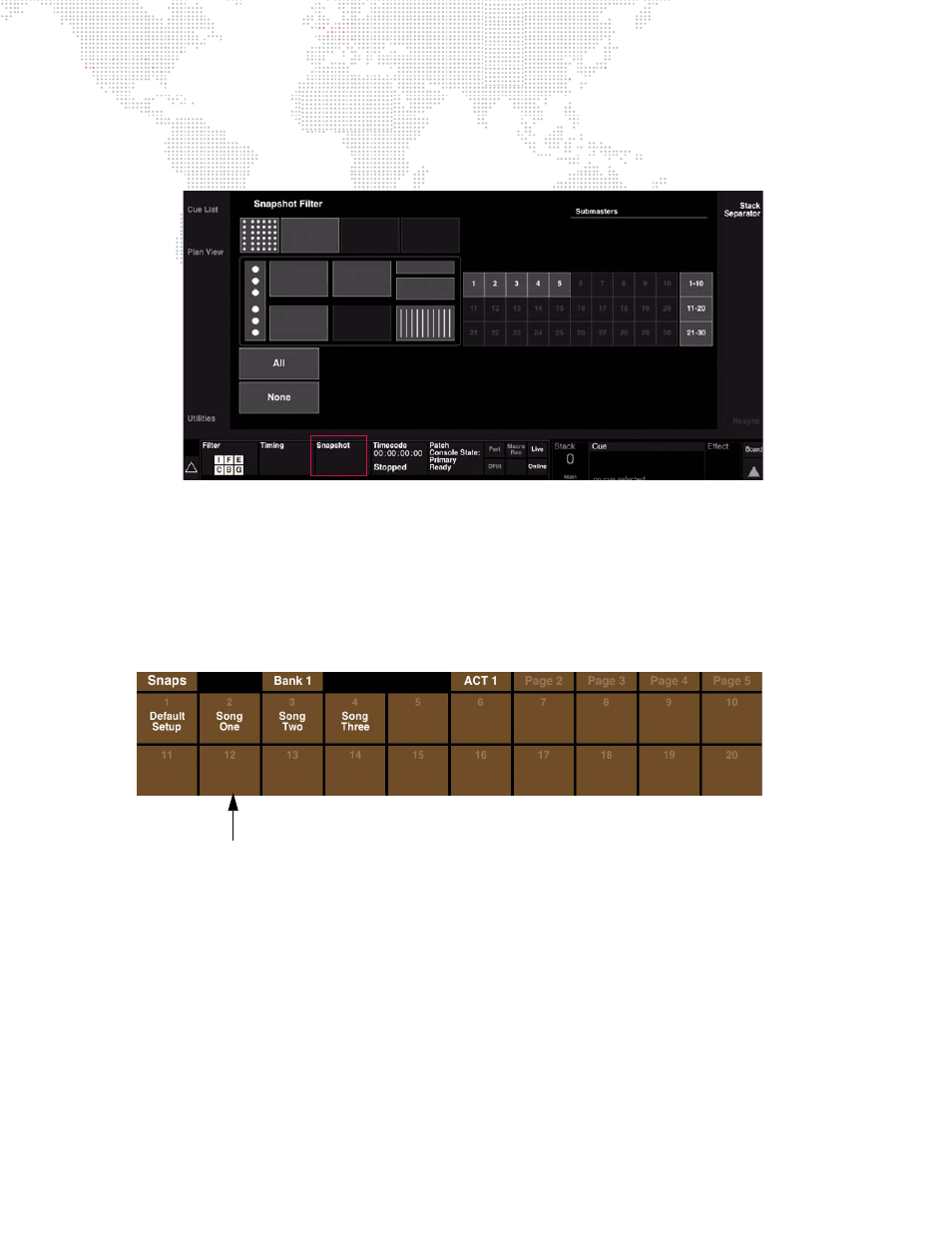

button. Snapshot Filter will open.
Step 3. At Snapshot Filter, select console areas to be snapshot. (They will be highlighted in gray.)
Step 4. Press [Store] [Snap Shot] [n] [Enter].
Label a snapshot:
When labeling, the name can be entered on the console touchscreen keyboard or computer keyboard.
+ [Label] [Snap Shot] [n] [xxxxxx] [Enter/Accept], or
+ Press and hold [Label] while pressing

Snapshot Palette Button

[xxxxxx] [Enter/Accept].
Snapshot Palette Button
