Patching DMX Fixtures
The patch setup screens will be slightly different depending on whether a DMX fixture or conventional fixture is being
patched.
To patch a DMX fixture:
Step

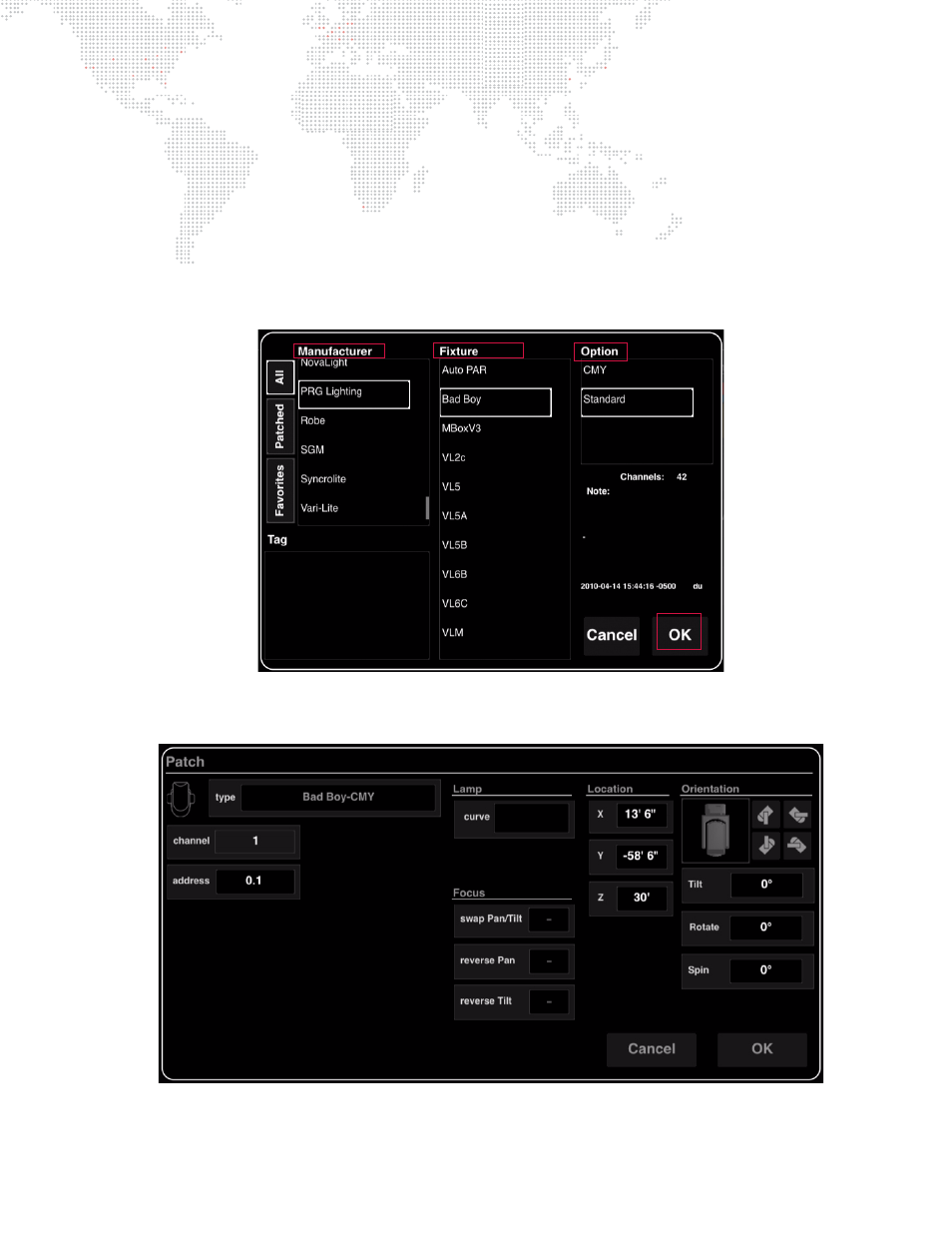

1. At command-line keypad, press [Patch] button. Patch dialog will open in central touchscreen and Patch
Editing mode will be enabled.
Step
2. First select a Manufacturer, then the Fixture type, then an Option (if applicable - not all fixtures will have
options).
Step
3. Press
OK
to go to next setup screen.
Step
4. At fixture Patch screen, set options as required. Touch in field (such as channel number) and use keyboard
to enter values, or use command-line entries.
