VX76 SOFTWARE USER MANUAL 141
Setting Intensity States
Note: Some devices (such as moving mirrors, smoke machines, etc.) may not have lamps, however, they must still
have an intensity value (
active , marked , or zero ) in order to store information in a cue.
The intensity state can be set by the Intensity encoder or
the Intensity State buttons.
The keypad [At] and [Full] commands can also be used to
set intensity using a percentage value of 0-100.
The [At] button is used to enter intensity values:
+ [n] [At] [m] [Enter] - changes the intensity
level of the selected channel to m.
+ [n] [Thru] [q] [At] [m] [Enter] - changes the
intensity level for the selected range of channels to m.
The [Full] button is used to quickly set intensity to 100%.
+ [n] [Full] [Enter] - changes the intensity level
of the selected channel to 100%.
Fader Levels
Since the intensity level plays a large part in storing cues,
it is important to note that intensity levels stored in a cue
are calculated after the contribution of any selected
submasters faders, not before. To simplify the storing of
basic cues, ensure that all faders are set at full (100%)
and the [Black Out] button is not engaged.
Storing Cues
Note: When [Store] is pressed, the keypad defaults to Cue mode. Therefore, the button press is noted as
optional.
Store a basic cue:
Step 1. Using manual controls, set luminaires in desired "stage look."
Step 2. Ensure that luminaires are in required intensity state (refer to "Intensity States" on page 140).
Step 3. Press [Store] [n] [Enter] - current stage look will be stored as specified cue number (n).
Tilt Pan
Intensity
Full Mark
Out Zero
Last Next High
Light Flip
Open
Close

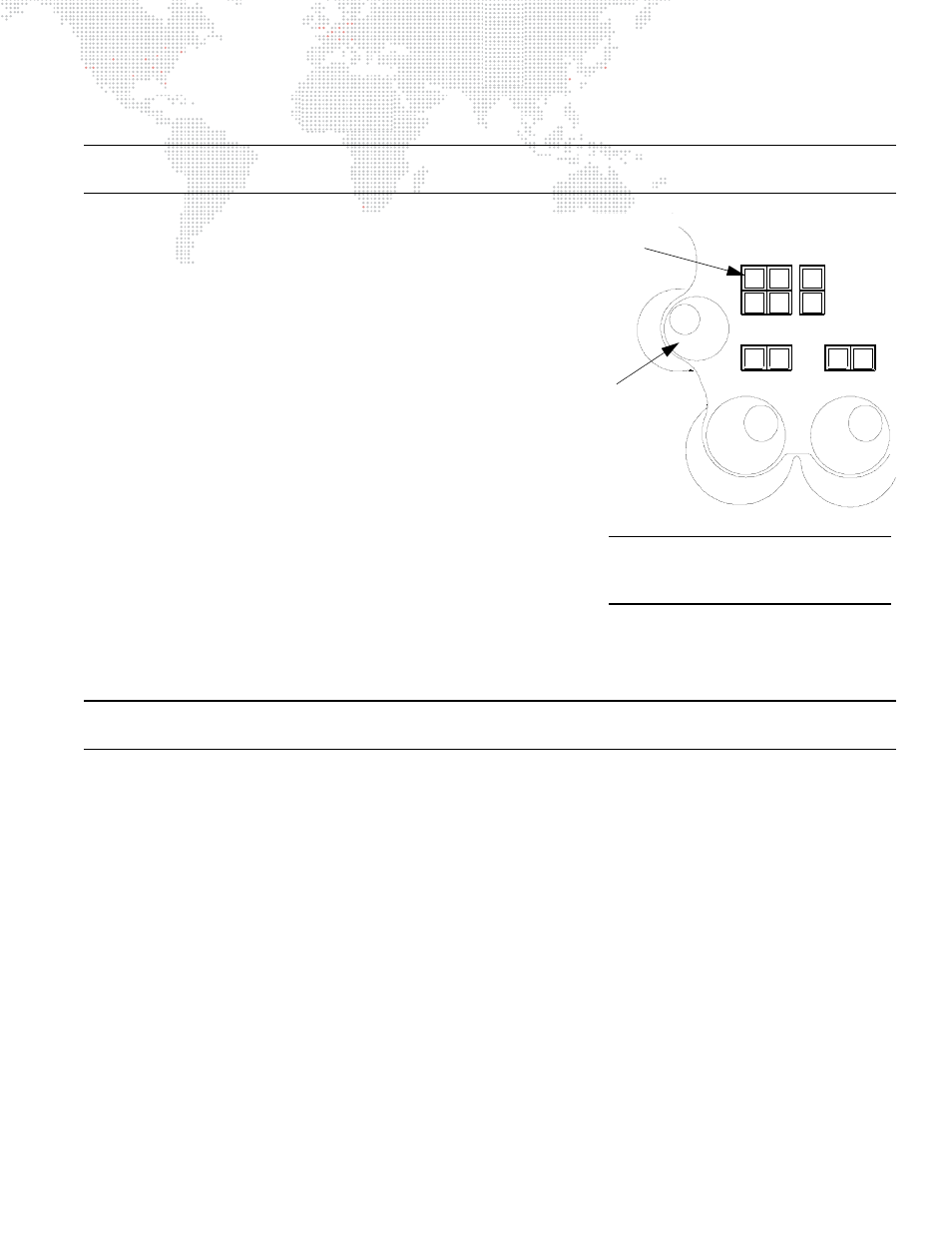

Intensity State Buttons -
Applies an intensity state
to selected luminaire(s).
Intensity Encoder -
Adjusts intensity level for
selected luminaire(s).
Note: The V676 console is shown in this
example, however, these buttons are
found on all Vx76 console front panels.
