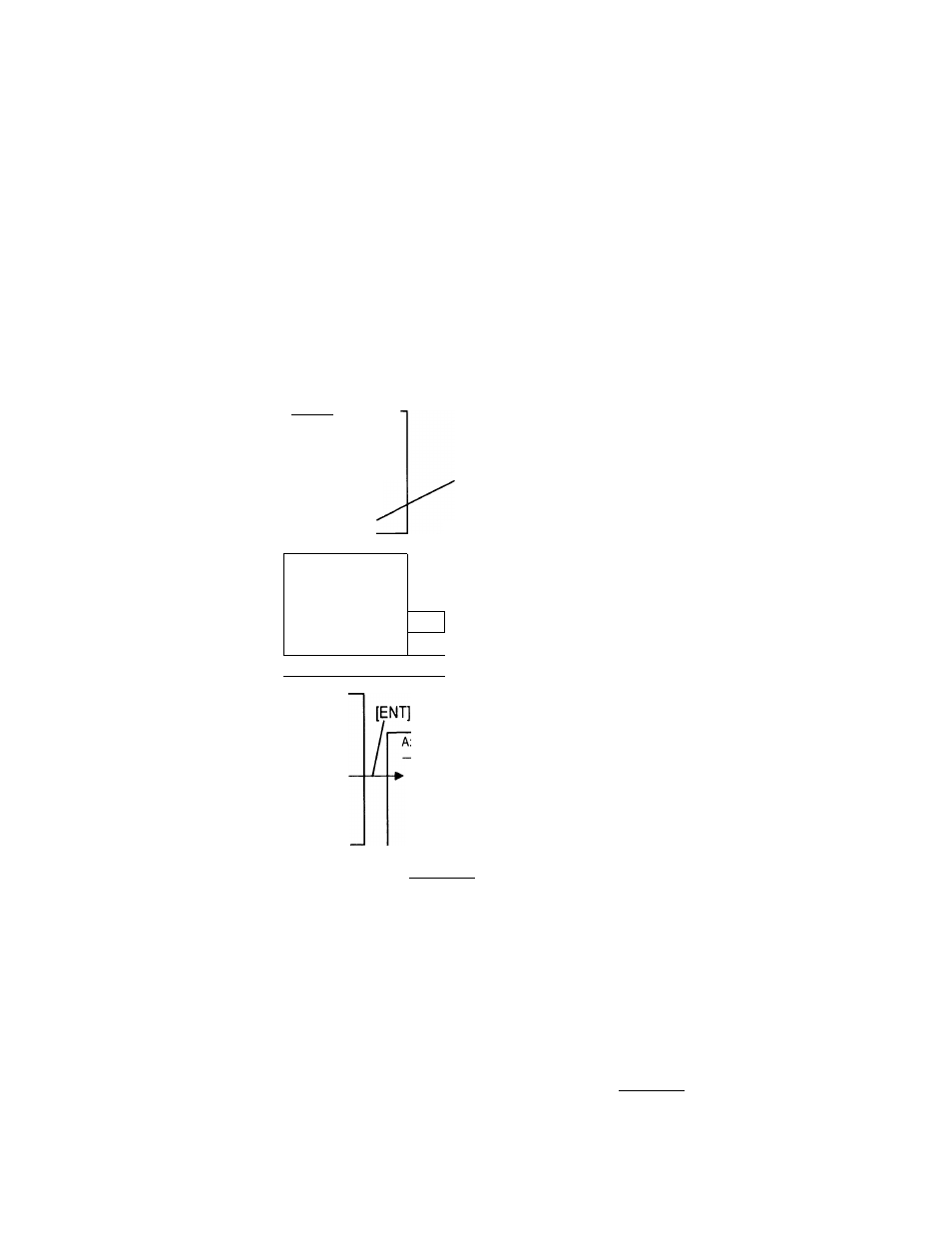

OChange mode flow
[SET] [SEE] [ENT] in the flow chart describe the switch operation, and by pressing the switches
described below, you are allowed to move to the items, which are directed by arrows.-----------►
Measurement
mode
If code is not 111
Setting mode
(Menu display)
FLOW
001.000
m/s
TOTALCNT
00000100
FOR
Key is turned off when you return to the measurement m^e. _
ENTER 111
000
[UP] [SEL] [SET]
" • ~V=
-
Hold down center key for 3 seconds or longer.
* Release the key after the screen has changed.
Keeping on pressing the key returns to measurement
The screen of input code is displayed.
This code is key code to enter setting mode.
* “V****” is software version. There is not software version to
the converter before version V0115.
If code is 111
FLOW
001.000
m/s
TOTAL CNT
00000100
FOR
[CNT] [SET]
1
MENU SELECT
BASIC
DETAILED
[SEL] [ENT]
KENT]
The [CNT]/[SET] key is displayed.
[SET] BASIC; Basic parameters only are displayed.
DETAILED: All parameters are displayed.
Select an item by [SEL] key.
MEAS MODE
EX CURRENT
METER SIZE
EX FREQ
FLOW DIRCTN
PASSWORD
ADDR SET
[UP] [DWN] [ENT]
[SEL]
[UP]/[DWN]
MEAS MODE
MANUAL ZERO
[UP] [DWN] [ENT]
----------- 1 --------
^MEAS MODE
EX CURRENT
METER SIZE
EX FREQ
FLOW DIRCTN
PASSWORD
ADDR SET
[SEL] [ENT]
[SEL]
A:
[ENT] [SEL]
-^MEAS MODE
EX CURRENT
METER SIZE
EX FREQ
FLOW DIRCTN
PASSWORD
ADDR SET
[SEL] [ENT]
[ENT]*
N:
->MEAS MODE
-► MANUAL ZERO
N:
[SEL]
N;
>MEAS MODE
MANUAL ZERO
[UP]/'[DWN]
[SEL] [ENT] [SEl
[SEL] [ENTI
[ENT]*
* When the mode shifts to measurement mode from setting mode, confirmation message is displayed.
You can cancel operation then.
-
