Range display
A
N
G
E 1
0 1 0
0
m /
■v:
j
Unit: Displayed right aligned (up to 7 digits)
Numeric value: Span value of the range used.
Range used
In the range display, the range currently being used is displayed (any one of ranges 1 to 4). The screen
example above shows that range 1 is currently being used.
If multiple ranges have been set, the range displayed is switched automatically as the range used is
changed.
During communication

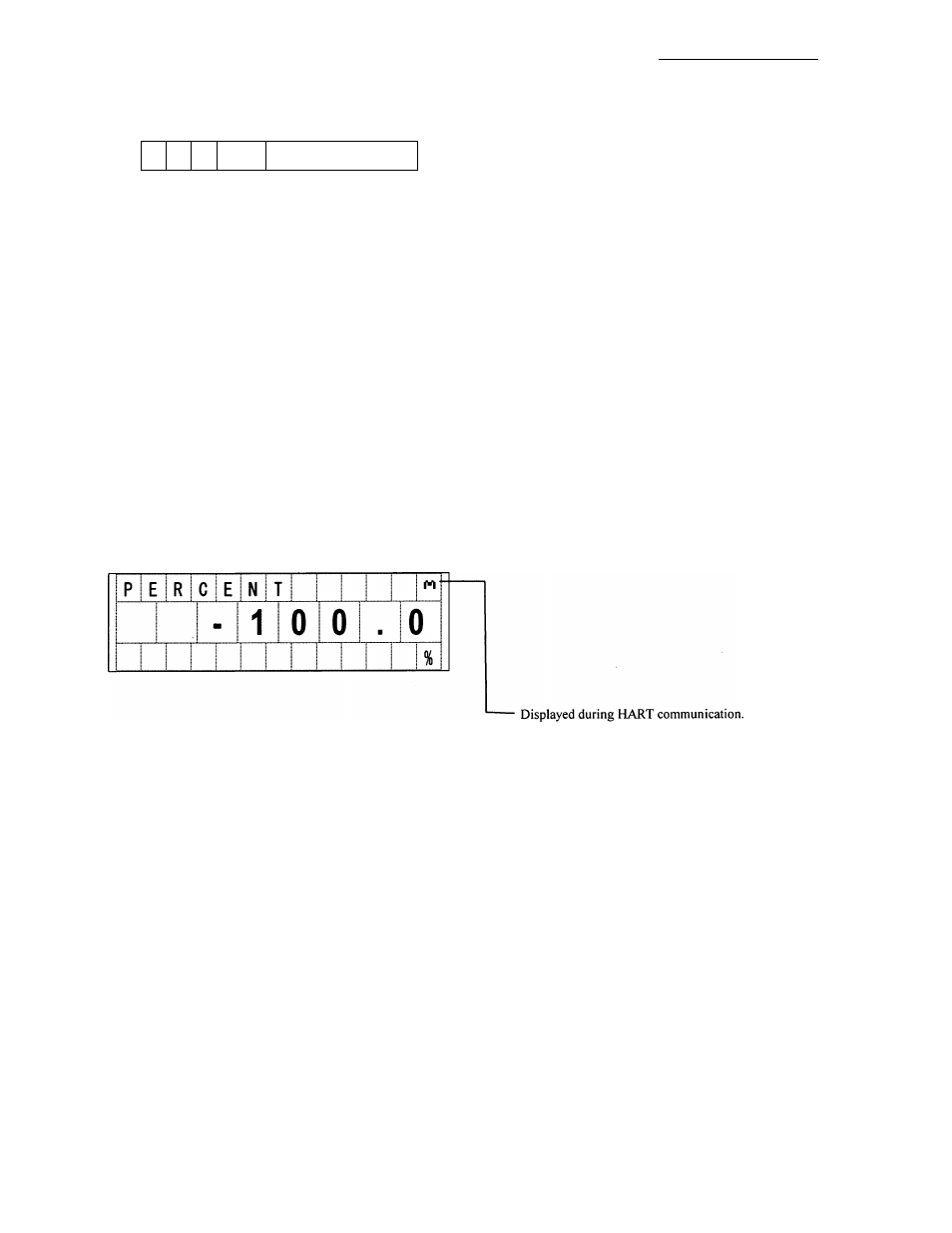

During HART communication, a mark is displayed in the rightmost column of the item name display
field in the main display section. During PRFIBUS communication, nothing is displayed.
-
