TOSHIBA
6,F,8,A0,8,6,9,
3.2 Construction of the terminal blocks
3.2.1 Terminal Block Construction of LF600F Type

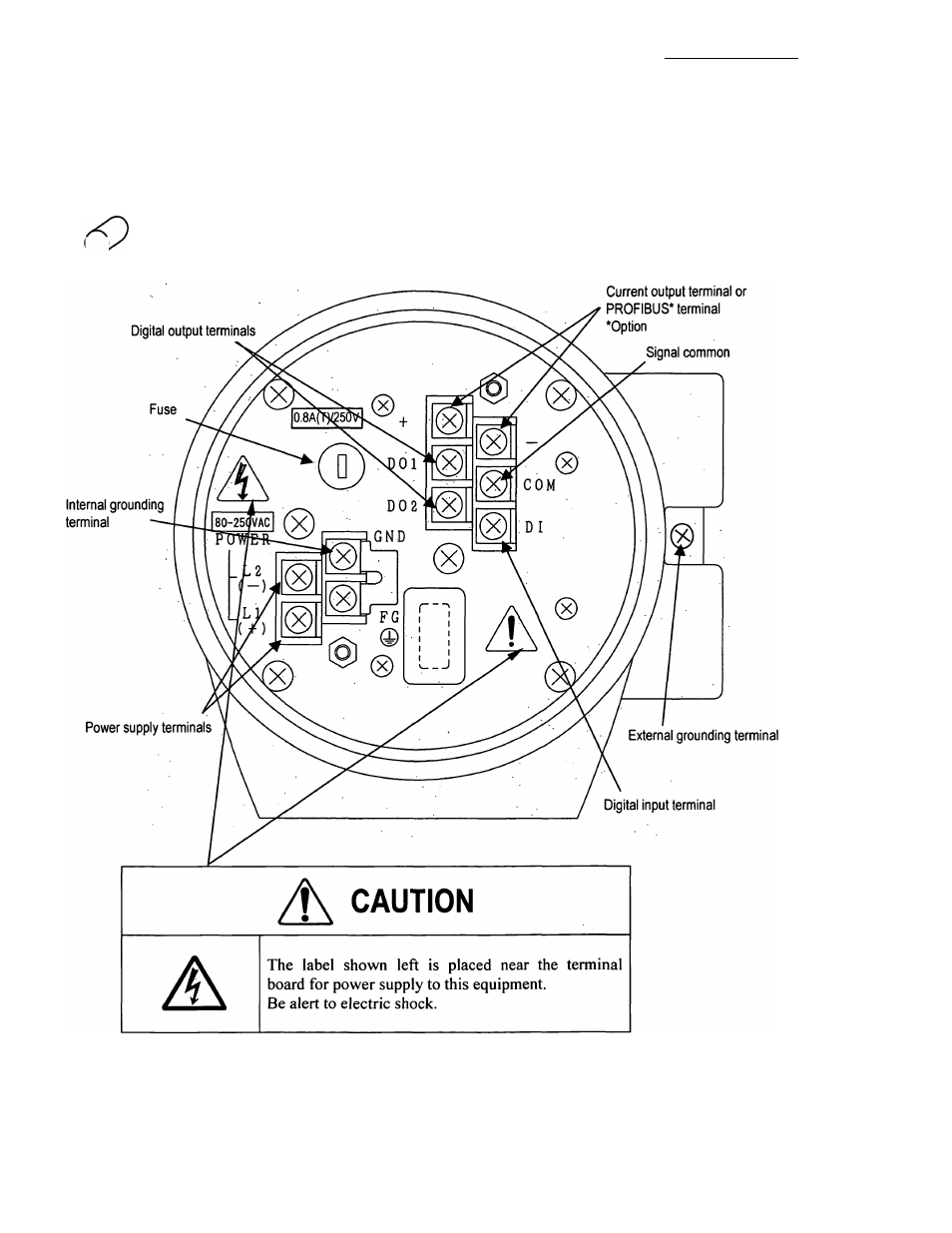

When you remove the terminal block cover shown in the figure "Appearance of LF600F Type", you
can see the converter terminal block as shown below.
igj
LF600F
Figure 3.2.1 Terminal Block Construction of LF600F
-
15
-
