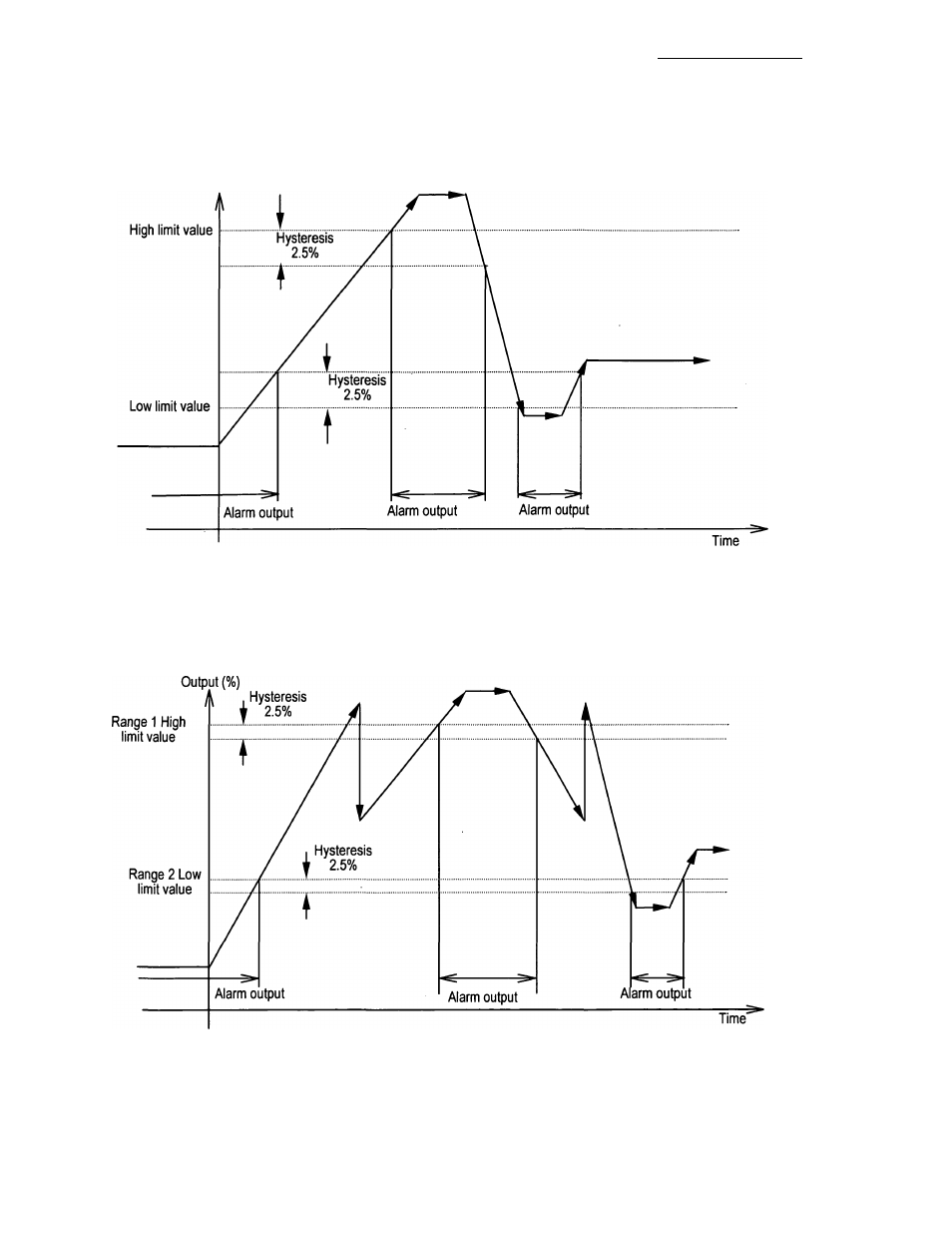

High and Low Limit Alarm Output Performance (Same as for High High/Low Low limit
Alarm Output)
• Single range performance
Output (%)
Multi-range performance
In an example shown below, a low limit alarm is set for the Range 2 and a high limit
alarm is set for the Range 1.
* When an alarm output condition occurs, Digital output 1 and 2 change to the output status set for an
alarm output condition. Alarm output contact is open while the converter is powered off.
-
