TOSHIBA
6 F 8 A 0 8 6 9

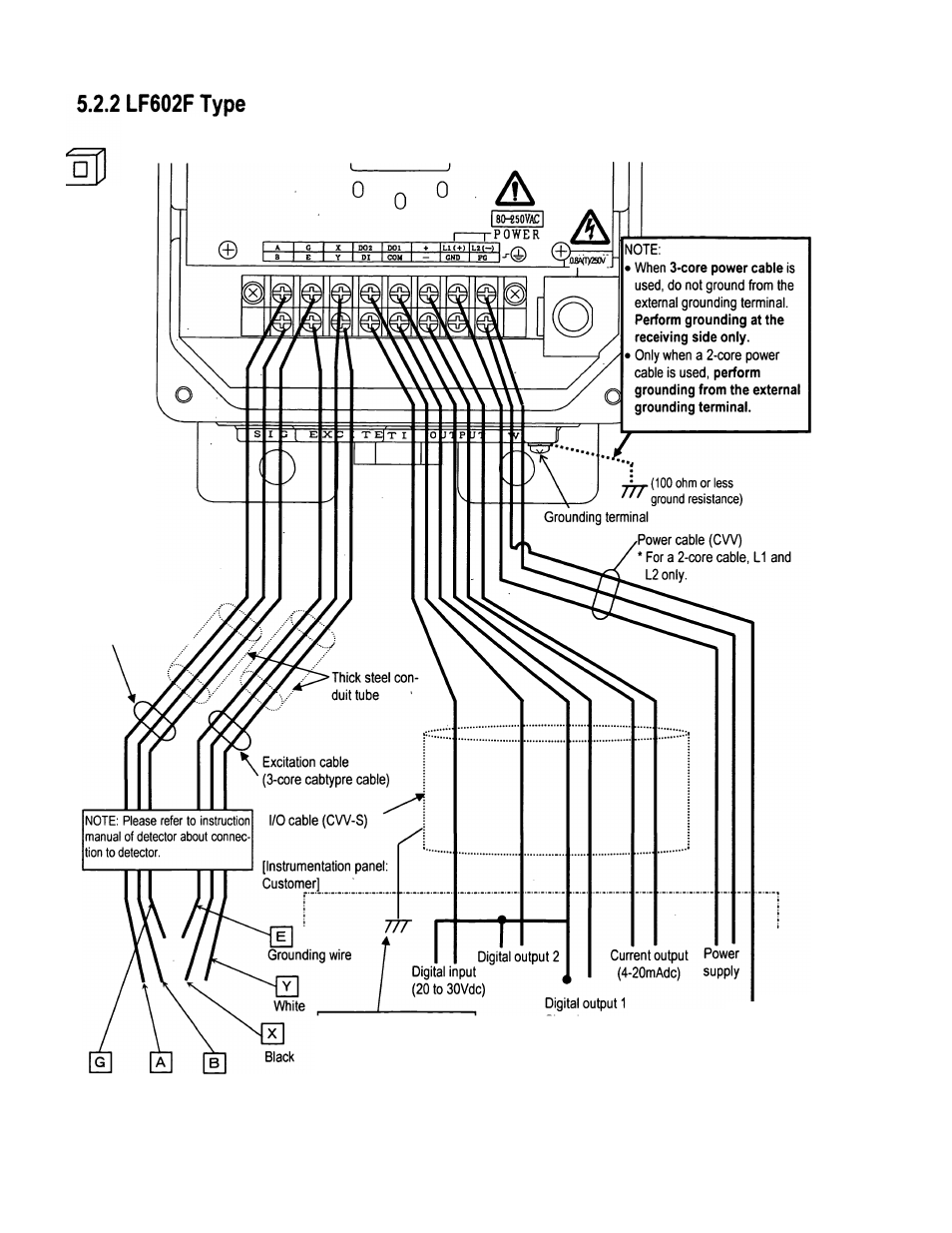

The terminal board connections of separate type converter LF602F are shown in Figure 5.1.
Proceed with wiring as described in Section 5.4, “Wiring Procedure.”
LF602F
Signal cable
(2-core shielded
cabtypre cable)
Shielded wire Black White
Connected detector
NOTE: To avoid 2-point
grounding, ground the shield of
the output cable basically at
the receiving side.
Figure 5.2 External Wiring Schematic Diagram
77T
(100 ohm or less
ground resistance)
-
24
-
