Section 4: Engine and Transmission Support Assembly
4 - 13
4
4. Engine Support Assembly Isolator Mounts
(Front), Removal and Replacement
4.1. Position the Big Country on a firm level surface
in a location that leaves room to work around
both sides of the vehicle.
4.2. Lift and support the bed.
4.3. Turn the engine off, remove the key, and set the
parking brake.
4.4. Tilt both seats forward.
4.5. Remove the bolt and washer that secure the cup
holder console using a 3/8” wrench, and lift away
the cup holder console.
4.6. Remove the two bolts and washers that secure
the parcel bin under the passenger’s seat, and
remove the parcel bin. See Figure 4.6.
4.7. Insert a 9/16” wrench through the slot in the front
of the frame cross-member at the front of the
engine compartment to reach the nut on the bolt
that holds the isolator to the engine support
assembly.

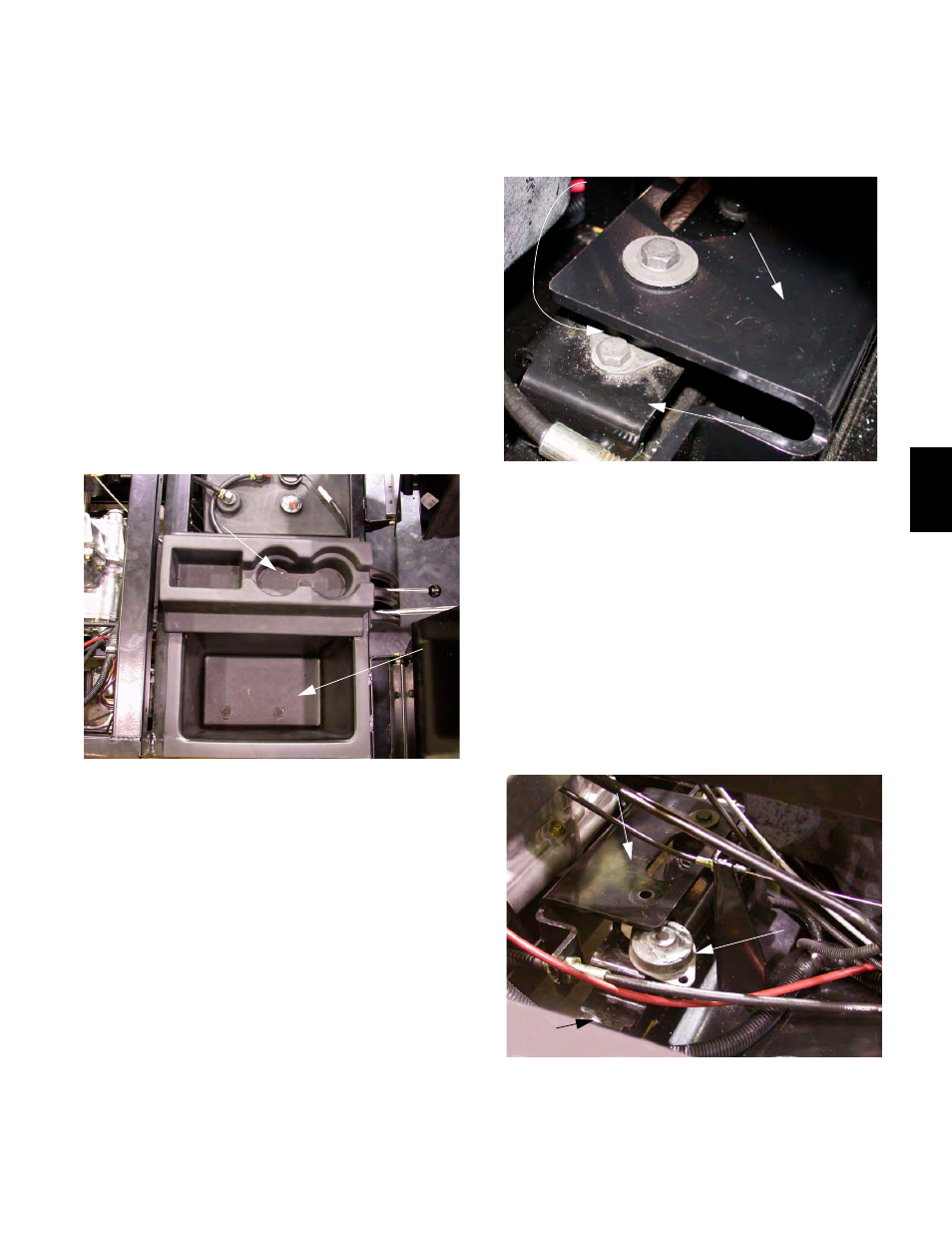

Figure 4.6
Cup Holder Console
Parcel Bin
4.8. Loosen the bolt using a second 9/16” wrench
See Figure 4.8.
4.9. Remove the nut and the large fender washer
from within the frame cross-member.
4.10. Lift the bolt and heavy flat washer out of the iso-
lator mount and engine support assembly.
4.11. Remove the two bolts that hold the isolator
mount to the frame using a ½” wrench.
NOTE: There are threaded inserts in the frame.
4.12. Use a jack to lift the engine support assembly
just far enough (3/8”) to allow the isolator mount
to slip out of the opening in the top of the rear
frame cross-member. See Figure 4.12.
4.13. To Install an Isolator mount, reverse the steps
of the removal procedure.
Figure 4.8
Engine and Transmission
Support Assembly
Frame Cross-member
Isolator Mount
Figure 4.12
Isolator Mount
Engine Support Assembly
Frame
