Section 2: Clutch, Transmission, Brakes, Linkages
2- 21
2
16.6. Slip the clutch off the end of the crankshaft. See
Figure 16.6.
NOTE: It will be necessary to partially remove
the key that rides between the clutch and the
crankshaft as the clutch is removed.
16.7. To install the driving clutch pulley on the Big
Country, reverse the removal procedure.
NOTE: Apply a small amount of anti-seize com-
pound to the bore of the driving clutch pulley
prior to installing it on the Big Country.
NOTE: Apply Loctite 242  or an equivalent
thread locking compound to the bolt that holds
the pulley to the crankshaft.
NOTE: Torque the bolt to 20-30 ft-lb.
NOTES

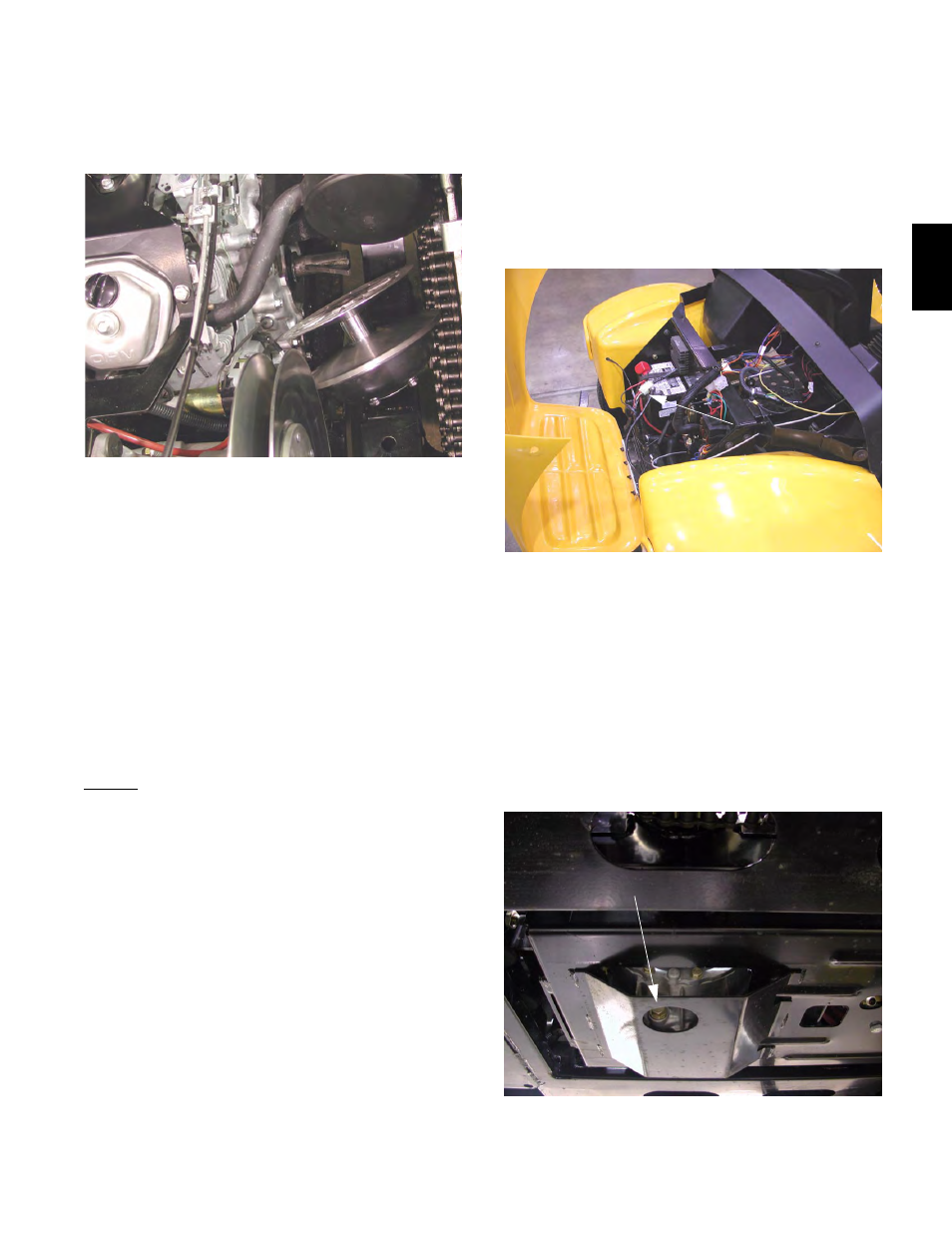

Figure 16.6
17. Transmission Removal and Replacement
17.1. Remove the two bolts, flat washers, and rubber
washers that secure the hood using a 9/16”
wrench.
17.2. Disconnect the negative battery cable using a
7/16” wrench. See Figure 17.2.
17.3. Remove the driven clutch pulley as described in
the “Driven Clutch Pulley Removal and Replace-
ment” section of this manual.
17.4. Lift the Big Country and remove the wheels as
described in the “Lifting the Big Country and
Removing the Wheels” section of this manual.
17.5. Position a drain pan (minimum capacity: one gal-
lon) under the transmission drain plug.
See Figure 17.5.
Figure 17.2
Negative Battery Cable
Figure 17.5
Transmission Drain Plug
