Section 2: Clutch, Transmission, Brakes, Linkages
2- 9
2
8.14. Slip the threaded end of the replacement cable
into the yoke of the cable to be replaced. The nut
should fit into the throat of the yoke, locking the
two cables together. See Figure 8.14.
8.15. Wrap the joint in duct tape.
8.16. Pull the old cable out through the engine com-
partment, fishing the replacement cable through
the channel beneath the floor in the process.
See Figure 8.16.
8.17. Unwrap the joint between the two cables, and
remove the old cable.

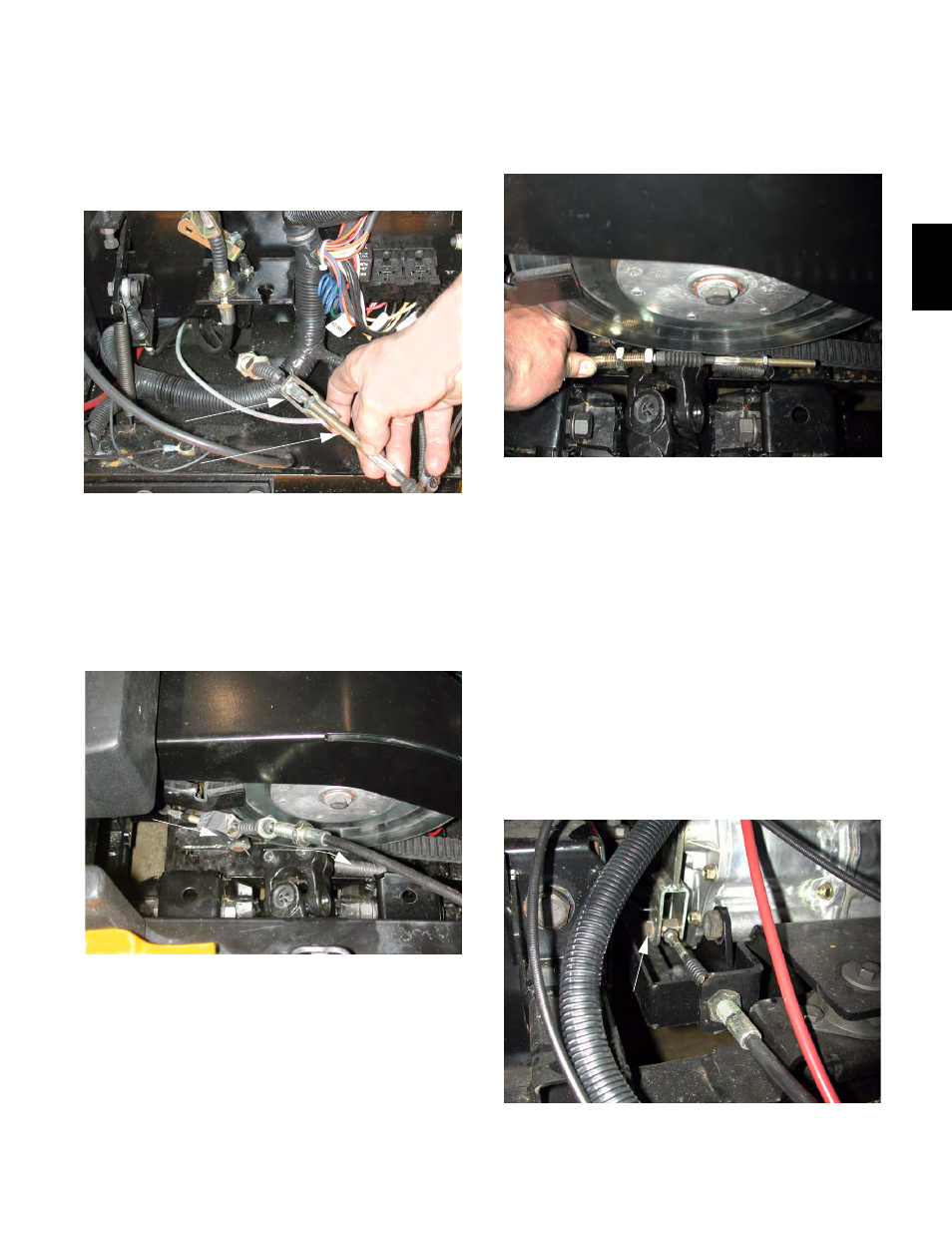

Figure 8.14
Threaded End of New Cable
Clevis End of Old Cable
Figure 8.16
Old cable
New Cable
8.18. Slip the boot off the end of the cable housing
and remove the large jam nut. See Figure 8.18.
8.19. Position the remaining jam nut on the new cable
housing about 1” from the end of the housing.
8.20. Install the jam nut on the cable about ¼” from
the shoulder of the threaded end.
8.21. Slip the cable core through the slot in the
bracket, and draw the end of the cable housing
into the bracket.
8.22. Start the large jam nut onto the threads on the
cable housing, and thread it up to the bracket.
8.23. Tighten both jam nuts using a pair of 7/8”
wrenches.
8.24. Insert the cable end through the pivot pin on the
brake cam lever. See Figure 8.18.
Figure 8.18
Figure 8.24
Pivot Pin
