Section 4: Engine and Transmission Support Asssembly
4 - 6
1.53. Remove the two bolts and flat washers that hold
the parcel bin in the recess under the passenger
seat using a ½” wrench.
1.54. Remove the parcel bin.
1.55. Loosen the clamp bolt that holds the transmis-
sion lever to the “D” shaped shaft (shift arm) on
top of the transmission using two 1/2”
wrenches. See Figure 1.55.
1.56. Disconnect the transmission safety switch from
the wiring harness by un-plugging the molded
connector.
1.57. Remove the hairpin clip that holds the front of
the shift rod to the shift lever. See Figure 1.57.
1.58. Lift the shift rod and shift arm out of the engine
compartment as an assembly.
1.59. Loosen the jam nuts that hold the differential
lock cable to the differential lock bracket using a
1/2” wrench.
1.60. Slip the cable housing out of the bracket, rotate
the cable so that the cable aligns with the slot in
the differential lock arm, and disengage the
cable from the arm. See Figure 1.60.
1.61. Loosen the nuts on the clamp bolts that hold
each universal joint to the out-put shafts of the
transmission using two 9/16” wrenches.
1.62. Slide the right universal joint and sprocket as far
outward as possible. See Figure 1.62.

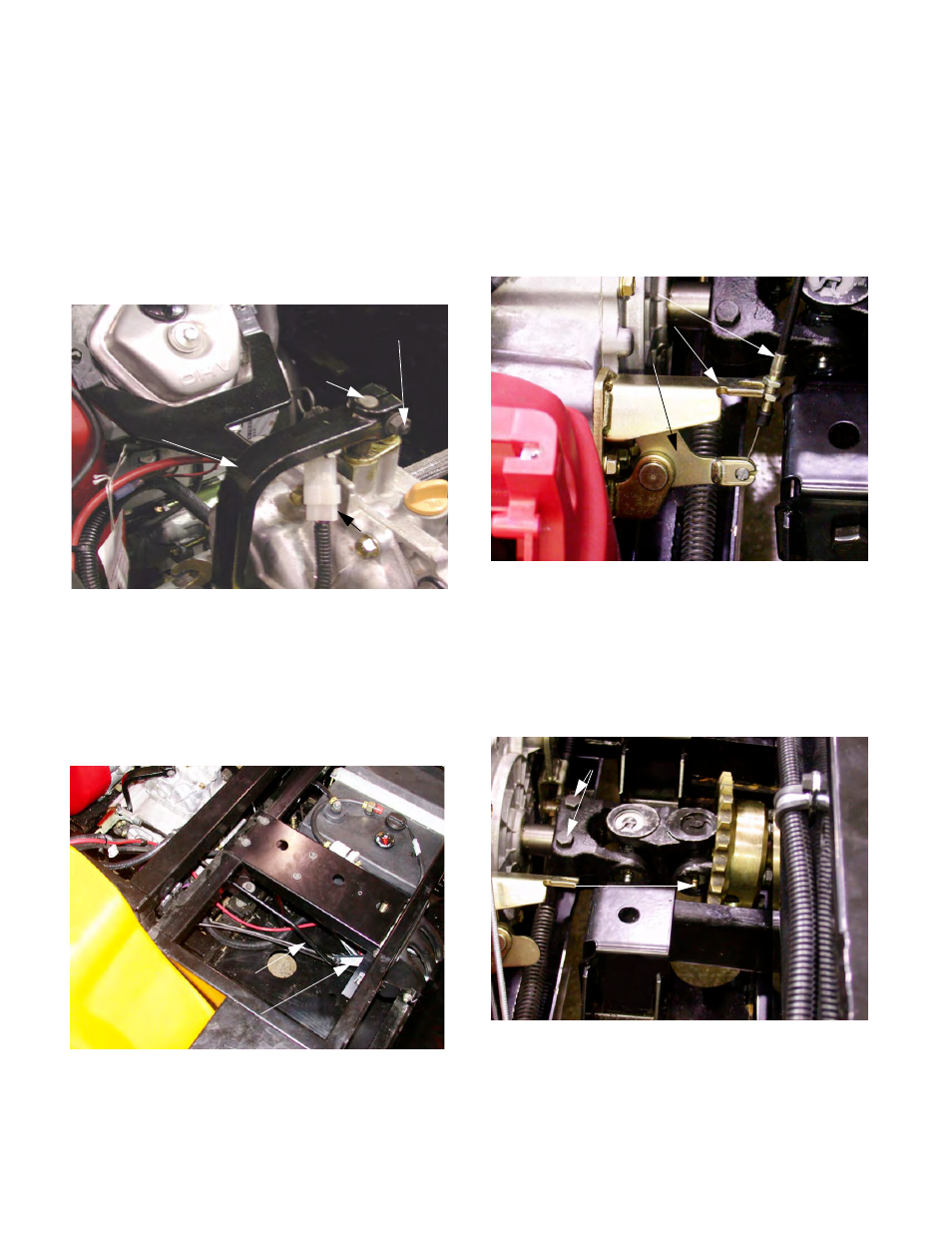

Figure 1.55
Molded
Connector
Transmission Lever
Clamp Bolt
“D” Shaped
Shaft
Figure 1.57
Shift Rod
Shift Lever
Differential Lock Cable
Differential Lock Bra cket
Differential Lock Arm
Figure 1.60
Clamp Bolts
Slide Outward
Figure 1.62
