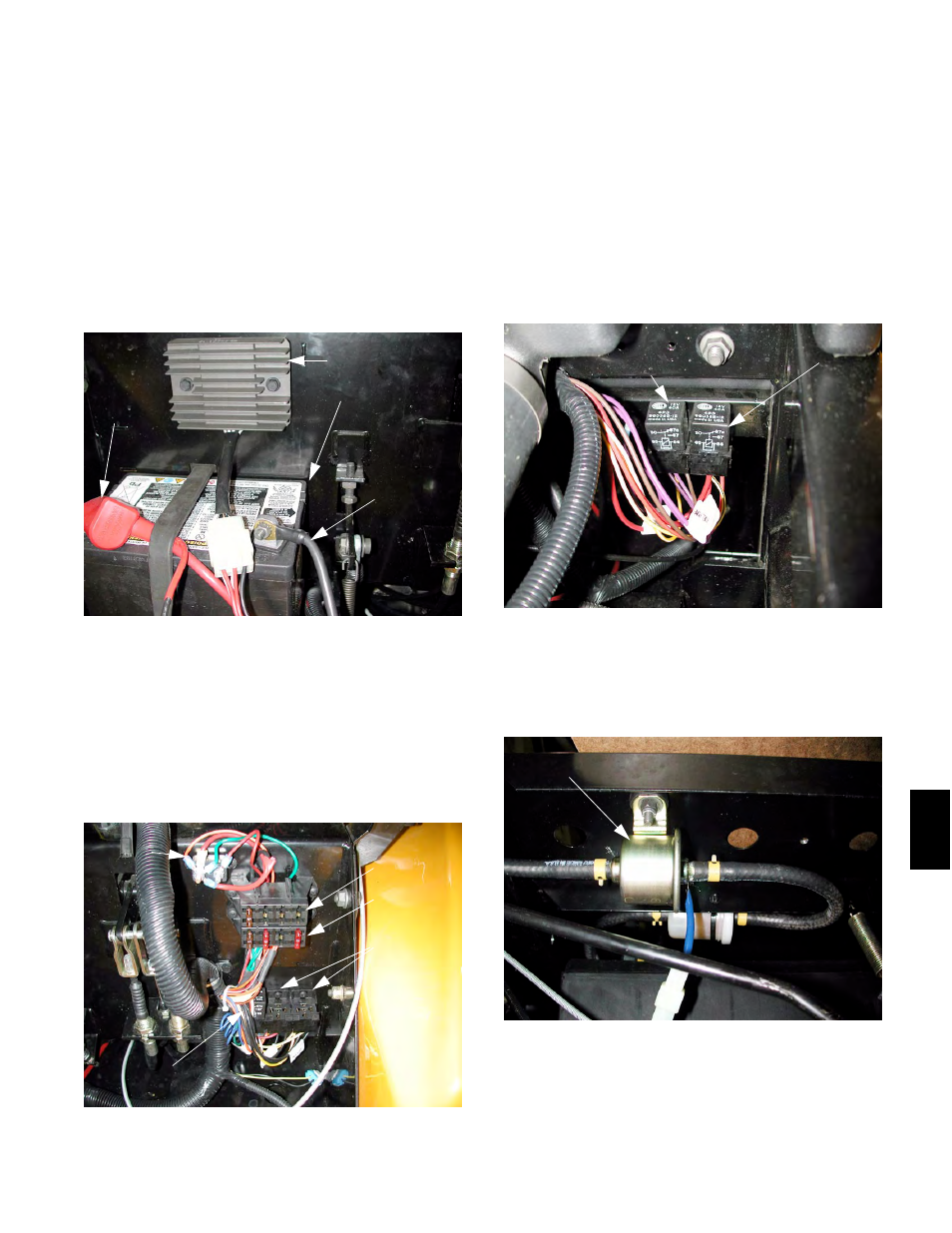

1. Component Location
1.1. Battery: Under the hood on the right side
1.2. Regulator-Rectifier: Under the hood on the
right side, immediately above the battery.
See Figure 1.2.
1.3. The two fuse panels are located under the hood
on the left side of the bulkhead.
1.4. The breaker is located immediately above the
fuse panels.
1.5. The accessory relay is located immediately
below the fuse panels. See Figure 1.5.
Figure 1.2
Regulator
Rectifier
Battery Positive
Cable
Negative
Cable
Figure 1.5
Breaker
Fuse Panel
Fuse Panel
Accessory
Relay
Empty Plugs
for Bed Lift
Relays
1.6. The fuel pump relay is located in the engine
compartment, at the right front corner.
1.7. The starter relay is located in the engine com-
partment, at the right front corner.
See Figure 1.7.
1.8. The fuel pump is located on the bottom of the
cup holder console support plate, between the
seats.
Figure 1.7
Fuel Pump Relay
Starter Relay
Figure 1.8
Fuel Pump
