Section 3: Drive Axle Service
3 - 19
3
12.7. Drive the end yoke in the opposite direction,
forcing the second cup partially out of the bore in
the yoke. See Figure 12.7.
12.8. Remove the second cup.
12.9. Carefully slip the cross out of the end yoke.
See Figure 12.9.
12.10.Remove the remaining cup from the end yoke.

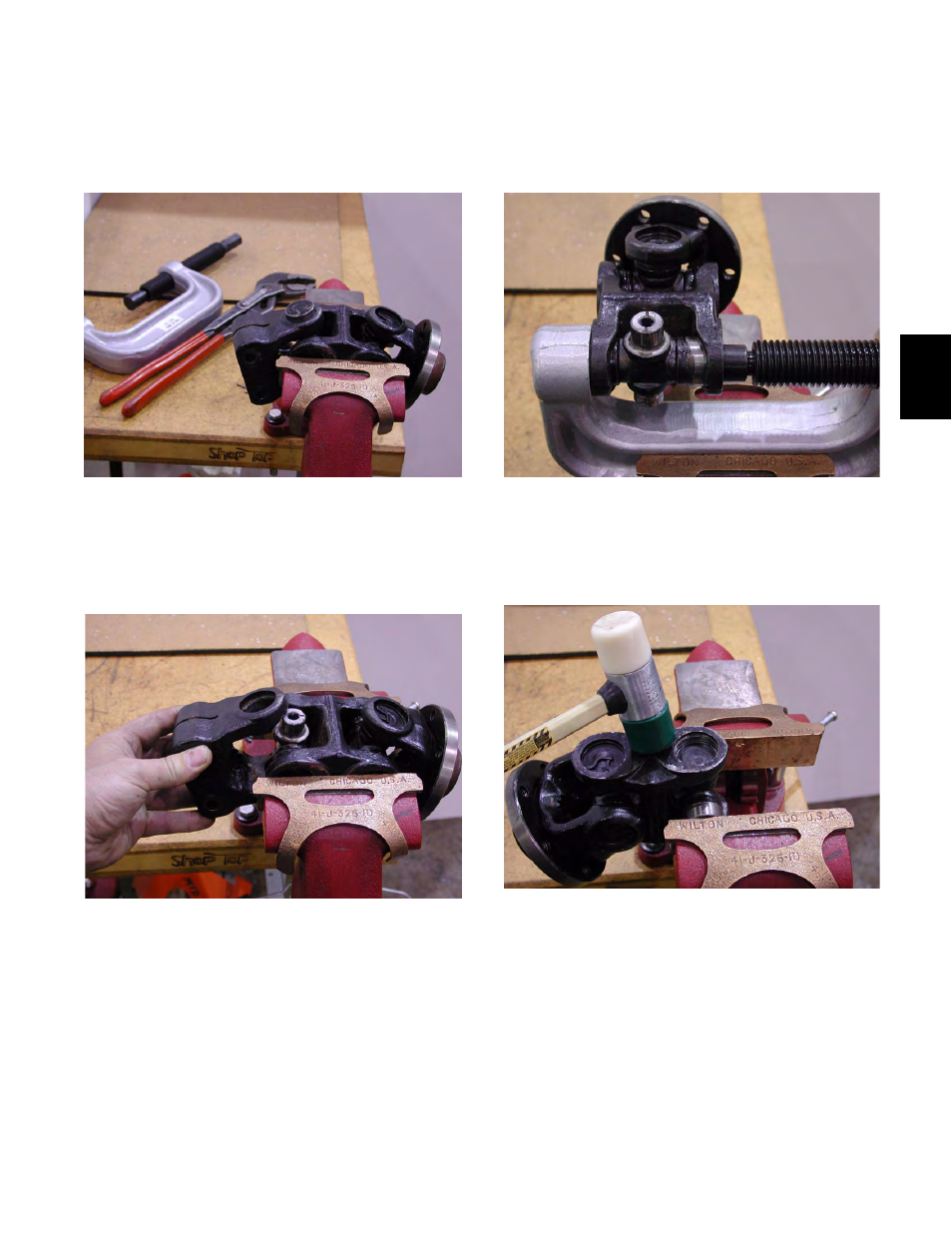

Figure 12.7
Figure 12.9
12.11. Use the universal joint press to push one cup in
the center yoke as far as possible in one direc-
tion. See Figure 12.11.
12.12.Support the cross in a vise and drive the center
yoke in the same direction that the cup was
pushed. See Figure 12.12.
NOTE: The cross will force the cup partially out
of the bore in the center yoke.
12.13.Remove the cup.
12.14.Remove the universal joint from the vise, turn
the universal joint over, and secure it in the vise.
Figure 12.11
Figure 12.12
