Section 4: Engine and Transmission Support Assembly
4 - 5
4
1.43. Remove the bolt that secures the driven clutch
pulley to the input shaft of the transmission using
a 17mm wrench. See Figure 1.43.
1.44. Place the transmission shift lever in Neutral.
1.45. Remove the hairpin clip and flat washer that hold
the shift interlock cable to the interlock arm.
1.46. Unhook the spring that connects the interlock
cable to the clutch pulley brake arm.
1.47. Remove the nut, bolt, and spacer that hold the
shift interlock bracket to the transmission using
two 9/16” wrenches. See Figure 1.47.
1.48. Remove the nut, bolt, and flat washer that hold
the bottom of the shift interlock bracket to the
transmission using two 9/16” wrenches.

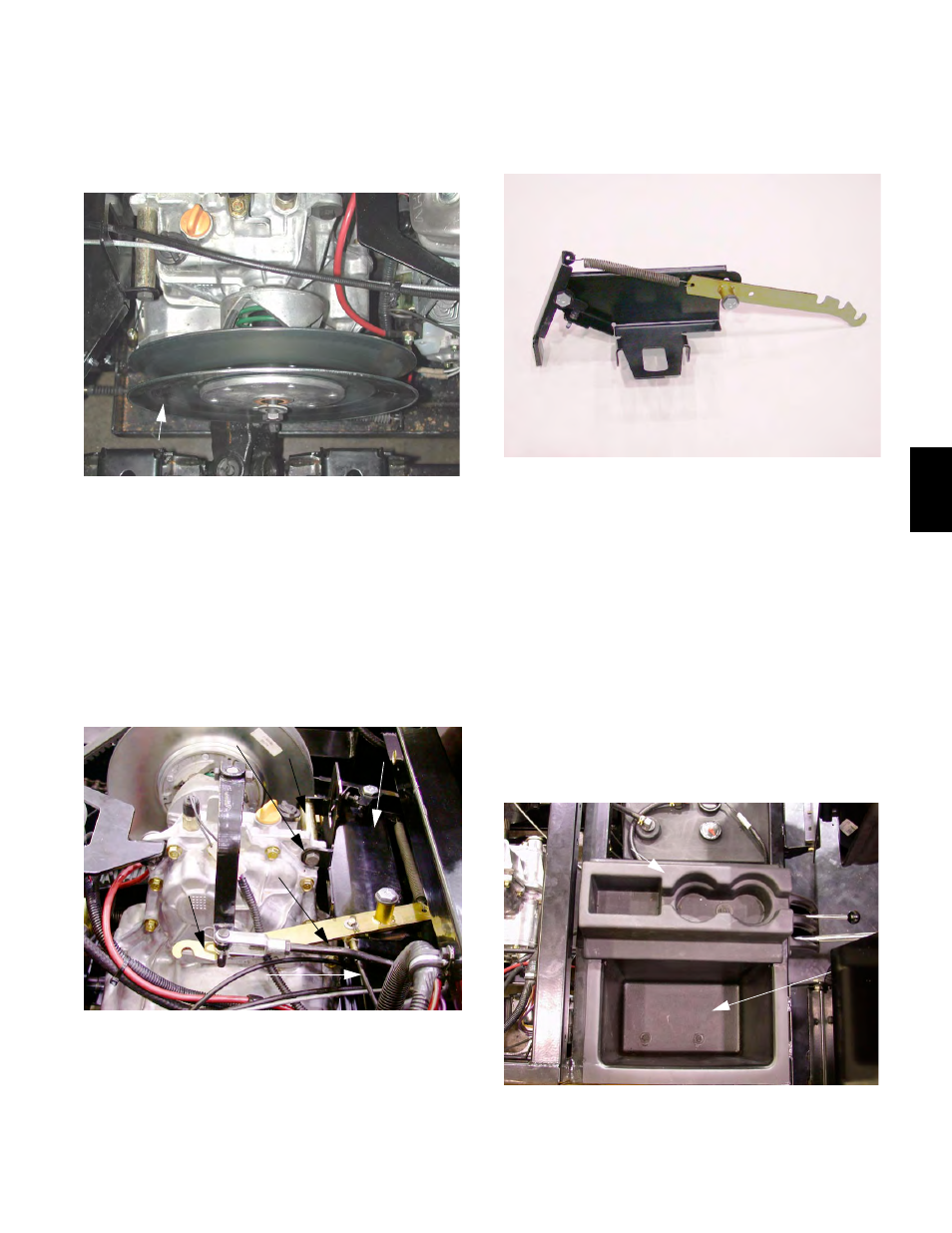

Figure 1.43
Driven Clutch Pulley
Figure 1.47
Upper Mounting Bolt
Space r
Shift Interlock
Bracket
Lower
Mounting
Bolt
Shift
Interlock
Arm
Shift Interlock Cable
1.49. Remove the shift interlock bracket as an assem-
bly. See Figure 1.49.
1.50. Slide the driven clutch pulley off of the input
shaft.
1.51. Relieve tension from both drive chains according
to the instructions found in the “Chain Tension
Adjustment” section of this manual.
NOTE: If the unit is equipped with fixed chain
guides it is just as easy to remove the chains as
described in the “Chain Removal” section of this
manual.
1.52. Remove the bolt and flat washer that secure the
cup holder console between the seats using a
3/8” wrench, and remove the cup holder con-
sole. See Figure 1.52.
Figure 1.49
Shift Interlock assembly
Figure 1.52
Console Cup Holder
Parcel Bin
