Section 4: Engine and Transmission Support Assembly

4 - 11

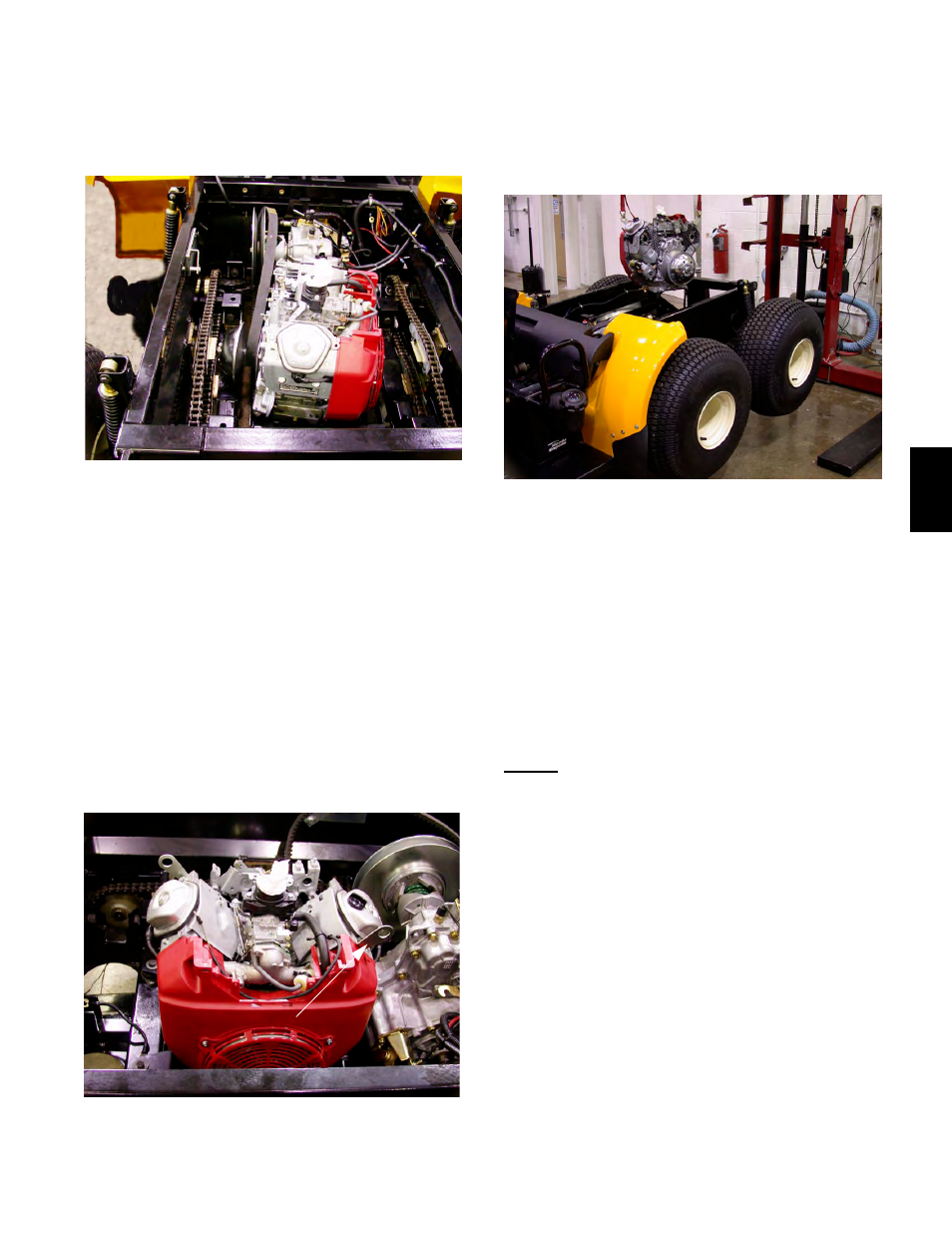

2.10. Push the engine forward and rotate it to loosen

the belt. See Figure 2.10.

NOTE: Do not damage the oil drain valve on the
front of the sump: it extends below the engine
support assembly.

2.11. Roll the belt off the inside edge of the driven

clutch pulley to provide slack.

2.12. Remove the belt completely from the driving

clutch pulley

NOTE: One lift eyelet is removed from the
Honda engine at our factory to provide a mount-
ing point for the upper transmission support. It
has been included with the Owner’s Manual.

2.13. Install the second lift eye to the front cylinder

head using a 13mm wrench. See Figure 2.13.

Figure 2.10

Second Lift Eye

Figure 2.13

2.14. Attach an appropriate lifting device to the lift

eyes, and carefully remove the engine from the
Big Country. See Figure 2.14.

2.15. To install the engine in the Big Country,

reverse the steps used to remove the engine.

NOTE: Use the torque chart found at the end of
the “Engine and Transmission Support Assem-
bly ” section of this manual when installing the
engine.

NOTE: The driving clutch pulley may be
removed from the engine on the bench. Refer to
the “Driving Clutch Pulley Removal and
Replacement” section of this manual for specific
instructions.

NOTES

Figure 2.14
