Section 4: Engine and Transmission Support Assembly
4 - 1
4
1. Engine and Transmission Support Assembly:
Removal and Replacement as a Unit
NOTE: The engine and transmission can be
removed individually. This procedure is for the
removal of the engine support as an assembly.
1.1. Disconnect the prop rod from the bed, as
described in the “Spring and Shock Assembly
Removal” section of this manual. See Figure 1.1.
1.2. Lower the bed.
1.3. Remove the nuts and bolts that hold the bed to
the frame using ¾” wrenches. See Figure 1.3.

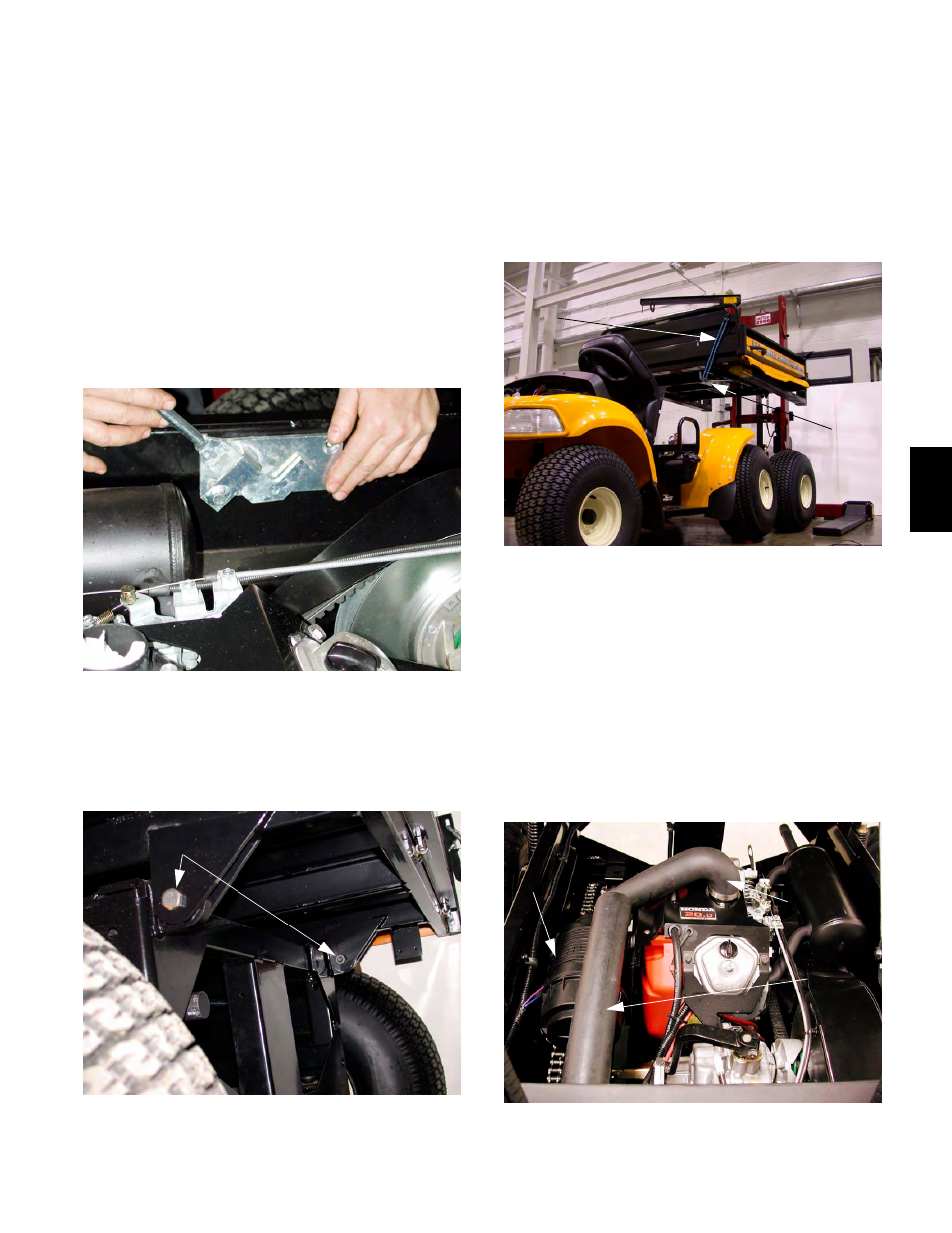

Figure 1.1
Figure 1.3
Nuts and Bolts Holding
the Bed to the Frame
1.4. Lift and remove the bed with an assistant or a
suitable lifting device. See Figure 1.4.
NOTE: Use caution not to snag the prop rod on
the prop rod bracket as the bed comes up. A
shock cord will help keep the prop rod clear.
1.5. Lift the Big Country and remove the front drive
wheels as described in the “Lifting the Big Coun-
try and Removing the Wheels” section of this
manual.
1.6. Loosen the hose clamps and remove both hoses
that connect to the air filter using a screwdriver
or a 5/16” driver. See Figure 1.6.
Figure 1.4
Shock Cord
Prop Rod
Figure 1.6
Air Filter
Hose to
Carburetor
Plenum
Hose to
