1.0 INTRODUCTION
1.1 OVERVIEW
The BioLogic DuoFlow chromatography system is specifically designed for the high resolution purification of
proteins, peptides, and other biomolecules where recovery of biological activity is of primary concern. The
DuoFlow F10 pumphead operates at up to 20 ml/min and 3500 psi (233 bar, 23 MPa) when used with the
Maximizer. The DuoFlow F40 pumphead operates at up to 80 ml/min and 1000 psi (66 bar, 6.6 MPa) when
used with the Maximizer.
The BioLogic DuoFlow system software provides an easy-to-use graphic interface and menu-driven software
for manual operation, system setup, method editing, and run operations. The system software may be run
on any PC running Microsoft
® Windows ® 2000.
The flexible control architecture allows the seamless integration of a wide variety of configurations with other
Bio-Rad and non-Bio-Rad components to meet your purification requirements.

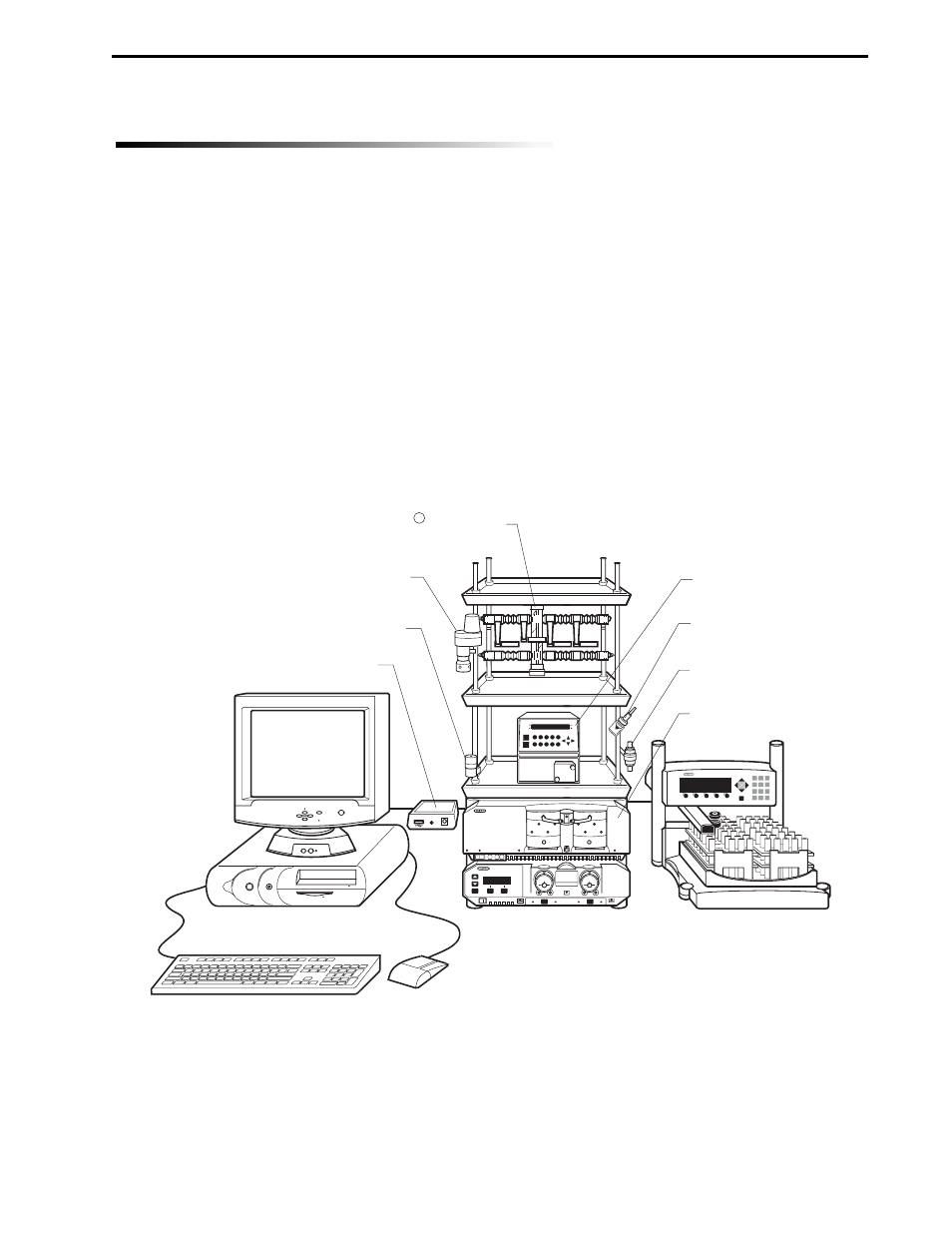

Figure 1-1. BioLogic DuoFlow System
F3 F4 F5
1 2 3
4 5 6
7 8 9
0 F1 F2
MAXIMIZER BIOFRAC
UNO Q1 COLUMN
AVR7-3 SAMPLE
INJECT VALVE
TM
A B
CONDUCTIVITY
MONITOR
WORKSTATION
pH MONITOR
VALVE A VALVE B
QUADTEC DETECTOR
MAXIMIZER MIXER
USB BITBUS COMMUNICATOR
MOUSE
KEYBOARD
DELL CONTROLLER
BioFrac Franction Collector
INTRODUCTION SYSTEM OVERVIEW
1-1
