6.4 CREATING AND VIEWING A COMPARE
Trace Compare allows you to view and compare an unlimited number of chromatogram runs simultaneously
in either tile or overlay mode.

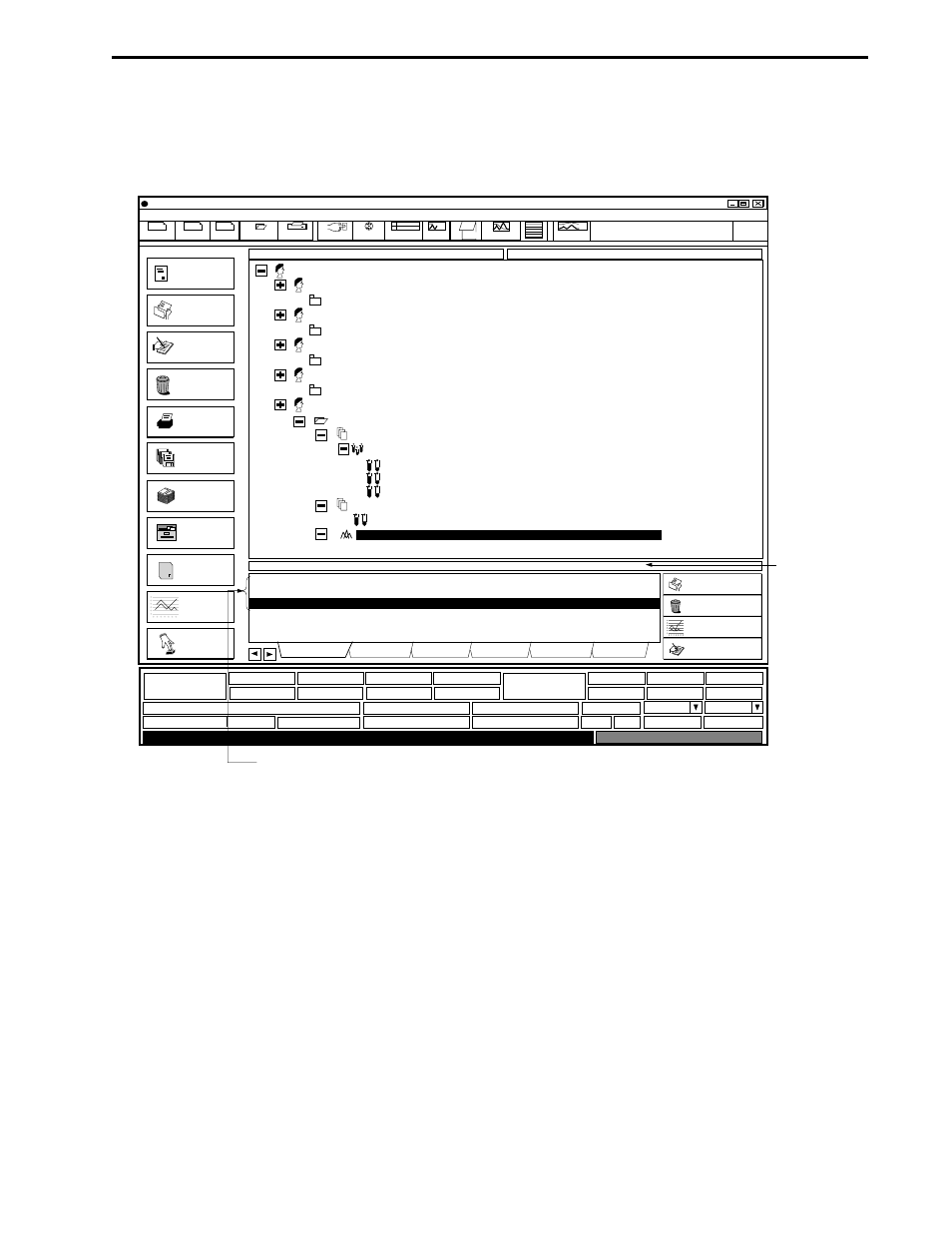

Figure 6-7. Compare Displayed in the Browser Window
To create a compare,
1. In the Browser screen select the user name and open the method that contains the runs you wish to
compare.
2. Select the NEW icon from the left screen sidebar, and from the displayed menu select New Compare.
3. To place runs into the compare dialog, highlight the runs and click the Compare icon on the sidebar.
Repeat until all desired runs are in the lower screen Project Compare window. This places each run into
your Project Compare and the Compare Tab window at the bottom of the screen.
• When you highlight the Compare icon under the Project Compare, the list of runs will appear in the
Tab window.
• Multiple methods may be selected in the Browser by either shift/click or control/click.
Name Date
Demo Chromatography - Project for Demo Chromatography - Compare1
1 Sample Run....................................................03/27/2001 05:05:59PM
2 Sample Run....................................................03/27/2001 05:05:59PM
3 Sample Run....................................................03/27/2001 05:05:59PM
Open Run
Edit Compare
Compare Traces
METHODS IN COMPARE
COMPARE
NAME
New...
Open...
Edit...
Delete...
Print
CopyOut...
CopyIn...
Move
Reset
Queue
Remove Run Compare
Information MOVE List QUEUES COMPARE COPYIN List Error List
WL1 - 280nm
0.40
WL2 - 260nm
0.15
WL3 - 214nm
2.00
WL4 - 405nm
0.00
Flow Rate EGP %B
0 %B 0.00 ml/min 0%
% Split
1.00ml/min 0 %B2
Maximizer + Gradient Pump: F10 UV Conductivity
438 psi 1.003 AU 1.23 mS/cm
QuadTec
Econo Gradient
Pump
SIM1/pH SIM1/SIG
0.548 Volt 7.00 pH
BioLogic Duo-Flow - - - -
Edit
Method
New
Method
New
Run Browser Manual Setup Protocol
wash
load
1
2
Run Notes Report PostRun Log Settings
File View Utilities Options Window Help
...
USERS...........(5)
...
...
.........................
......... ChemLab...........................................................................03/02/2001 10:04:56AM : 1
Project for ChemLab...................................................01/07/2001 07:08:34PM : 0
... Project for Demo Chromatagraphy............................03/13/2001 07:35:01AM
... Demonstration Queue .......................................03/27/2001 05:05:48PM
Demonstration Queue [1]............................03/27/2001 05:05:48PM
: 1
: 4
....
...
..............
Run: [Q] Queue Method #3................03/28/2001 02:49:39PM
...
... Run: [Q] Queue Method #1................03/28/2001 02:36:06PM
Run: [Q] Queue Method #2................03/28/2001 02:42:54PM
... Sample Run................................................03/28/2001 02:49:39PM
...
...
Mary Jones........................................................................01/13/2001 07:34:43AM : 1
Project for Mary Jones................................................03/13/2001 07:35:01AM : 0
.... .........
...
...
Joe Smith...........................................................................03/27/2001 05:05:48PM : 1
Project for Joe Smith...................................................03/28/2001 02:49:39PM : 0
.... .........
...
...
Default................................................................................03/27/2001 05:05:48PM : 1
Default.........................................................................03/28/2001 02:49:39PM : 0
.... .........
... Demo Chromatagraphy......................................................02/13/2001 07:34:43AM : 1
: 3 ....
....
... standard UV detector..........................................03/27/2001 05:05:48PM : 1
Compare1........................................................03/28/2001 02:49:39PM ... : 2
Bio-Rad
Web
INTRODUCTION TO THE BROWSER SCREEN SYSTEM OPERATION
6-11
