3.5 MIXERS
Two mixers have been designed for use with the DuoFlow system: the MX-1 mixer and the higher capacity
Maximizer mixer. The mixers are shipped pre-assembled with their mixer barrel. The mixer barrel may be
removed or replaced increasing or decreasing the internal volume to provide the mixer capacity appropriate
to the flow rate. Refer to table 3.1 when selecting a mixer volume.

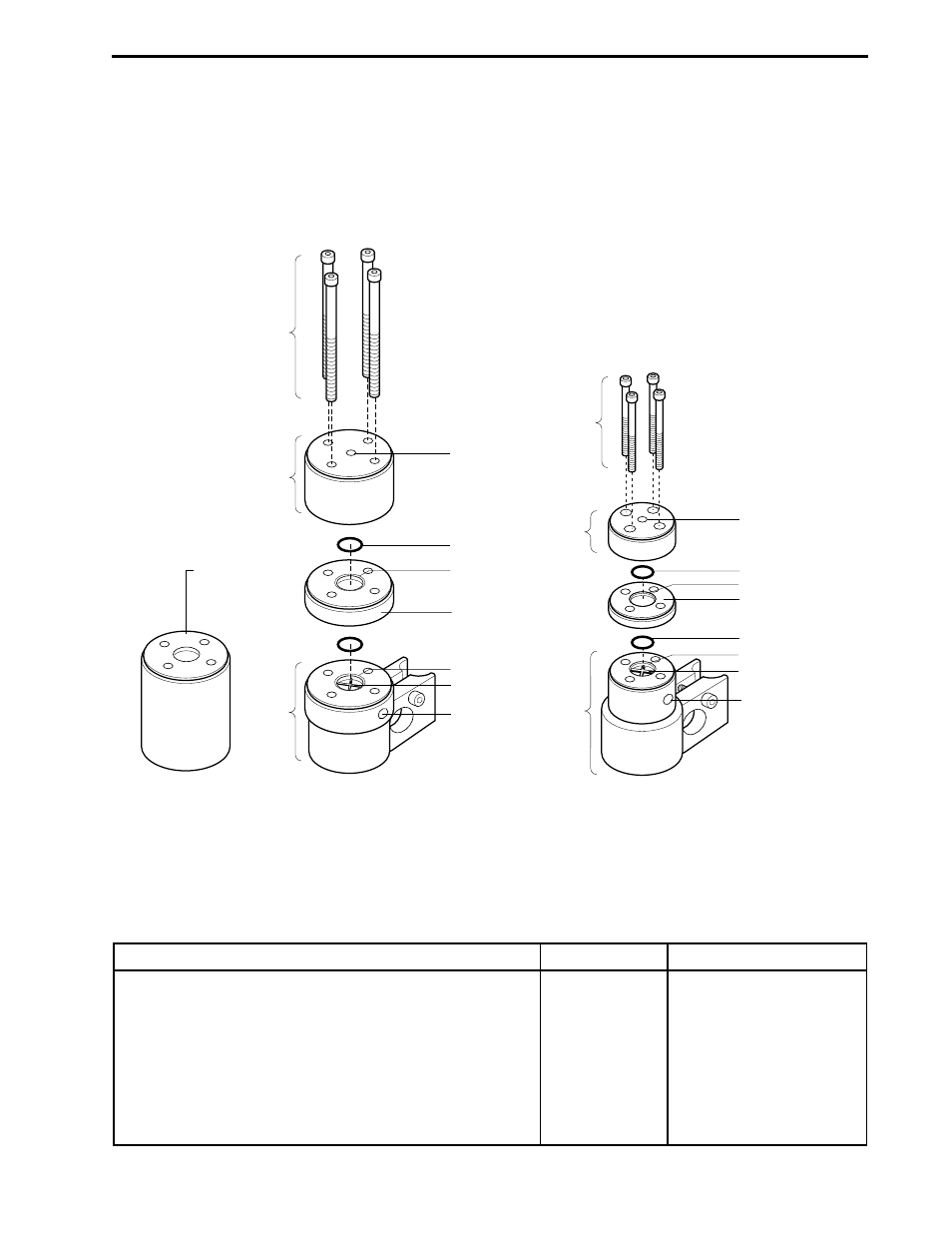

Figure 3-7. Mixers
Table 3-1.
Mixer Flow Rates
Flow Rate Barrel Extension Capacity Assembly Screws
MX-1 Mixer (for use without Maximizer)
less than 1ml/min
none 263 µl 10-32 x 5/8” (1.6 cm)
1 to 10 ml/min 750 µl mixer barrel extender 750 µl 10-32 x 7/8” (2.2 cm)
10 to 40 ml/min 2 ml mixer barrel extender 2 ml 10-32 x 1-1/2” (3.8 cm)
Maximizer Mixer (for use with Maximizer)
0.5 to 10 ml/min
none 750 µl 1/4-20 x 1/2” (1.3 cm)
10 to 40 ml/min 5 ml mixer barrel extender 5 ml 1/4-20 x 1-1/2” (3.8 cm)
40 to 80 ml/min 12 ml mixer barrel extender 12 ml 1/4-20 x 3-1/4” (8.2 cm)
SCREWS
MIXER
BODY
O-RING
750 µ l MIXER
BARREL EXTENDER
OUTLET PORT
O-RING
INLET PORT
MIXER
TOP
MAGNETIC
STIR BAR
O-RING GROOVE
O-RING GROOVE
ASSEMBLY OF THE MX-1 MIXER
MIXER
TOP
SCREWS
MIXER
BODY
12 ml MIXER
BARREL
OUTLET PORT
5 ml MIXER
BARREL EXTENDER
INLET PORT
MAGNETIC
STIR BAR
O-RING
O-RING GROOVE
O-RING GROOVE
ASSEMBLY OF THE MAXIMIZER MIXER
SYSTEM SETUP SYSTEM INSTALLATION AND SETUP
3-7
