3.3 WORKSTATION CABLE CONNECTIONS
1. Confirm the voltage setting for the Workstation power supply. A red switch on the back of the
Workstation allows you to switch between 110 VAC and 240 VAC.
2. Connect the power cable to the Workstation. Do not turn on this device yet.
3.3.1 Systems without a Maximizer
If the Maximizer is NOT to be part of the system, follow the procedure below to connect the Workstation to
the USB Bitbus Communicator.
1. Note the two connectors marked “Instr Bus.” These connectors are identical: either may be used
when connecting bus communication cables.
2. Select a System Cable of sufficient length to reach the USB Bitbus Communicator. System Cables
17, 18, 19, 21, and 30 differ only in their lengths.

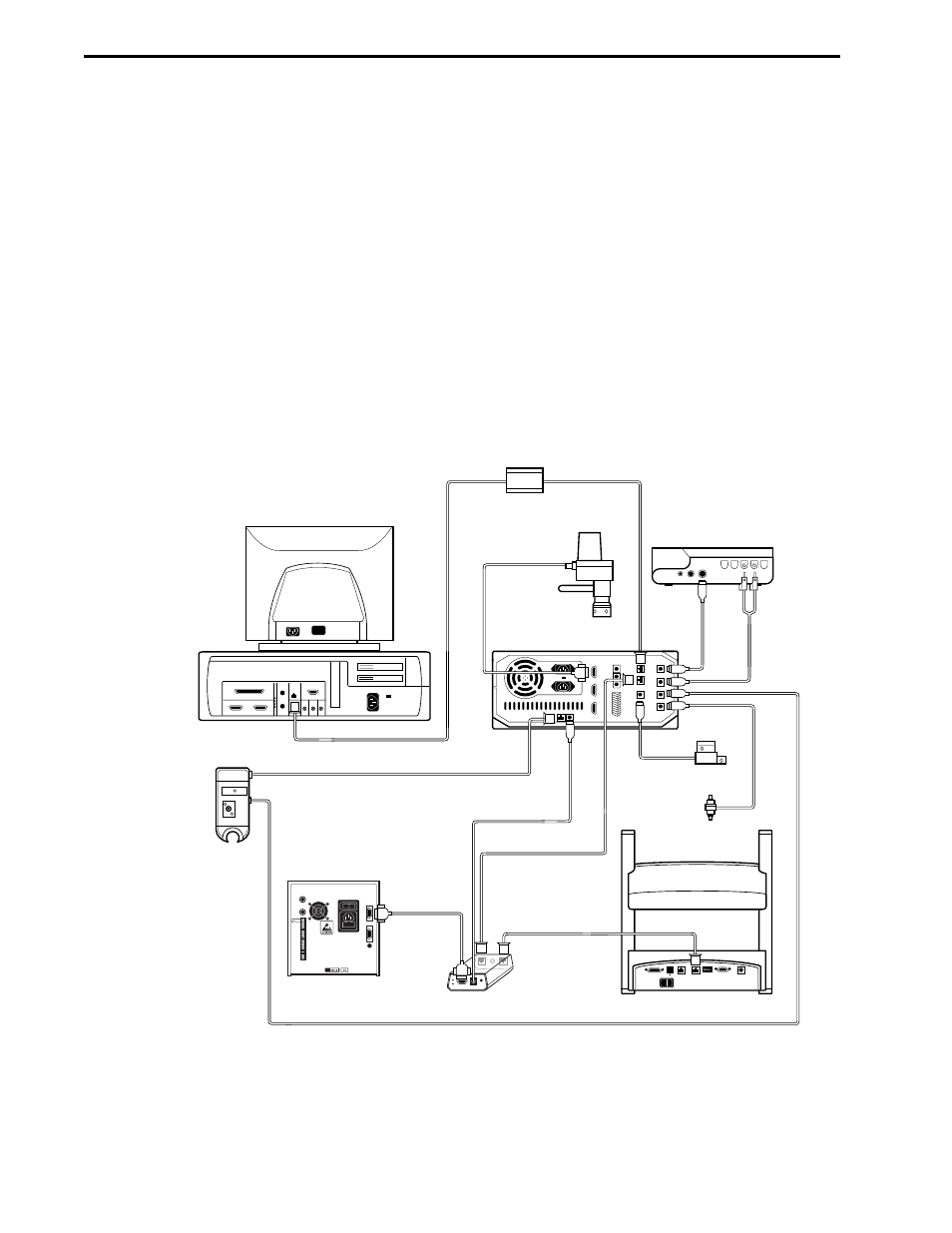

Figure 3-4. System Cable Connections (without Maximizer)
WORKSTATION
BIOFRAC
SYSTEM CABLE
17, 18, 19, 21, OR 30
CONDUCTIVITY
MONITOR
SYSTEM
CABLE 25
SYSTEM CABLE 26,
ICM POWER CORD
DELL CONTROLLER
AVR7-3
INJECT
VALVE
MODEL 1327
CHART RECORDER
SYSTEM
CABLE 2 SYSTEM
CABLE 4
MX-1 MIXER
QUADTEC
DETECTOR ICM MODULE
UV DETECTOR
SYSTEM
CABLE 31
USB CABLE
USB BITBUS
COMMUNICATOR
SYSTEM CABLE
17, 18, 19, 21, OR 30
SYSTEM CABLE
17, 18, 19, 21, OR 30
