SYSTEM SETUP SYSTEM INSTALLATION AND SETUP
3-6
3.4 SYSTEM RACK SETUP
Assemble the system rack before placing it on the Workstation. Detailed discussion of system rack
assembly is provided in Section 2.9.1. Keep in mind that the illustration is only an example. Alternative rack
arrangements include setting up the rack to use only one or two trays.
To mount the system rack on the Workstation, remove the four green caps covering the holes at the four
corners on top of the Workstation. Place the rack into the four corner holes.

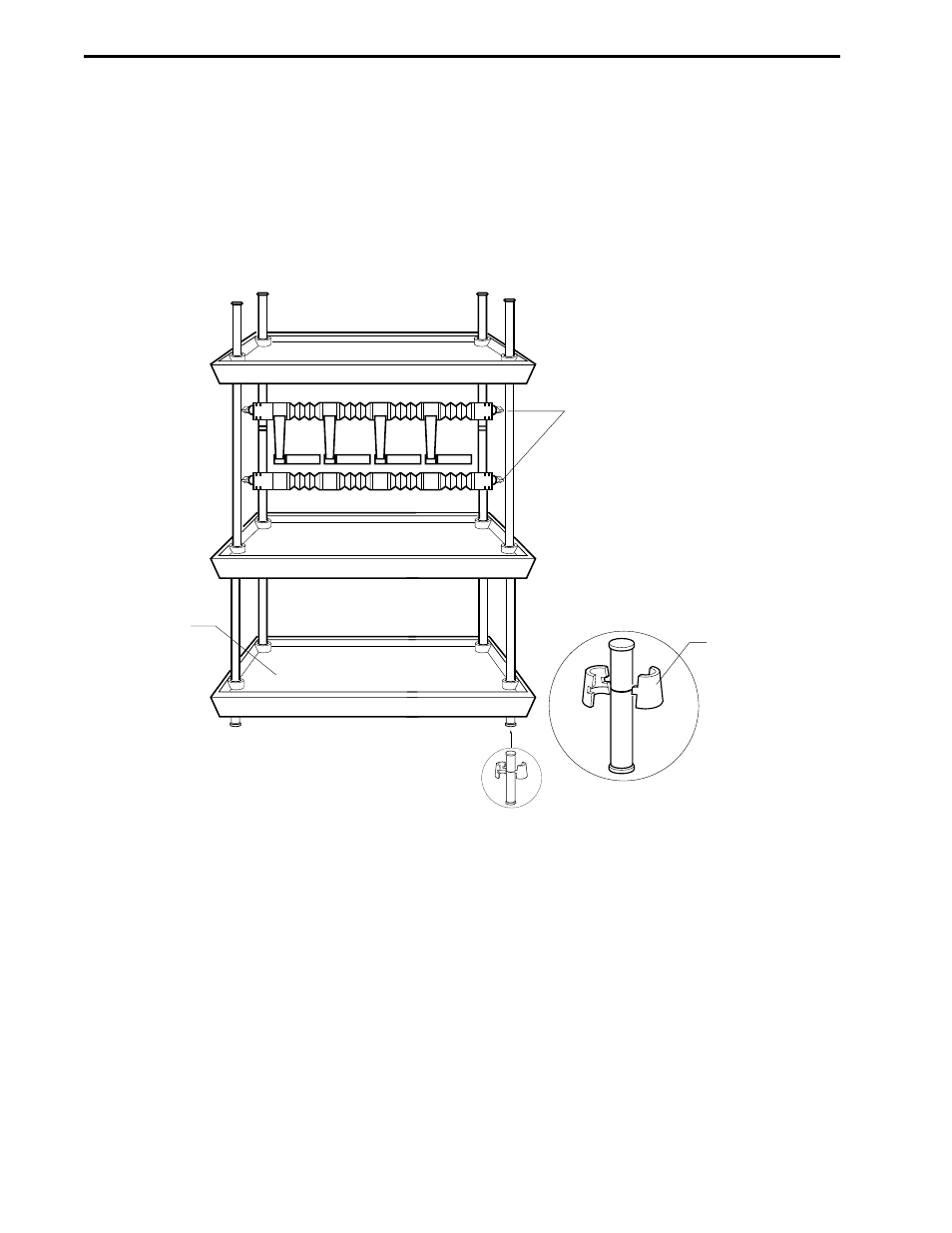

Figure 3-6. Rack Assembly
TRAY
COLUMN
CLAMPING
ARRANGEMENT
TAPERED
COLLAR
