AT-S63 Management Software Menus Interface User’s Guide
Section II: Advanced Operations 225
11. From the HyperTerminal main window, select Receive File from the
Transfer menu, as shown in Figure 70.

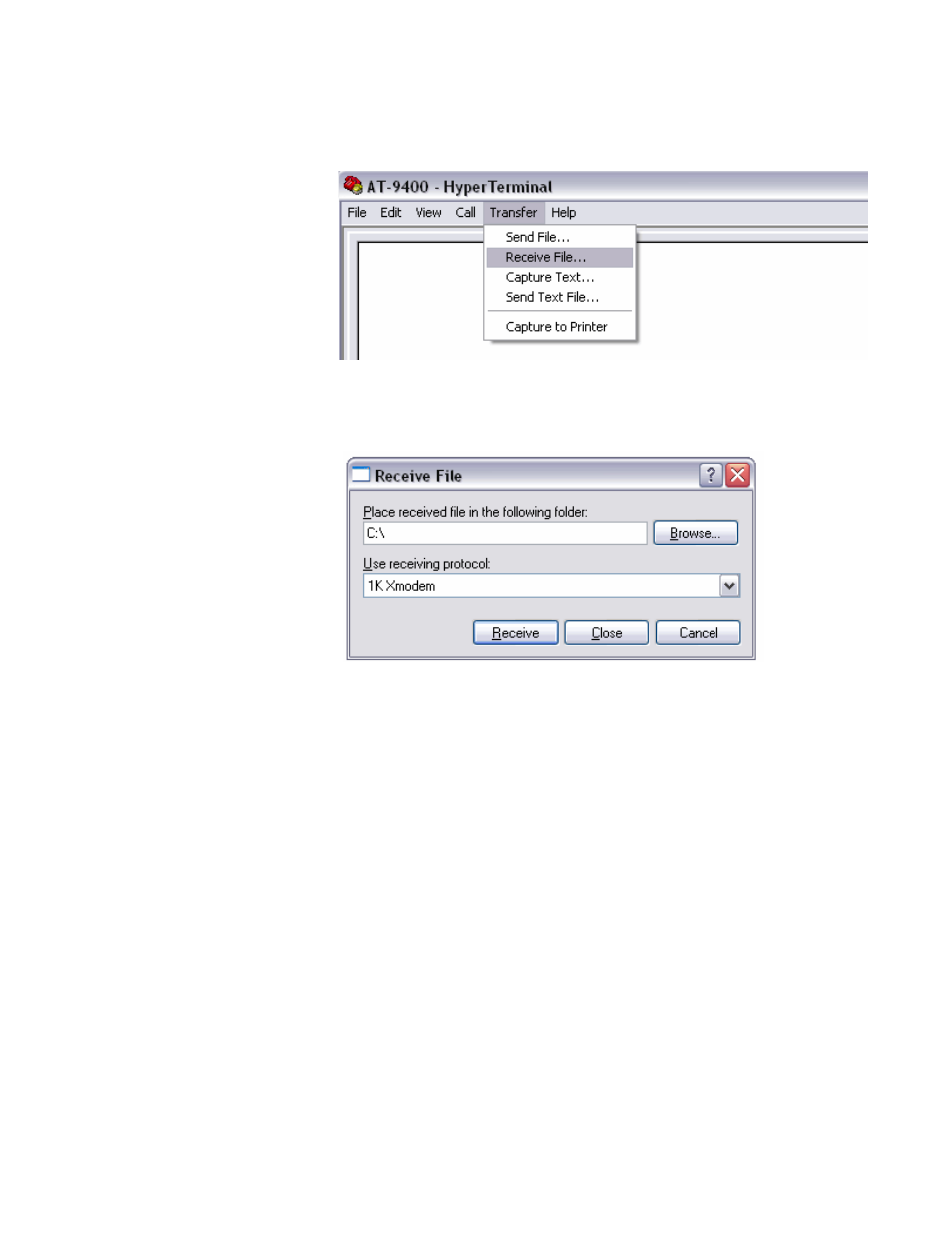

Figure 70. HyperTerminal Window
The Receive File window is shown in Figure 71.
Figure 71. Receive File Window
12. Click Browse and specify the location on your computer where you
want the system file stored.
13. Click in the Protocol field and select as the transfer protocol either
Xmodem or, for a faster download, 1K XModem.
14. Click Receive.
The switch uploads the file from the switch to your computer.
Uploading a
System File from
a Telnet
Management
Session
To upload a system file from the switch using a Telnet management
session and TFTP, perform the following procedure:
1. Establish a Telnet management session on the switch containing the
system file you want to upload to the TFTP server.
2. From the Main Menu, type 5 to select System Administration.
The System Administration menu is shown in Figure 4 on page 46.
