HP VMA SAN Gateway Installation and User Guide
•
Number of VIMMs in each state (active, spare, booting, etc.)
•
Cache activity graph (reads and writes) color-coded for each HP VMA SAN
Gateway
•
Temperatures of ambient air, controller, and VIMMs (for each HP VMA SAN
Gateway)
•
Fan status indicators
•
Estimated lifetime of flash drives
•
Status lights: Alarm, Status, and Ready
Viewing VMA Array Statuses
The Cluster Status page displays two or more VMA Array panels, which may be
expanded or collapsed in order to view or hide information about each of the VMA
Arrays in the cluster.
•
To expand a VMA Array panel and view detailed information about a specific
VMA Array, click the expand button (+) in the upper left-hand corner of the
panel.
•
To close a VMA Array panel and hide VMA Array details, click the close
button (-) in the upper left-hand corner of the panel.
Viewing VIMM Status
The Board Status panel shows a color-coded array of VIMMs with indicator boxes
for alarm status, temperature, and remaining lifetime.
To view the Board Status panel, click the Show Board Status tab below the HP
VMA SAN Gateway panel.

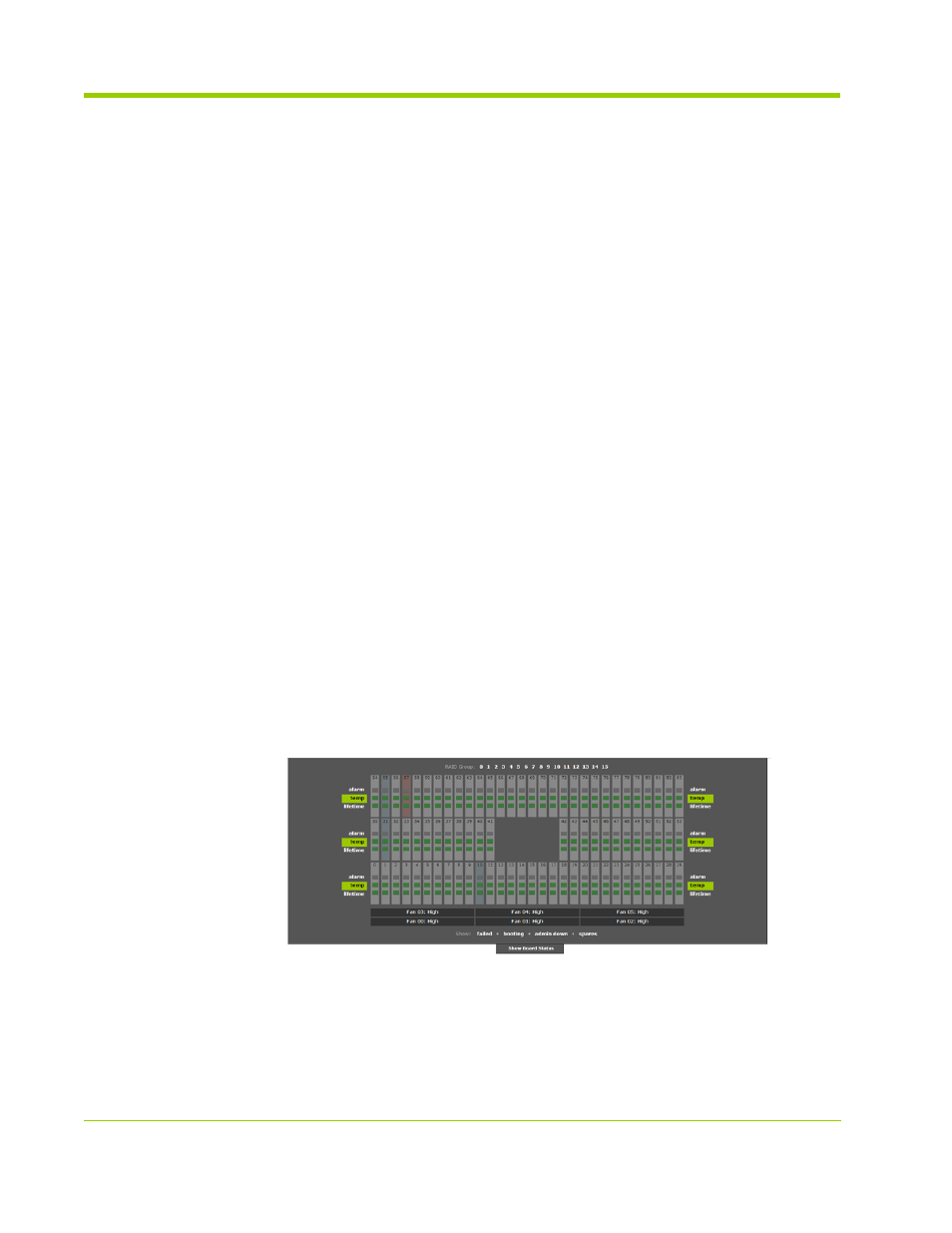

Figure B.5 Board Status Page
