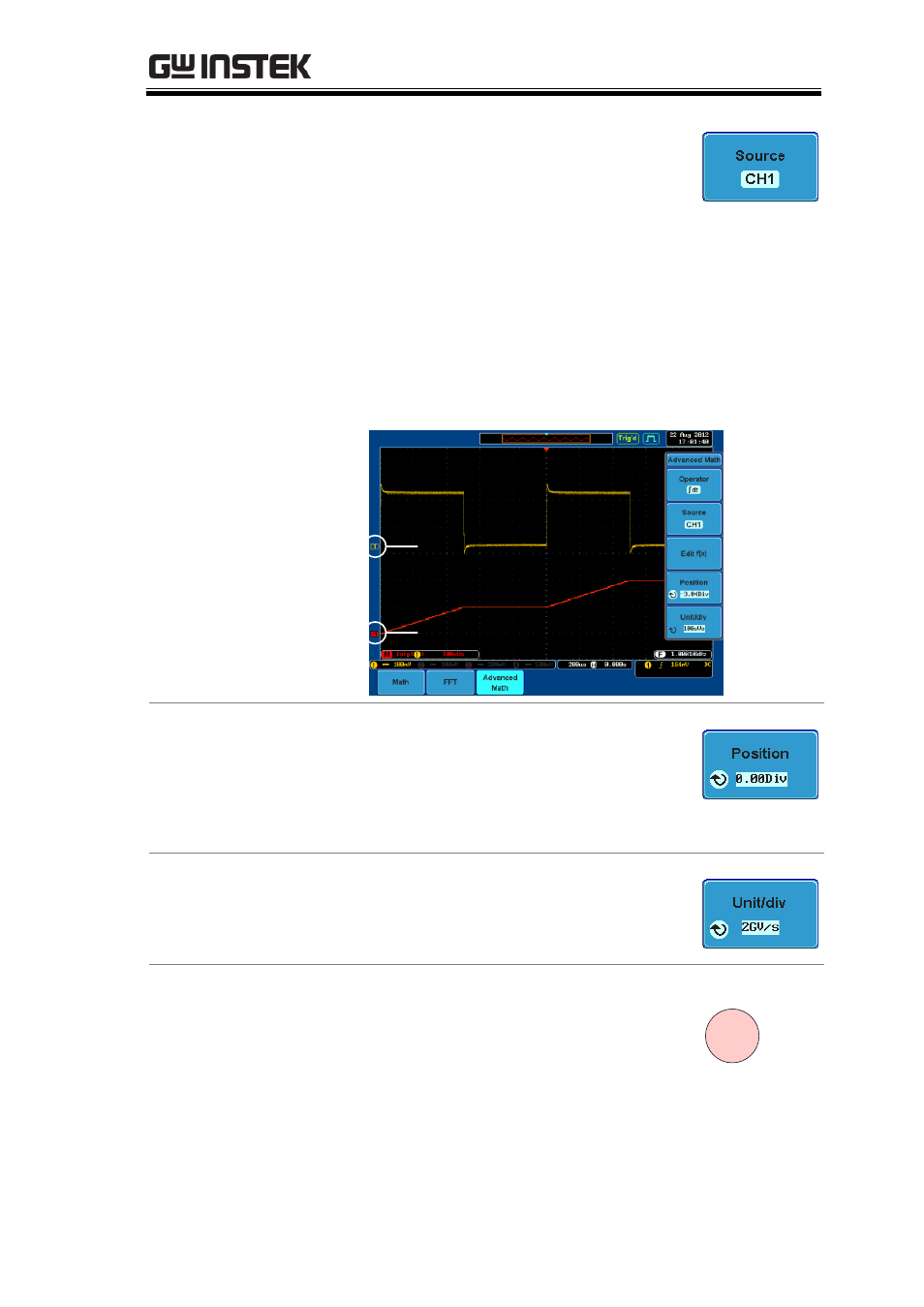

MEASUREMENT

99

4. Select the Source from the side

menu.

Range

CH1~4, Ref~4, f(x)*

*the f(x) source is set with the Edit F(x)
function, page 100.

5. The math result appears. For the

differential/integral operations, the unit/div
scale changes accordingly.

Advanced Math

Source

Position and Unit

To move the math waveform
vertically, press Position and use the
Variable knob.

Range

–12.00 Div ~ +12.00 Div

To select the vertical scale of the math
waveform, press Unit/div and use the
Variable knob.

Clear Advanced
Math

To clear the advanced math result
from the display, press the Math key
again.

M

MATH
