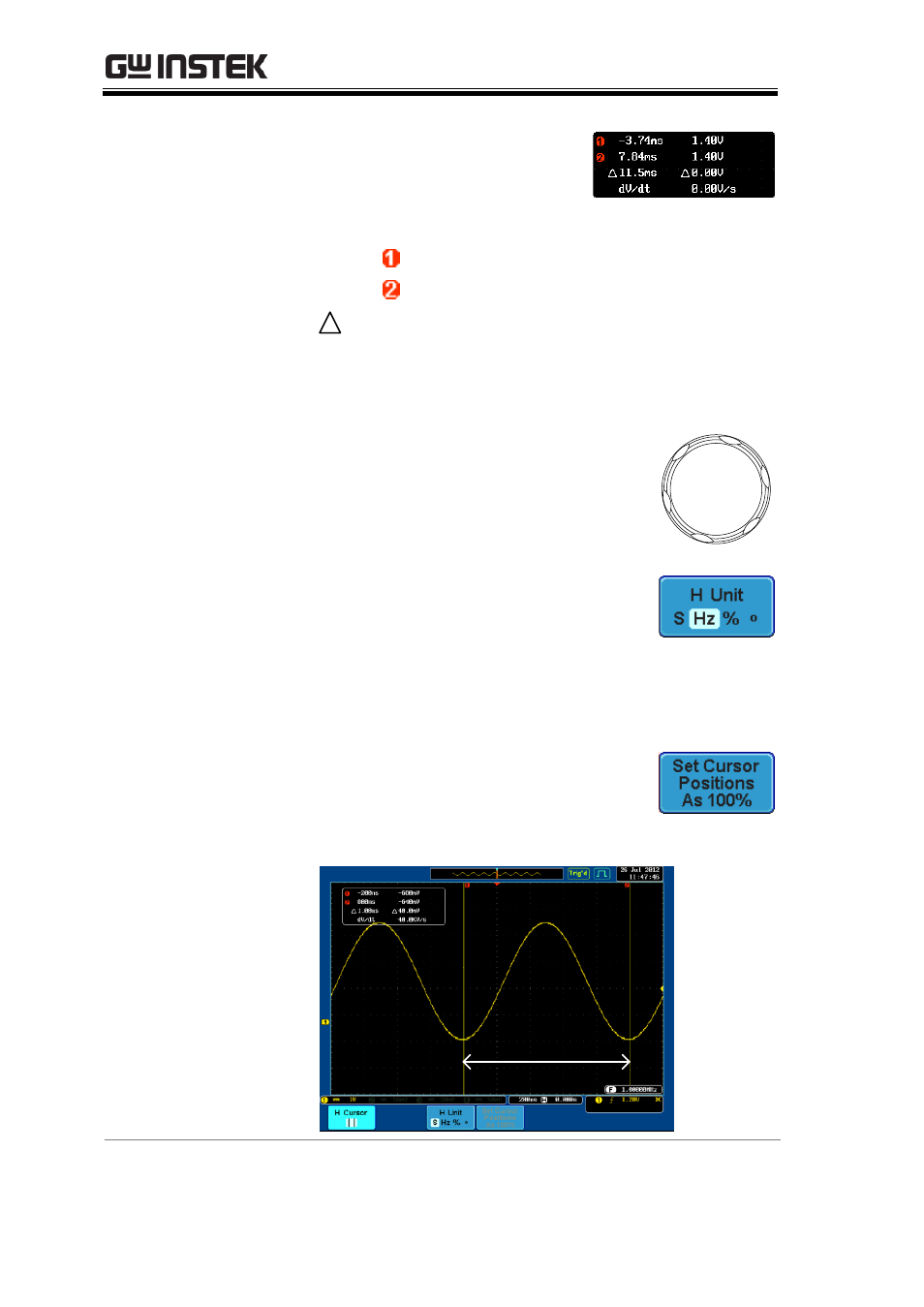

GDS-2000A Series User Manual

86

4. The cursor position

information appears on the
top left hand side of the
screen

Cursor

Hor. position, Voltage/Current

Cursor

Hor. position, Voltage/Current

Delta (difference between cursors)

dV/dt or dI/dt

5. Use the Variable knob to move the

movable cursor(s) left or right.

VARIABLE

Select Units

6. To change the units of the

horizontal position, press H Unit.

Units

S, Hz, % (ratio), ˚(phase)

Phase or Ratio
Reference

7. To set the 0% and 100% ratio or the

0˚ and 360˚ phase references for the
current cursor positions, press Set
Cursor Positions As 100%
.

Example

Horizontal

cursors
