MEASUREMENT

79

Gated mode

Some automatic measurements can be limited to a “gated” area
between cursors. Gating is useful for measuring a magnified
waveform or when using a fast time base. The Gated mode has
three possible configurations: Off (Full Record), Screen and
Between Cursors.

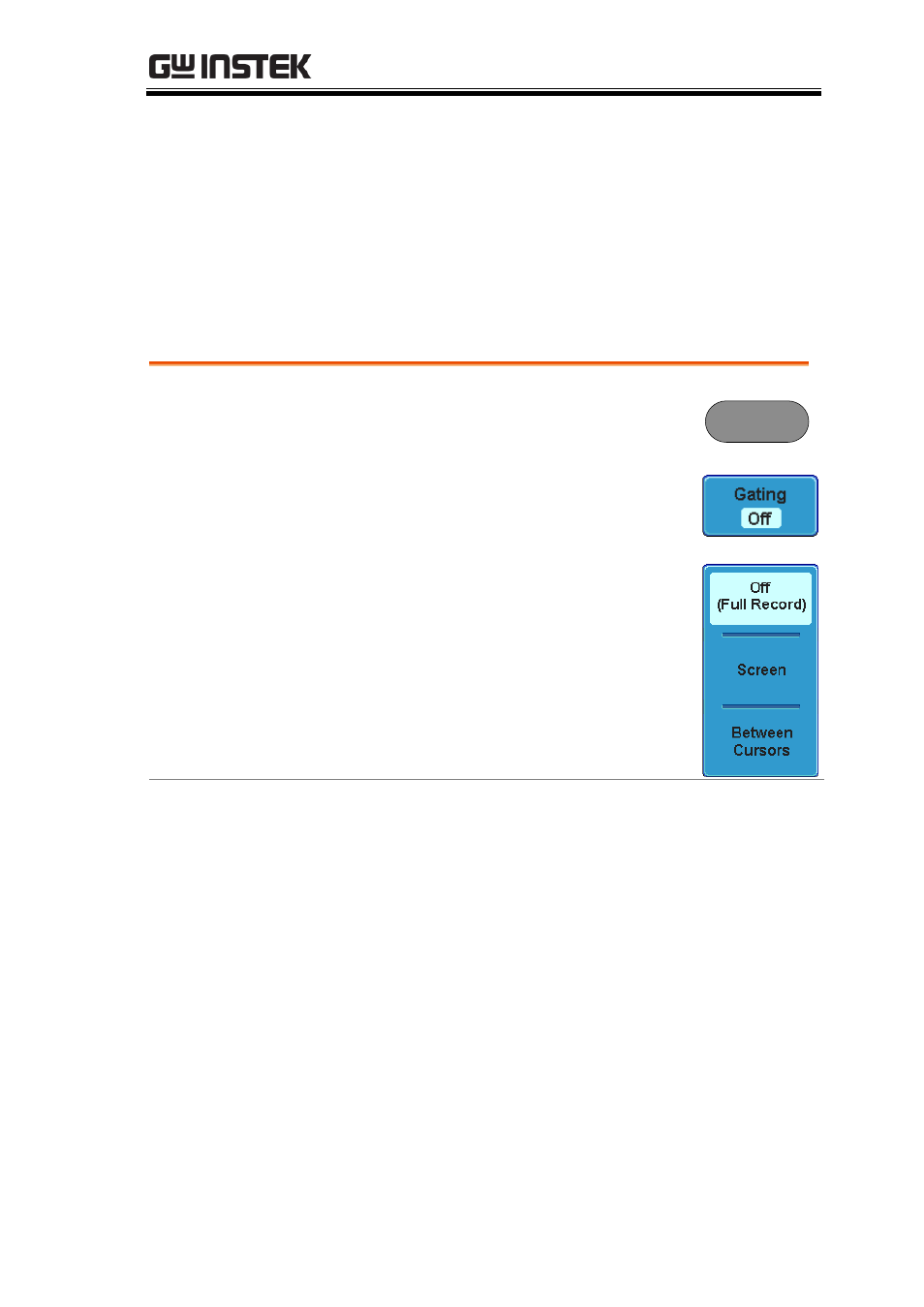

Set Gating Mode

1. Press the Measure key.

Measure

2. Press Gating from the bottom

menu.

3. Choose one of the gating modes

from the side menu: Off (full
record)
, Screen, Between Cursors

Cursors On
Screen

If Between Cursors is selected, the
cursor positions can be edited by
using the cursor menu.
