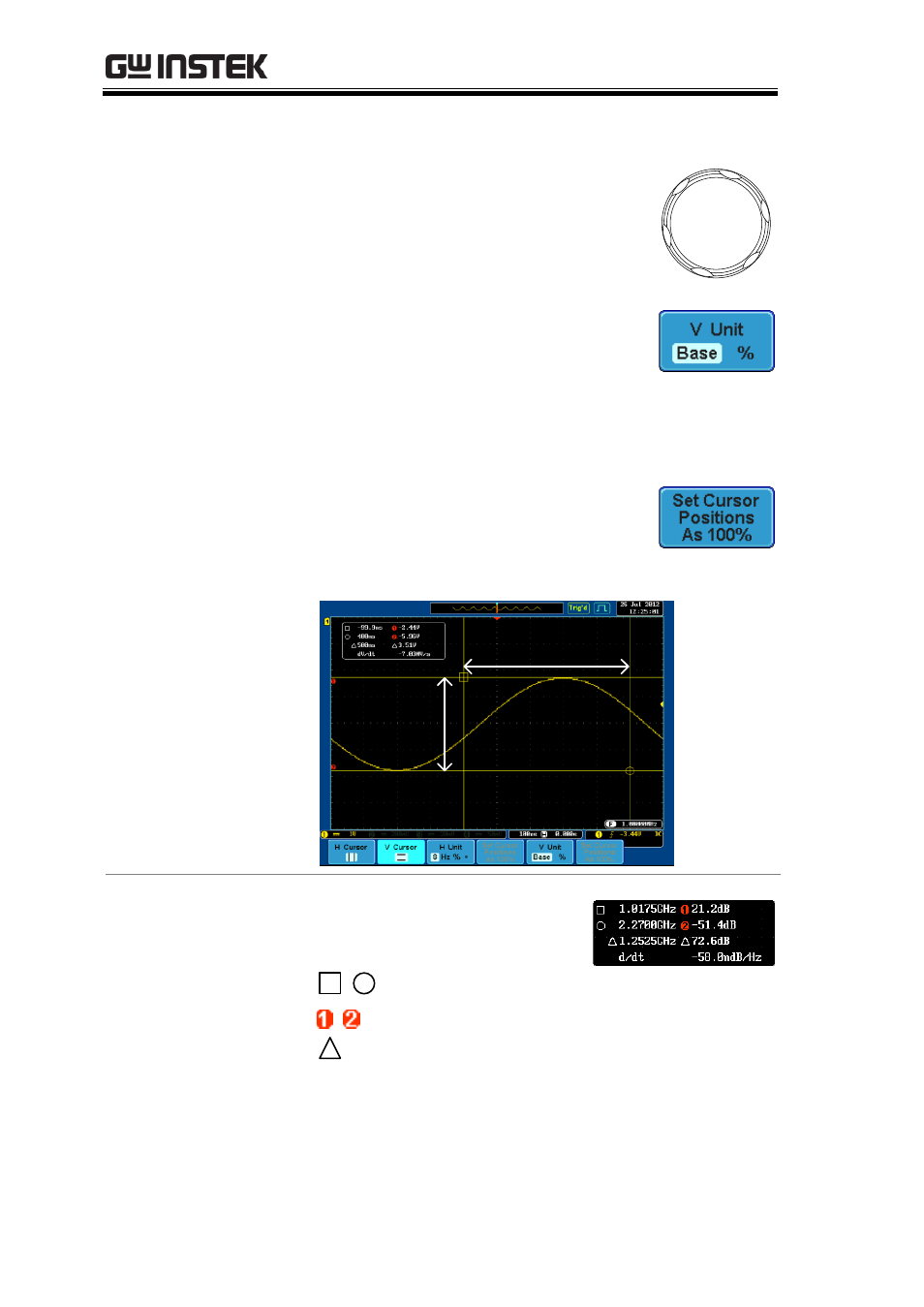

GDS-2000A Series User Manual

90

5. Use the Variable knob to move the

cursor(s) up or down.

VARIABLE

Select Units

6. To change the units of the vertical

position, press V Unit.

Units

Base (source wave units), % (ratio)

Base or Ratio
Reference

7. To set the 0% and 100% ratio

references for the current cursor
position, press Set Cursor Positions
As 100%.

Example

Horizontal

cursors

Vertical

cursors

FFT

FFT has different content. For
FFT details, see page 96.

,

Frequency/Time: cursor1, cursor2

,

dB/V: cursor1, cursor2

Delta (difference between cursors)

d/dt
