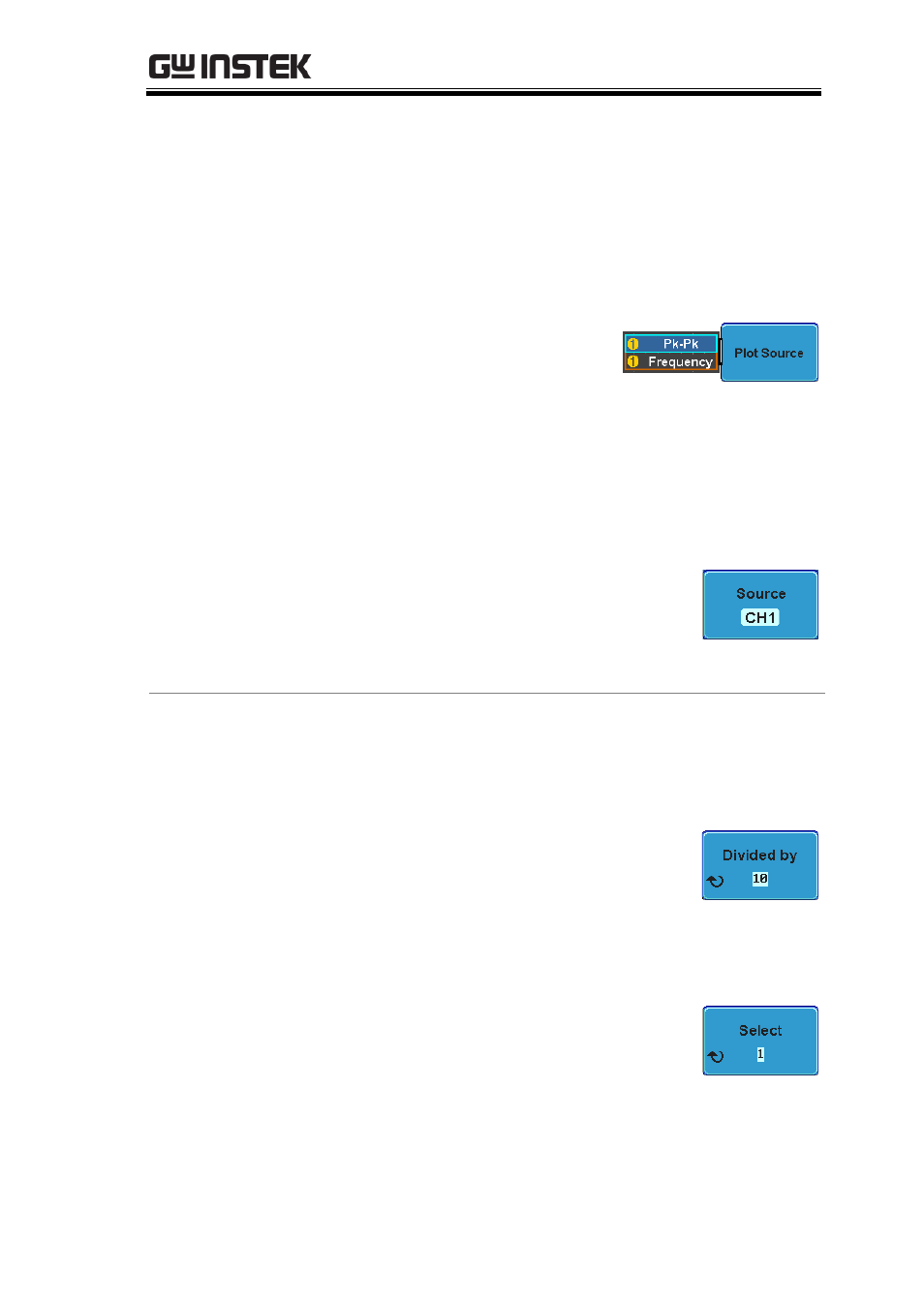

background image

CONFIGURATION

121

4. The statics table or measurement list appears on

the display.

Note that the more segments that you have, the
longer it will take to calculate the statics or list
the measurement results.

5. For statistic measurements,

press Plot Source to choose
which automatic
measurement to use for the
statistics calculations. The
statistics for only one
automatic measurement
can be viewed at a time.

6. For the measurement list, press

Source and select the source
channel for measurement.

Range

CH1 ~ CH4

Statistics Results

This function will bin the measurement results of
the selected automatic measurement into a user-
defined number of bins.

Setup

1. To select the number of bins for the

statistics, press Divided by and
select the number of bins with the
Variable knob.

Range

1~20 bins

2. Press Select and use the Variable

knob to view the measurement
results for each bin.
