GDS-2000A Series User Manual

24

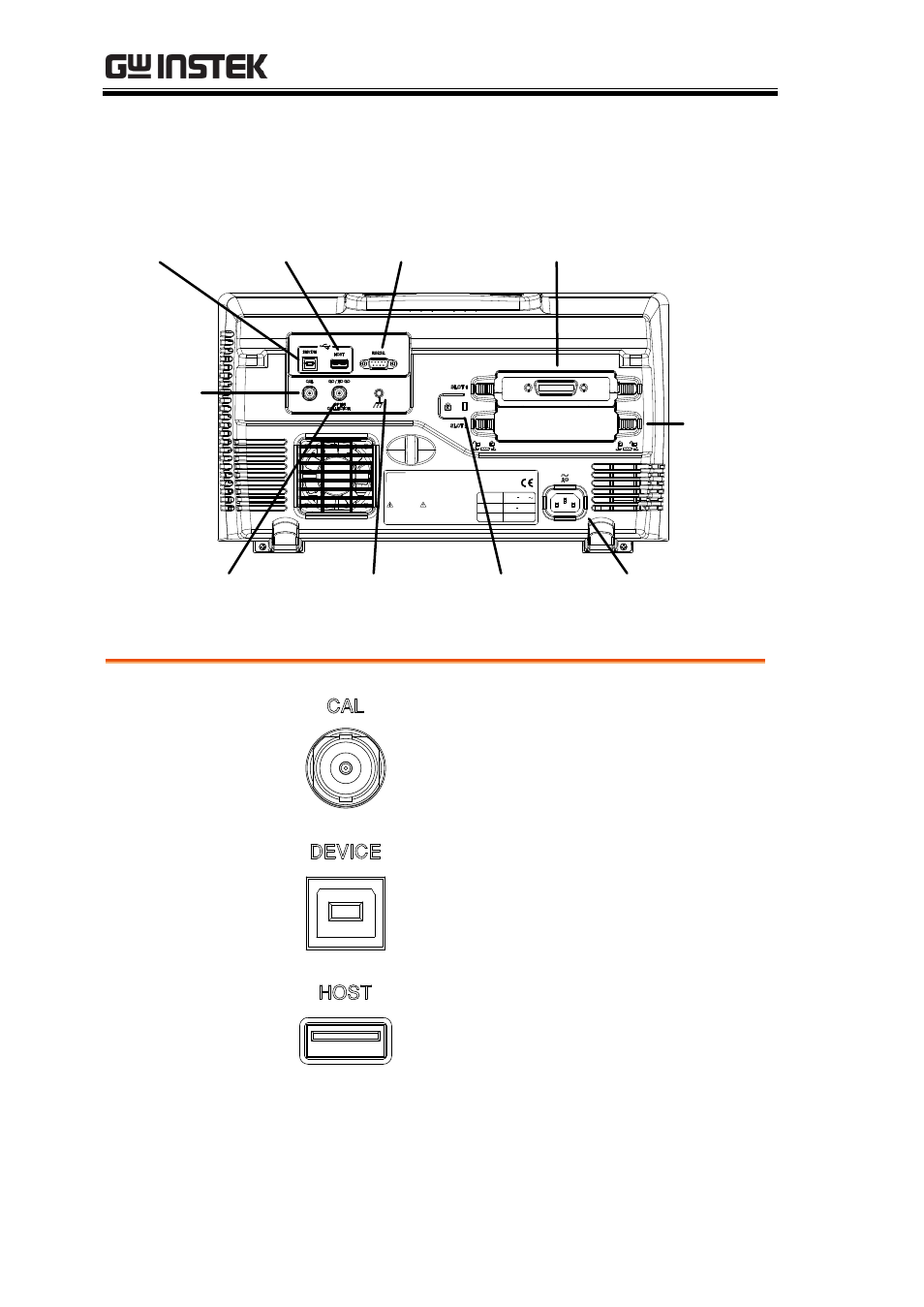

Rear Panel

LINE VOLTAGE

AC 100 240V

RANGE

FREQUENCY

50 60Hz

POWER MAX.

55W 80VA

CAUTION

TO AVOID ELECTRIC SHOCK THE POWER CORD PROTECTIVE GROUNDING

DO NOT REMOVE COVERS. REFER SERVICING TO QUALIFIED PERSONNEL.

CONDUCTOR MUST BE CONNECTED TO GROUND.

Ser. No. Label

Calibration
output

RS232
port

Module Slot 1

Module
Slot 2

Key lock

Power input
socket

Ground strap
connector

Go/No Go
output

USB Host
port

USB Device
port

Calibration
Output

Outputs the signal for vertical scale
accuracy calibration (page 243).

USB Device Port

The USB Device port is used for
remote control.

USB Host Port

The USB Host port is used to data
transfer.

Note: Only one rear panel USB port
can be used at a time. Inserting a USB
flash drive into the USB Host Port will
disable the USB Device Port, and vice
versa.
