GDS-2000A Series User Manual

96

Range

–12.00 Div ~ +12.00 Div

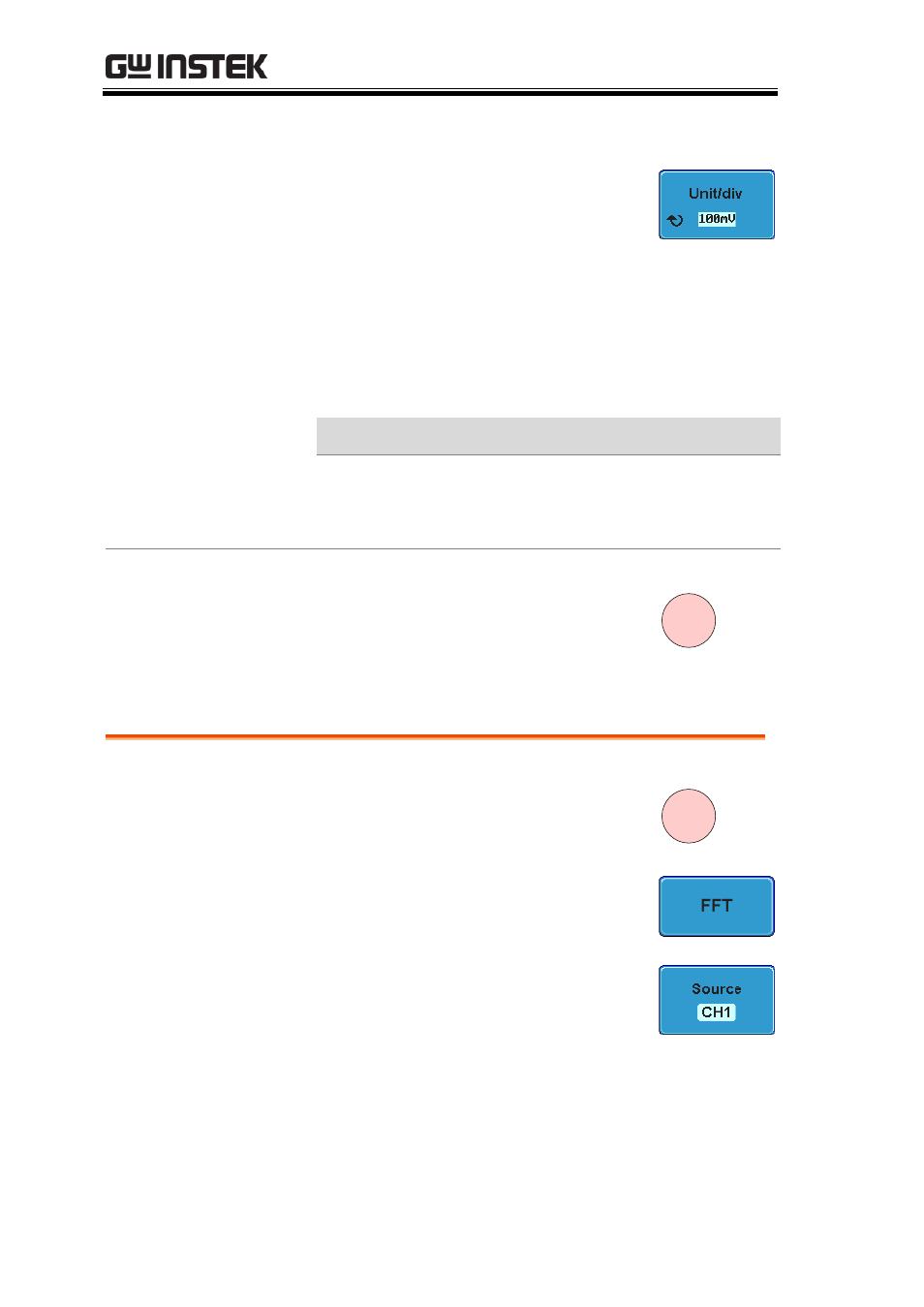

To change the unit/div settings, press
Unit/div, then use the Variable knob to
change the unit/div.

The units that are displayed depend
on which operator has been selected,
and whether the probe for the selected
channel has been set to voltage or
current.

Operator:

Unit/div:

Multiplication
Division
Addition/Subtraction

VV, AA or W
V/V, A/A
V or A

Turn Off Math

To turn off the Math result from the
display, press the Math key again.

M

MATH

FFT

Panel Operation

1. Press the Math key.

M

MATH

2. Press FFT from the bottom menu.

3. Select the Source from the side

menu.

Range

CH1~4, Ref~4, f(x)*

*the f(x) source is set in the advanced math
function, page 100.
