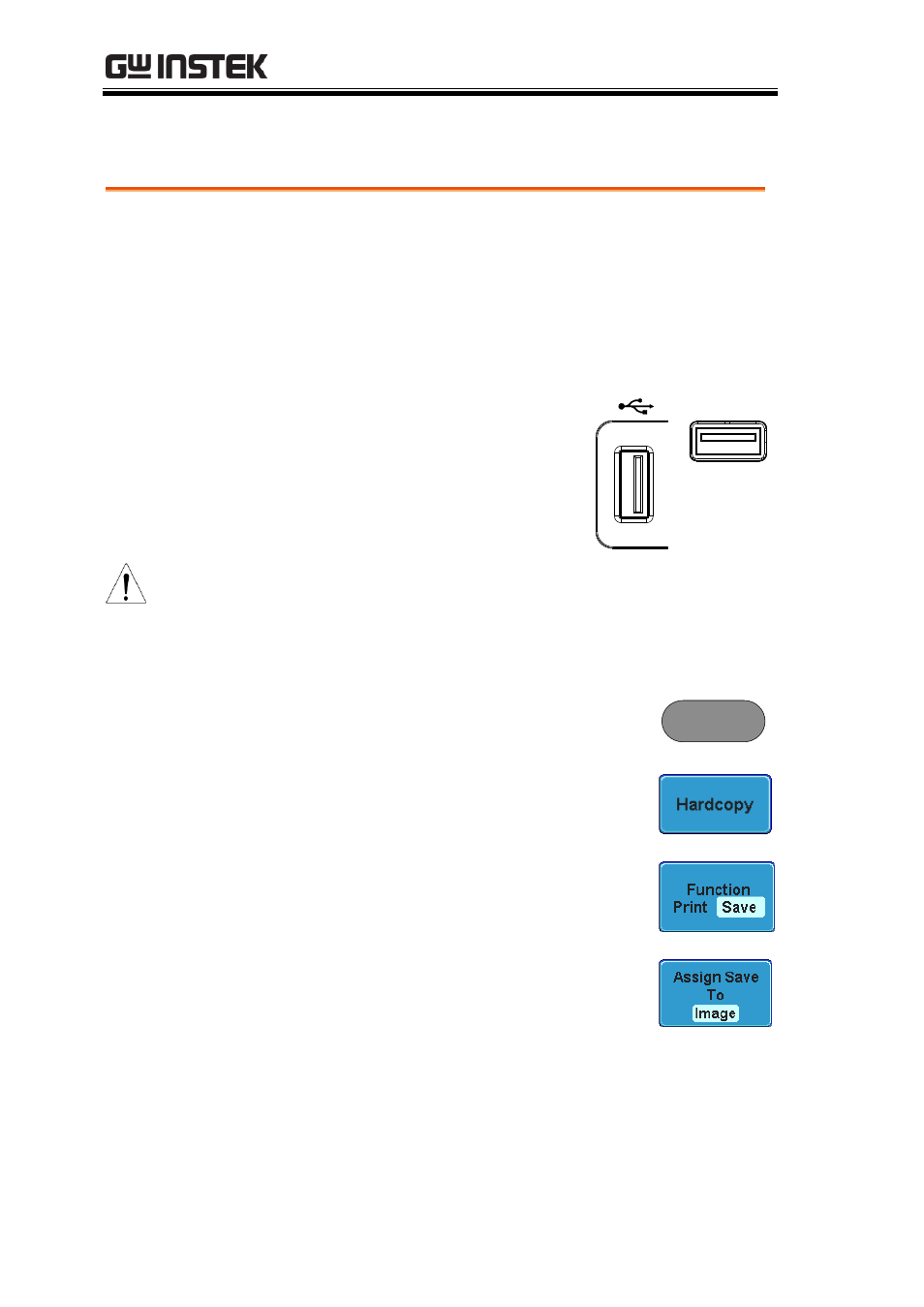

background image

GDS-2000A Series User Manual

220

Save - Hardcopy Key

Background

When the Hardcopy key is assigned to “Save”,
pressing the Hardcopy key can be used to save a
screen shot, a waveform, or the current setup,
depending on the configuration.

Panel Operation

1. If you wish to save to USB,

connect a USB drive to the
front or rear panel USB port,
otherwise the file will save
to internal memory.

Front

Rear

Host

Note

Only one host connection, front or rear, is allowed at a
time.
The USB Device port on the rear panel cannot be used
concurrently with the USB Host port on the rear panel.

2. Press the Utility key.

Utility

3. Press Hardcopy from the bottom

menu.

4. On the side menu, press Function

to select Save.

5. Press Assign Save To and select

which type of file will be saved
when the Hardcopy key is pressed.

File Type:

Image, Waveform, Setup, All
