GDS-2000A Series User Manual

130

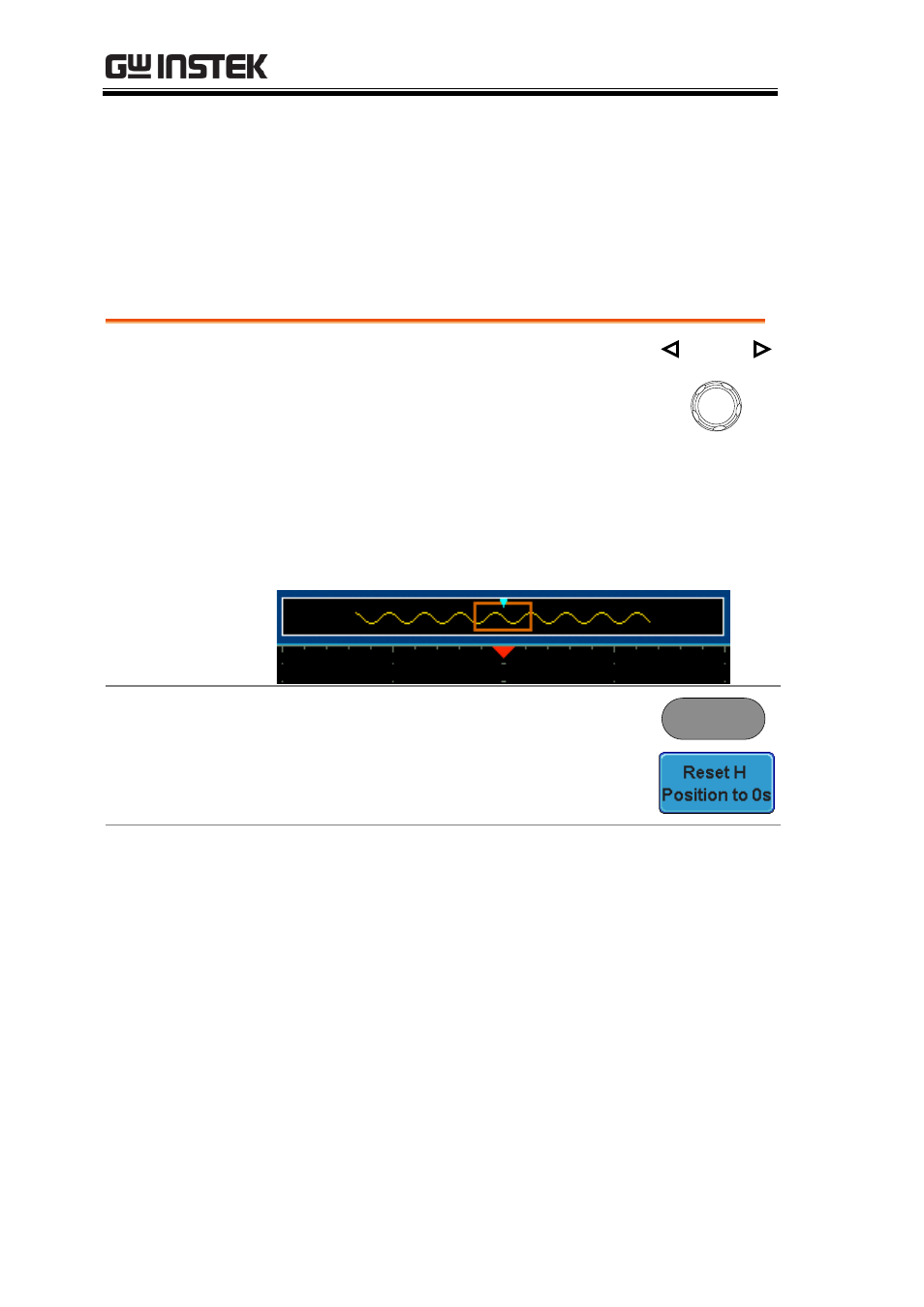

Horizontal View

This section describes how to set the horizontal scale, position, and
waveform display mode.

Move Waveform Position Horizontally

Panel Operation

The horizontal position knob moves
the waveform left/right.

POSITION

As the waveform moves, a position indicator on
the on the top of the display indicates the
horizontal position of the waveform in memory.

Reset Horizontal
Position

1. To reset the horizontal position,

press the Acquire key and then
press Reset H Position to 0s from the
bottom menu.

Acquire

Run Mode

In Run mode, the memory bar keeps its relative
position in the memory since the entire memory is
continuously captured and updated.
