CONFIGURATION

115

Note

The first time Segmented memory is turned on the
segments will automatically be run. Each segment
will be automatically captured. The progress of
capturing the segments is shown at the top of the
display.

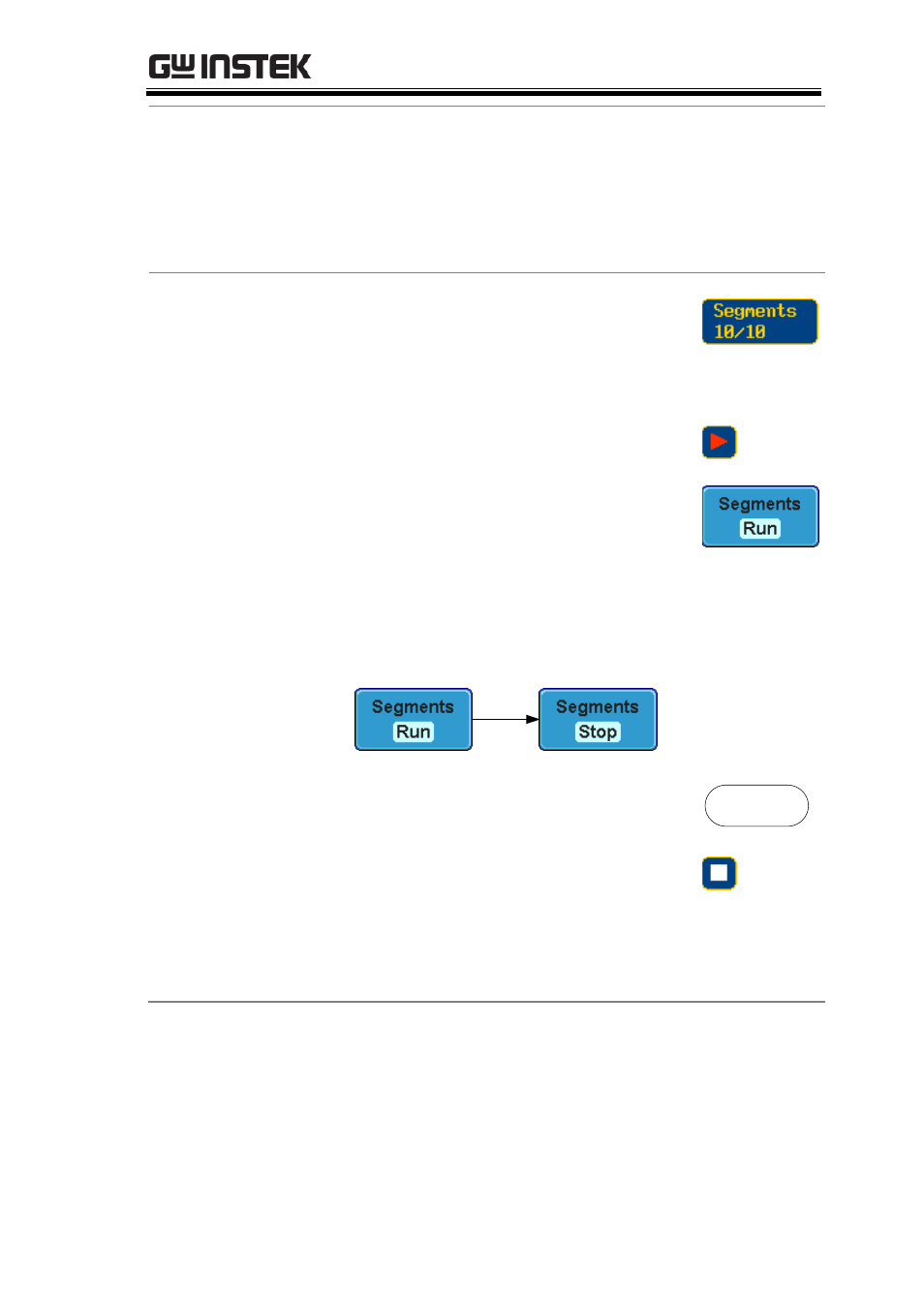

2. The scope will automatically start

acquiring segments. The progress
of the segmented memory capture
is shown in the Progress Indicator.

The Run Indicator will be shown
when in the Run mode and the
Segments icon will also indicate
that the function is in run mode.


3. When the scope has finished acquiring

segments, press Segments Run to toggle the
mode to the Segments Stop mode.

Alternatively, the Run/Stop can be
pressed.

4. The Stop Indicator will be shown

when in the Stop mode.

Run/Stop

The scope is now ready to navigate or analyze the
acquired segments.
