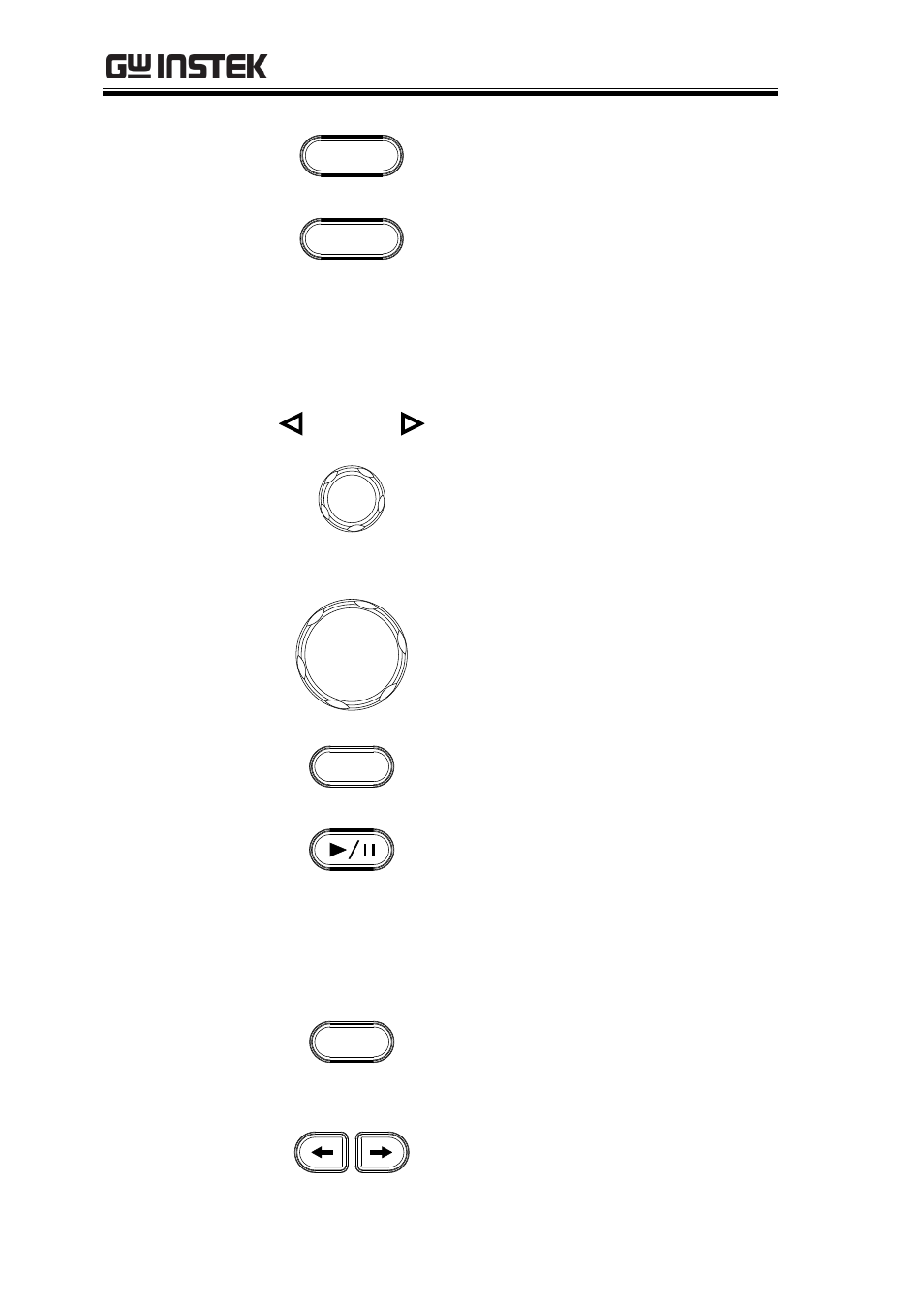

background image

GDS-2000A Series User Manual

20

Single

Single

Sets the acquisition mode to single
triggering mode.

Default Setup

Default

Resets the oscilloscope to the
default settings.

Horizontal
Controls

The horizontal controls are used to change the
position of the cursor, set the time base settings,
zoom into the waveforms and search for events*.

Horizontal
Position

POSITION

The Position knob is used to
position the waveforms
horizontally on the display screen.

TIME/DIV

TIME/DIV

The Time/Div knob is used to
change the horizontal scale.

Zoom

Zoom

Press Zoom in combination with
the horizontal Position knob.

Play/Pause

The Play/Pause key allows you to
view each search event in
succession – to effectively “play”
through each search event. It is
also used to play through a
waveform in zoom mode.

Search

Search

The Search key accesses the search
function menu to set the search
type, source and threshold.

Search Arrows

Use the arrow keys to navigate the
search events.
