GDS-2000A Series User Manual

178

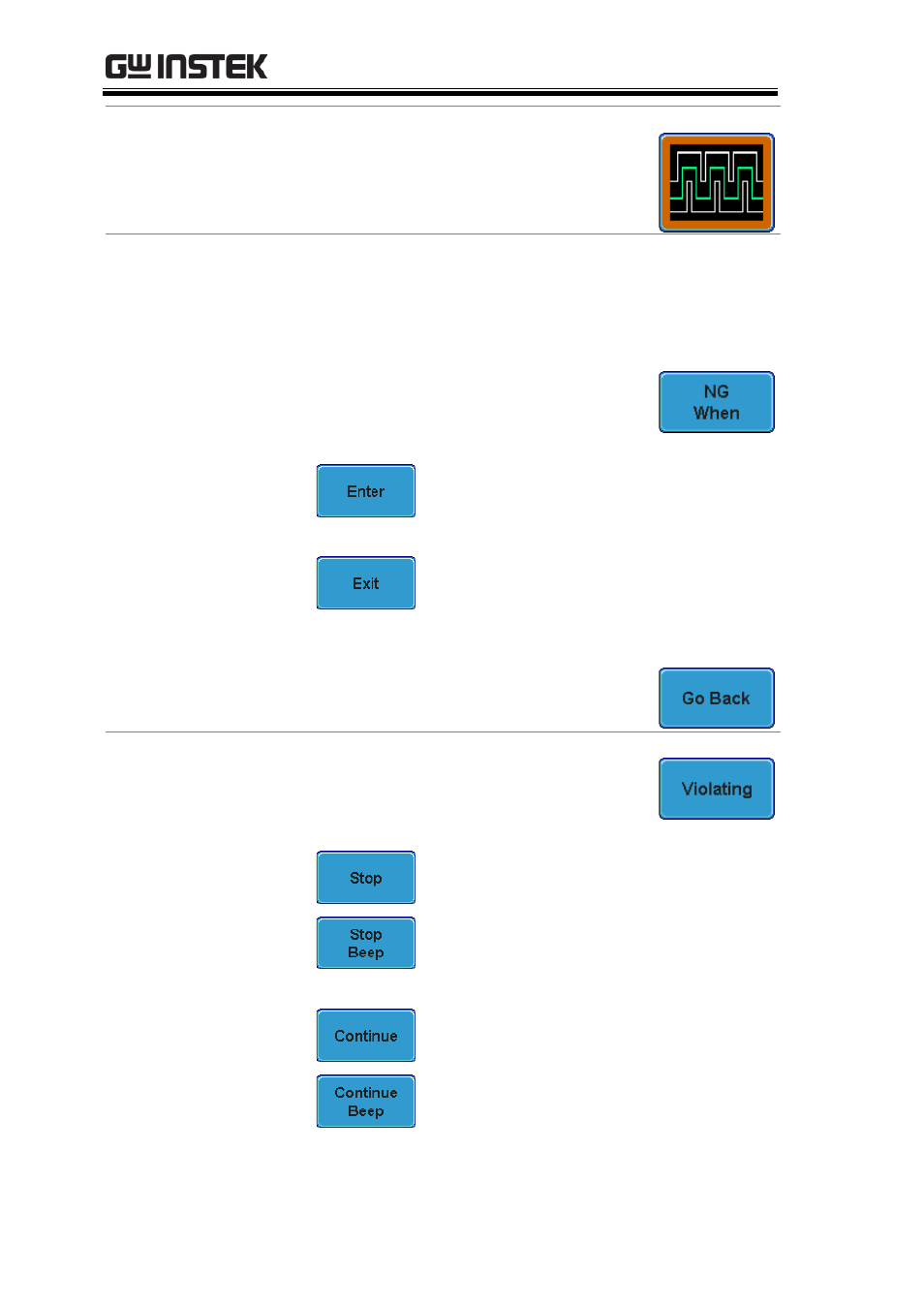

Choose the Go_NoGo application
from the APP. menu. See page 175.

Set Go-NoGo
Conditions

Select the Go-NoGo conditions (NG When) and
actions when a Go-NoGo condition has been met
(Violating).

1. Press NG When from the bottom

menu and select the NoGo
conditions:

Enters: Sets the NoGo condition to
when the input signal stays within
the limit boundary.

Exits: Sets the NoGo condition to
when the input signal exceeds the
limit boundary.

2. Press Go Back to return to the

previous menu.

Set Go-NoGo
Actions

1. Press Violating to set what action to

perform when a signal is violating
the Go-NoGo conditions.

The waveform stops when the
conditions are violated.

The waveform stops and a beep will
be output when the conditions are
violated.

Ignore violations and continue to
monitor the signal.

Output a beep when a violation
occurs, but continue to monitor the
signal.
